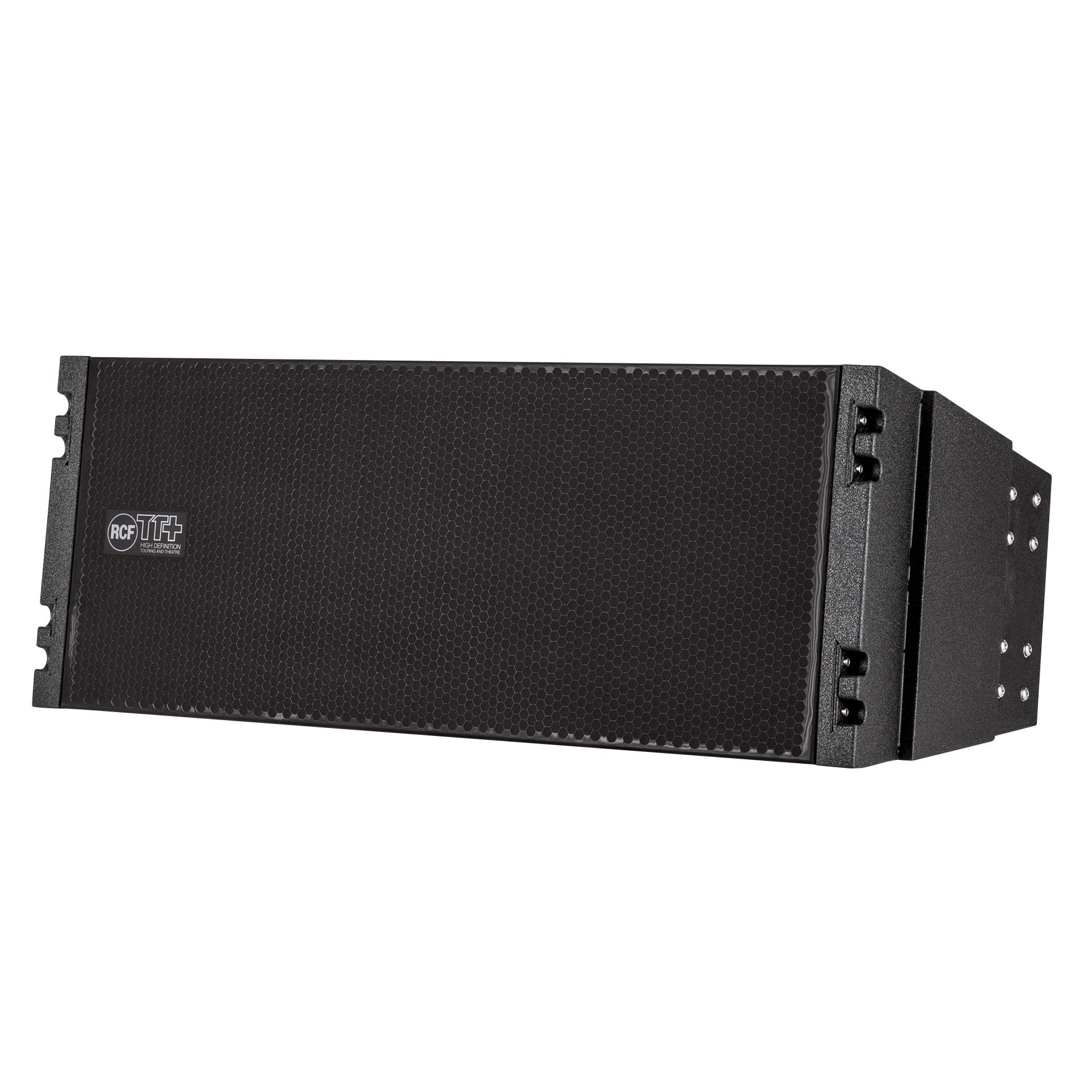

RCF TTL 33-A II WP STADIUM

ACTIVE THREE-WAY LINE ARRAY MODULE

SKU: TTL 33-A II WP STADIUM Categories: , , , , , Tags: , ,

Description

The RCF TTL 33-A II WP STADIUM is a full range, ultra-compact, wide dispersion line array module that sets a new standard in the TT+ Stadia sound reinforcement, offering substantial power and efficiency for a variety of professional outdoor applications, including stadia, sports arenas, concert halls, and other fixed venue installations. Loudspeakers are strengthened with a special waterproof film and a multi-layer coating on the grille, that is highly resistant to humidity but transparent to sound.

  • Effective 1250W switching power supply
  • 6 high-power neodymium transducers
  • Weatherproof touring-grade Baltic birch cabinet
  • RDNet compatible
  • IP 67 connectors
  • Lightweight anti-hygroscopic resin on transducers
  • Amplifier, DSP, and connections protected against humidity
  • Safe rigging and hanging
  • Real-time monitoring and control exceeding EN60849 requirements
  • Front-grille designed for outdoor applications

RCF RDNet

NETWORKED CONTROL AND MUCH MORE
RDNet is a robust management network and control platform for small, medium, and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well), and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

SPECIFICATIONS

Acoustical specifications
FREQUENCY RESPONSE:
60 Hz ÷ 20000 Hz
MAX SPL @ 1M:
135 dB
HORIZONTAL COVERAGE ANGLE:
100°
VERTICAL COVERAGE ANGLE:
15°
Transducers
COMPRESSION DRIVER:
3 x 1.0” neo, 1.5” v.c
MIDRANGE:
8” neo, 2.0” v.c
WOOFER:
2 x 8” neo, 2.5” v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, RDNet Ethercon
OUTPUT CONNECTORS:
XLR, RDNet Ethercon
INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
400 Hz – 1800 Hz
PROTECTIONS:
Thermal, HF
LIMITER:
Fast Limiter
CONTROLS:
HF Correction, cluster size, HPF
RDNET:
Yes
Power section
TOTAL POWER:
2500 W Peak, 1250 W RMS
HIGH FREQUENCIES:
500 W Peak, 250 W RMS
MID FREQUENCIES:
1000 W Peak, 500 W RMS
LOW FREQUENCIES:
1000 W Peak, 500 W RMS
COOLING:
Convection/Forced
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
Array side fittings screws (8 per side rear)
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
300 mm / 11.81 inches
WIDTH:
760 mm / 29.92 inches
DEPTH:
450 mm / 17.72 inches
WEIGHT:
33 kg / 72.75 lbs
Shipping information
PACKAGE HEIGHT:
395 mm / 15.55 inches
PACKAGE WIDTH:
875 mm / 34.45 inches
PACKAGE DEPTH:
545 mm / 21.46 inches
PACKAGE WEIGHT:
37 kg / 81.57 lbs
