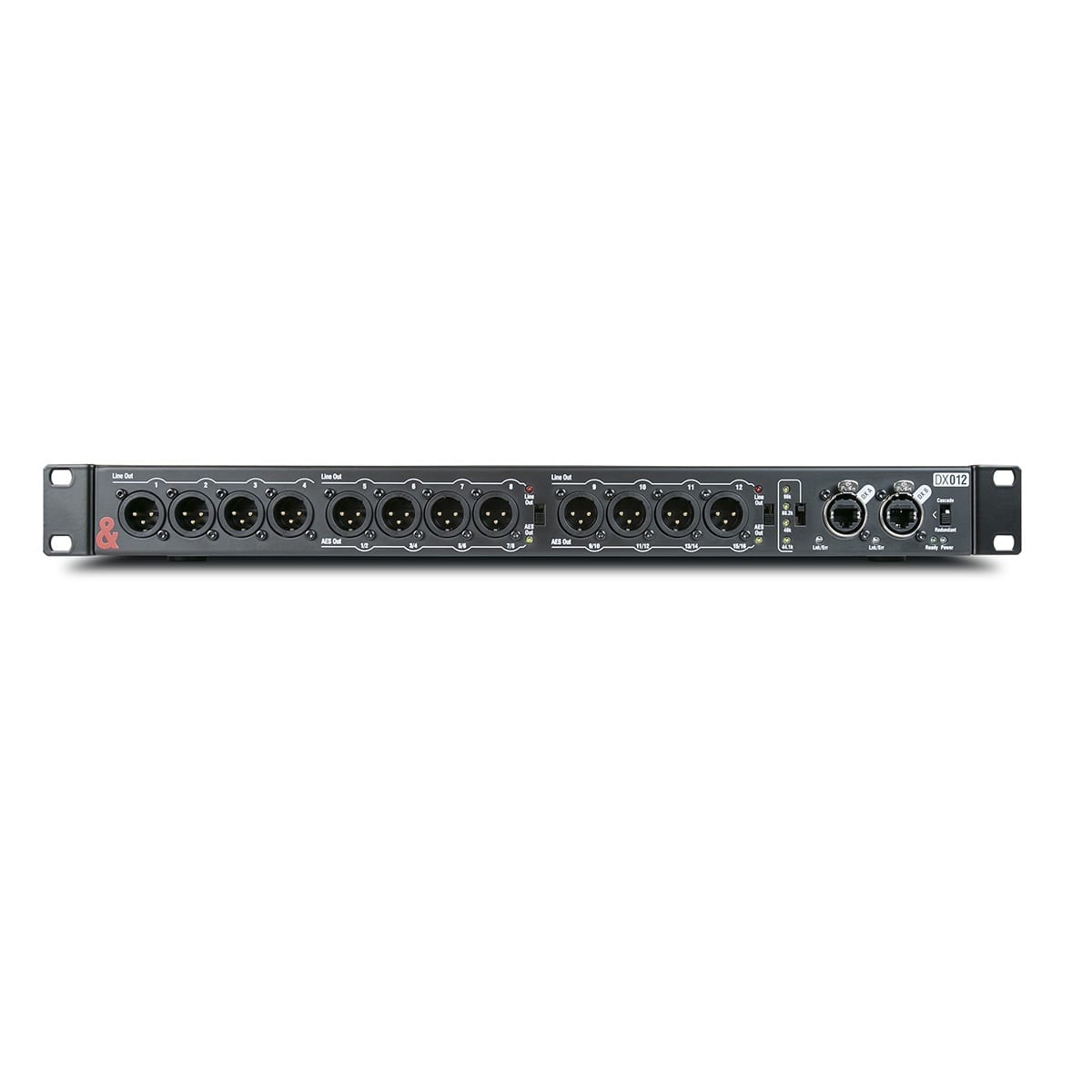

Allen & Heath DX012

12out XLR Output Audio Expander with AES functionality, switchable 44.1kHz / 48kHz /88.2kHz / 96kHz, AES out, configurable as 12 analog / 8 analog + 4 stereo AES / 4 analog + 8 stereo AES, 96kHz


12 XLR Output Analogue/AES Portable DX Expander

Need to get more out of your system? The Allen & Heath DX012 provides remote output expansion for SQ, Avantis, and dLive mixers, and for the AHM-64 audio matrix processor.

Perfect for feeding IEM systems and amplifier racks, DX012 offers both analog and AES digital output options in a compact 1U form factor.

Each DX012 provides 12 XLR outputs, configurable as:

  • 12 analog line outputs
  • 8 analog line outputs + 4 stereo AES outputs
  • 4 analog line outputs + 8 stereo AES outputs

The DX012 connects via a single Cat5e cable to the dLive Surface, dLive MixRack, AHM-64 matrix processor, Avantis mixer, SQ mixer, or upstream DX expander via a secure EtherCon port.

A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX expander for additional remote I/O.


  • Compatible with SQ, Avantis, and dLive systems
  • 12 XLR Outputs:
    • 1-4 Analogue Line Out
    • 5-8 Analogue Line out or AES Digital out (switchable)
    • 9-12 Analogue Line out or AES Digital out (switchable)
  • AES outputs are globally switchable between:
    • 44.1kHz
    • 48kHz
    • 88.2kHz
    • 96kHz
  • Cascade mode allows daisy-chaining of up to 2 DX Expanders on each DX port
  • Redundant DX connection to compatible hardware
  • Multiple DX012 can be added to a system:
    • Up to 16 DX012 units can be added to a SQ system
    • Up to 16 DX012 units can be added to an Avantis system
    • Up to 46 DX012 units can be added to a dLive S Class system
    • Up to 22 DX012 units can be added to a dLive C Class system
    • Up to 8 DX012 units can be added to an AHM-64 system
  • Rack-mounted (1u) or shelf/floor operation
  • Plug and Play – no IP addressing required
  • Compatible with CAT5e (or higher) cables of up to 100m
  • Locking EtherCon ports
