Description
A distinct acoustic response.
Features
Type:
Acoustic Absorber
Absorption range:
315 Hz to 3150 Hz
Acoustic Class:
C | (αw) = 0,75
Purpose
– Sweet spot sound field distribution
– RT reduction
The latest addition to the Pro Audio and studio range.

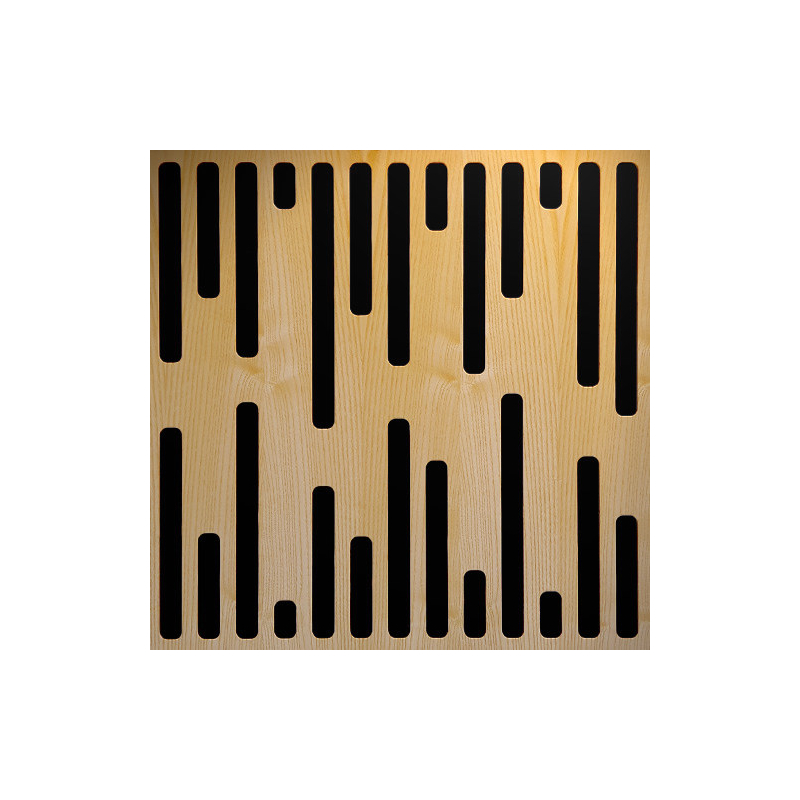

Orion brings the distinct design of our flagship Logan diffuser to new horizons. An array of Orion absorbers create areas with a distinct acoustic response, each calibrated to work at a certain frequency range.
Using these Helmholtz-style absorption techniques boosts mid-low and mid rage absorption, whilst the open areas of the panel are enough to guarantee high-frequency absorption. Orion is a great technical product, designed for the studio world, where each surface is critical – making sure that you get the best out of your studio. Orion’s performance begins at 315 Hz and offers effective and even absorption up to 3150 Hz.
– Orion is an impressive combination of unique Artnovion acoustic design with high performance acoustical cores.
– Orion absorber panels can be effortlessly installed on walls or ceilings.
Unique Artnovion acoustic design with high performance acoustical cores.
Recommended for
– Control Room
– Recording Room
– Home Studio
– Broadcast Studio
– Vocal Booth
– Drum Room
FG | Furniture GradeMaterials:
– Natural wood | Lacquered HMDF
– Acoustic fabric
– Marine grade plywood structural frame
– Calibrated cell acoustic foam (Rear panels’ air cavities)Dimensions:
Orion – Absorber | 595x595x55mm
– Equipped with four M6 Screw Thread receiver
Orion Doble – Absorber | 595x1190x55mm
– Equipped with six M6 Screw Thread receiver
Purpose
– Sweet spot sound field distribution
– RT reduction
Recommended for
– Control Room
– Recording Room
– Home Studio
– Broadcast Studio
– Vocal Booth
– Drum Room
Type:
Acoustic Absorber
Absorption range: 315 Hz to 3150 Hz
Acoustic Class: C | (αw) = 0,75
Available fire rate:
FG | Furniture Grade
Materials:
– Natural wood | Lacquered HMDF
– Acoustic fabric
– Marine grade plywood structural frame
– Calibrated cell acoustic foam (Rear panels’ air cavities)
Four M6 Screw Thread receiver included on each panel.
Disclaimer:
When using FixArt Tube on the ceiling, it is obligatory to use the FixArt Lock security device. This system guarantees a safe and precise installation.
Technical File
INSTALLATION GUIDE
Dimensions:
FG – LW | 595x595x55mm
FG – NW | 595x595x55mm
Fixing Systems
Wall & Ceiling
+ FixArt – Tube
+ FixArt Clip
+ GlueArt 2.0
+ Instant Fix Kit
Ceiling
+ FixArt Cloud
Mobile
+ Kit Mobile Wall
Add-ons
+ FixArt Connect
+ FixArt Tube Lock
+ M6 Screw Thread receiver – Add-on
+ Fabric side cover kit
Reviews
There are no reviews yet.
