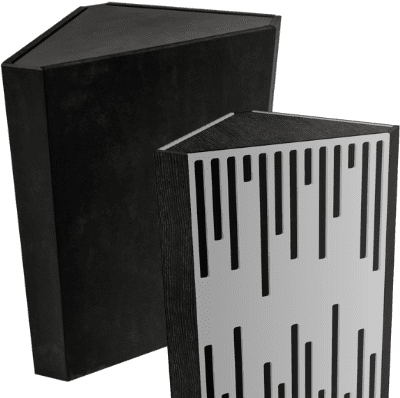

Artnovion Acoustics Sub Trap | Range

Description

The Sub Trap

Low frequency control is the foundation of acoustic treatment. Strong modal frequencies can be the make-or-break of many rooms, often uncontrollable without altering room structure.

Enter the Sub Trap – a new approach on low frequency control a fine-tuneable device with unprecedented performance. The Sub Trap is a new category of acoustic treatment, targetting the sub-bass frequency range. It boasts the highest absorption coefficient per volume on the market.
It employs Artnovion’s latest membrane technology a symbiosis of precision engineering and material science – creating a device that can be precisely calibrate to work at the exact resonant frequency of a space.

The resonant frequency can be fine-tuned by strategically placing calibrated tuning weights to the membrane.

Features

Type:
Tuneable Pistonic Diaphragmatic Membrane Technology

Tuneable absorption range:
40 to 60 Hz
– Hz-by-Hz peak absorption tuning
– Triple Pressure acoustic core + Velocity core
– High Efficiency Bass Trap

Purpose

– Room mode control
– Bass ratio control
– Low frequency RT reduction
– Improving low frequency response
– Reducing low frequency time decay

Sub Trap – A new category of acoustic treatment.

Recommended for

– Control Room
– Recording Room
– Home Studio
– Broadcast Studio

– Production Room

The Sub Trap is composed of 4 independent cavities – 3 sealed volumed equipped with independent, tuneable diaphragmatic membranes (TPDA), and an additional acoustic core packed with a high performance porous absorber (V.A.B.T.). This configuration is designed to bring you the best performance possible, with pressure and velocity sensitive cores exposed to the correct modal areas.
Issues under 60Hz are common, and can be tricky to solve. Usually structural alterations – such as lowering ceilings, or dedicating huge portions of the room to bass trapping are required. Here enters the Sub Trap, Artnovion’s technology gives you the chance to keep your studio as it is – and tune it to exactly what you need – with a panel that attenuate room modes from as low as 40Hz.

The Sub Trap takes a new approach on absorption, using a new membrane technology akin to a speaker cone, suspended a calibrated mass on an elastic surround – allowing for a much superior – and controlled – performance. A further feature is the possibility to precisely tune the membrane to resonate at your desired frequency by simply adding or removing mass from the membrane.

Tuneable Pistonic Diaphragmatic Membrane Technology (TPDA)

The design of these acoustic cores creates a trap with unprecedented performance and unique calibration – Absorbing more, and starting at a lower frequency, than anything else on the market. And that isn’t all – the Sub Trap has 3 of them.
The Sub Trap can either be installed in corners, or feature as a stand-alone unit. The exterior of this colossal panel is clad in exquisite hand-crafted wooden or Fabric grills, available in select finishes.

For more information on TPDA technology, check out our white paper below.

Ulysses design option:
– Acoustic fabric
– Marine grade plywood structural frame
– Calibrated cell acoustic foam
– 3 tuneable diaphragmatic membranes (TPDA)
– high performance porous absorber core (VABT)

Orion design option:
– Natural wood | Lacquered HMDF
– Marine grade plywood structural frame
– Calibrated cell acoustic foam
– 3 tuneable diaphragmatic membranes (TPDA)
– high performance porous absorber core (VABT)

Performance – Use the Sub Trap performance chart to estimate the number of units required to achieve different dB reduction levels in certain room sizes.

Efficiency – The positioning of Sub Trap units relative to the mode shapes extremely important.

For more information on TPDA technology, check out our white paper – Link

New fine-tuning possibilities. Outstanding tuneable performance
