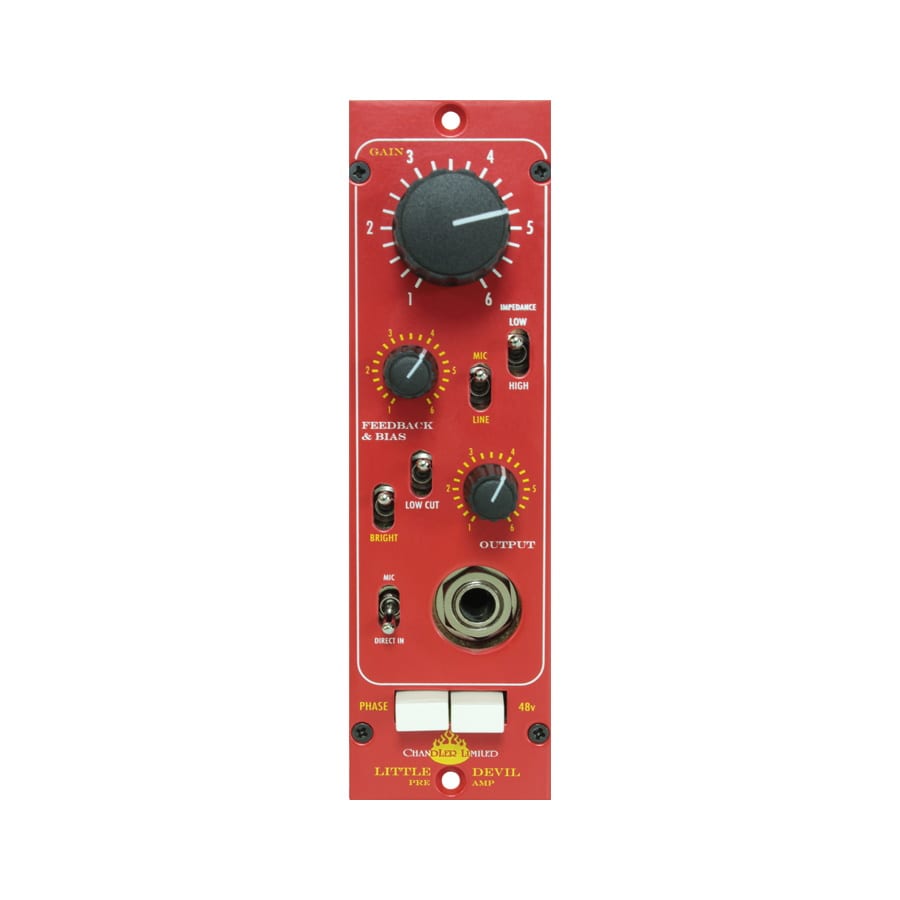

CHANDLER LIMITED furiously enters the 500 race with its new line of 500 Series Modules for your favorite lunch box! Using all discrete circuits that combine Chandler’s best designs with the hottest designs from the past, transformer balanced everything, and the American handmade quality you expect from Chandler, the 500 Series Modules will take your lunchbox or rack system to the next level!

The Class A gain stage sounds like no other design we’ve done. It’s big, yet open and full of life. Just about any parameter of the sound is changeable including the ability to change both the Feedback and Bias of the amplifier. The Feedback control increases harmonics thousands of times over the range of the control. The nature of clipping and distortion also changes and ranges from soft Class A clipping to super soft gushy tube type. The sounds range from a very colored and “over biased” tone to a gently colored and “in your face” tone.

Other features of the Little Devil Pre include High and Low input impedance; transformer balanced line in for using the Devil as a color box on mixes or tracks; low cut; bright switch and more! This unit has no power-up issues with lunchboxes and rack systems.

All Chandler 500 series units have now been tested and proven to have no power issues in the following racks:  API 500V 10-slot with L200 PSU; API 500-6B Lunchbox; API 500-6B HC “new version” Lunchbox; BAE 11-slot with power one supply; BAE 6-slot portable with power one supply; BAE 6-slot with Avedis designed supply; A-Designs 2-slot; Purple Sweet 10; and Empirical Labs 2-slot.

SPECIFICATIONS

FORMAT: 500 Series

CHANNELS: Mono

CIRCUIT: Class A, Discrete, Transistor

GAIN: max 66.5db

CONNECTIONS
I/O: 500 Series Enclosure
Mic Input, Transformer Balanced, Input Impedance: 300 Ohm or 1200 Ohm
Line input, Transformer Balanced, Input Impedance: 10k
DI: 1/4″ Unbalanced

PHANTOM POWER: +48v
