Description

Continuing in the rich tradition of innovation at EMI, dating back to the early 1930s with Alan Blumlein, the father of ‘Stereo’, the company’s first coil microphones, velocity ‘ribbon’ mics, and the “Blumlein pair” technique, Chandler Limited and Abbey Road Studios introduce the first new EMI badged microphone in over a half century, the Chandler Limited REDD Microphone.

Designed by Chandler Limited Founder and Chief Designer, Wade Goeke, the patented REDD Microphone represents a shift in traditional microphone design, bringing together historic circuitry and the heralded EMI REDD.47 preamplifier sound in a new and unique way.

Visually, the aesthetic is unmistakably classic, an ode to a gilded age of audio; however, the REDD Microphone is not a U-Type clone or derivative of any other microphone.

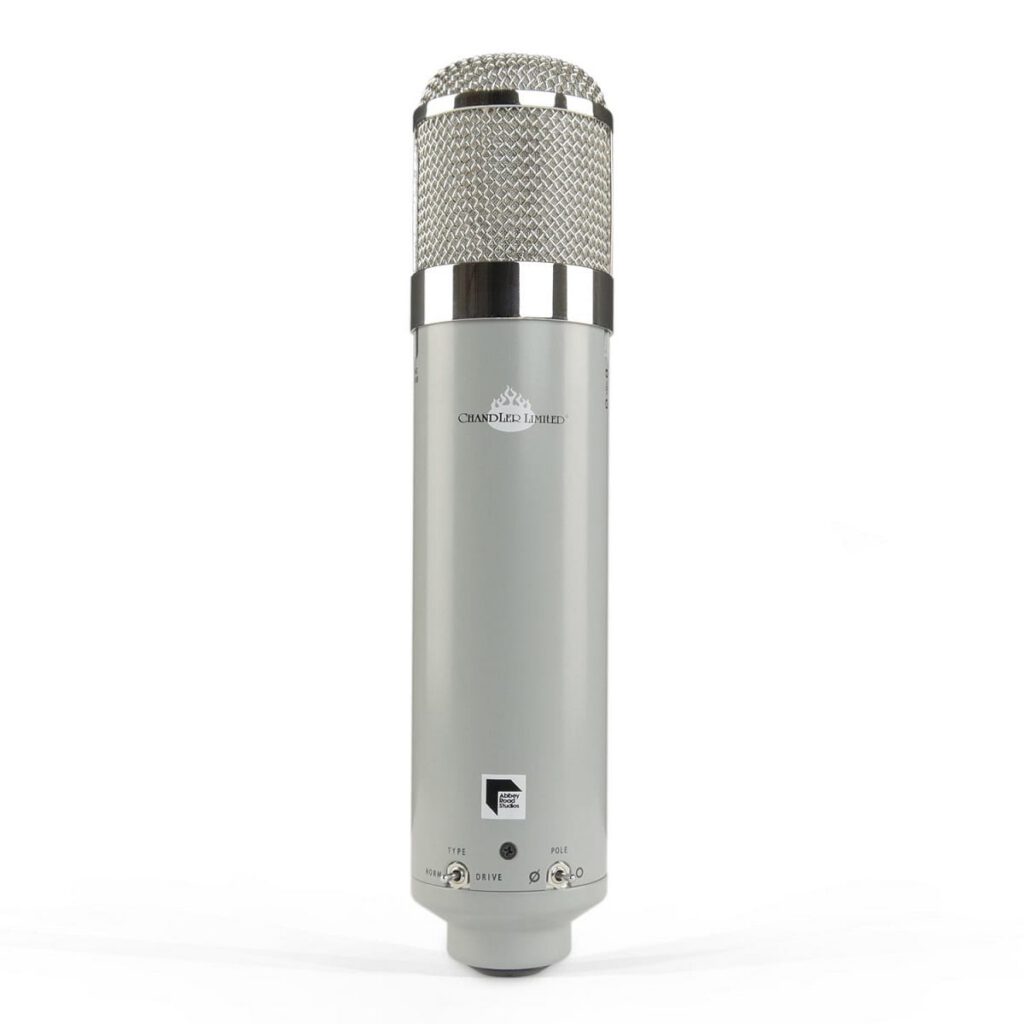

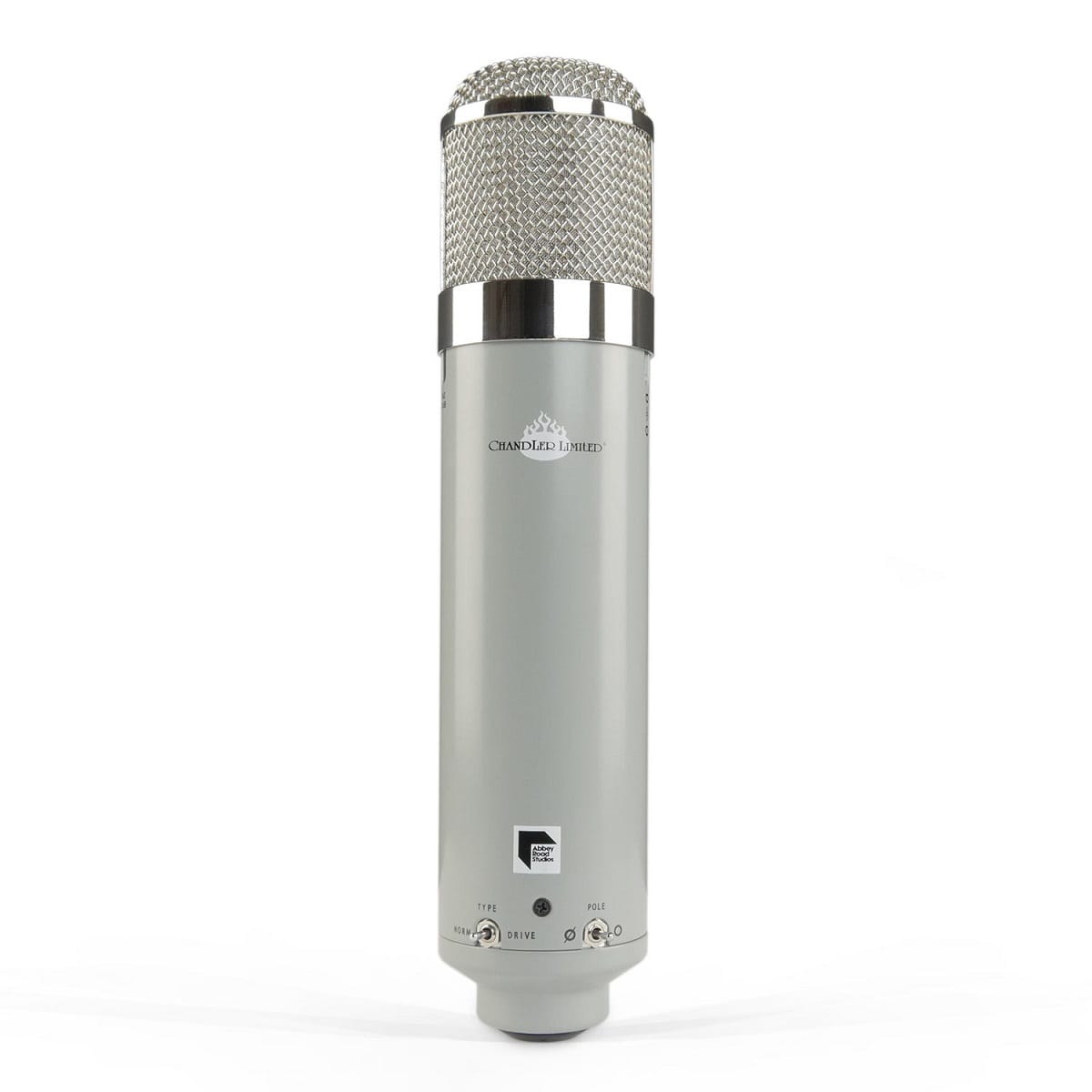

The Chandler Limited REDD Microphone is a large diaphragm tube condenser microphone, combining mic and preamp into a single, beautifully handcrafted professional recording device. Featuring the vacuum tube-based REDD.47 Mic Amplifier circuit directly coupled to a custom handmade premium platinum membrane capsule, the REDD Microphone can be used with or without an external preamplifier.

This new and unique microphone design, fusing the mic capsule to the historic REDD.47 line amplifier circuit, provides the shortest possible distance between the two most important elements in the recording chain.

The proximity of the REDD Microphone’s custom capsule to the internal tube mic preamp, allows it to deliver a larger-than-life full-bodied sound, with a velvety smooth top-end.

Rigorously tested at Abbey Road Studios on a variety of sources and against some of the most famous and classic microphones in recording industry history, the REDD microphone excelled.

Abbey Road’s former Chief Engineer, Peter Cobbin-

“During the development, I have had the opportunity to road test this mic on the best of acoustic applications. Abbey Road has one hell of a mic collection and making comparisons to other legendary and vintage microphones has given us a serious benchmark to work to.

Typically for recording an artist like Sting I would use 3 classic microphones and choose the best.  For recording rare Stradivarius cellos worth millions I would reach for something really special. On almost every application from acoustic guitars, hand percussion, and vocal artists to full symphonic orchestras, in my comparative testing, The REDD mic shines above them all. “

The  Chandler Limited REDD Microphone was designed to handle a variety of source materials, including vocals, strings, piano, drums, bass guitar, and electric and acoustic guitars.

Features available from the microphone body, include REDD.47 Mic Amplifier, providing nine gain selections, from +4 to +33db in the ‘NORM’ position, extended gain and punch in ‘DRIVE’ mode for more tonal and coloration possibilities, switchable Cardioid/Omni patterns, 10db Pad, and Phase reverse. Continuous output and low-contour control are accessible from the high-quality external power supply.

Shockmount, 25’ Mogami microphone cable, PSU, and custom molded flight case, featuring high-density rigid foam, are included.

NOTE: Actual PSU differs from early promotional images, the final release PSU was updated, adding a jewel light to the front panel, and relocating the power switch to the rear.

Patent No. 10,412,477

Abbey Road Studios, EMI, REDD, and their associated logos are trademarks of EMI (IP) Limited.

SPECIFICATIONS

FEATURES
Microphone Type	Large Diaphragm Condenser, Tube
Transducer Type	Platinum membrane, custom handmade, hand-milled
Circuit Type	REDD.47 Mic Amplifier, Tube, 200Ω output impedance
Gain	Switchable / +4 to +33db in ‘NORM’ mode
Maximum gain	Extended gain in ‘DRIVE’ mode
Patterns	Cardioid / Omni
PAD	10 dB / Switchable
Phase	0-180º / Switchable
Low-Contour Control	Available at PSU
Output Control	Continuous / Available at PSU
Power	External/PSU included
Microphone Cable	7 Pin, 25′ Mogami, included
Shockmount	Included
Case	Molded flight case / custom cut high-density rigid foam, included
