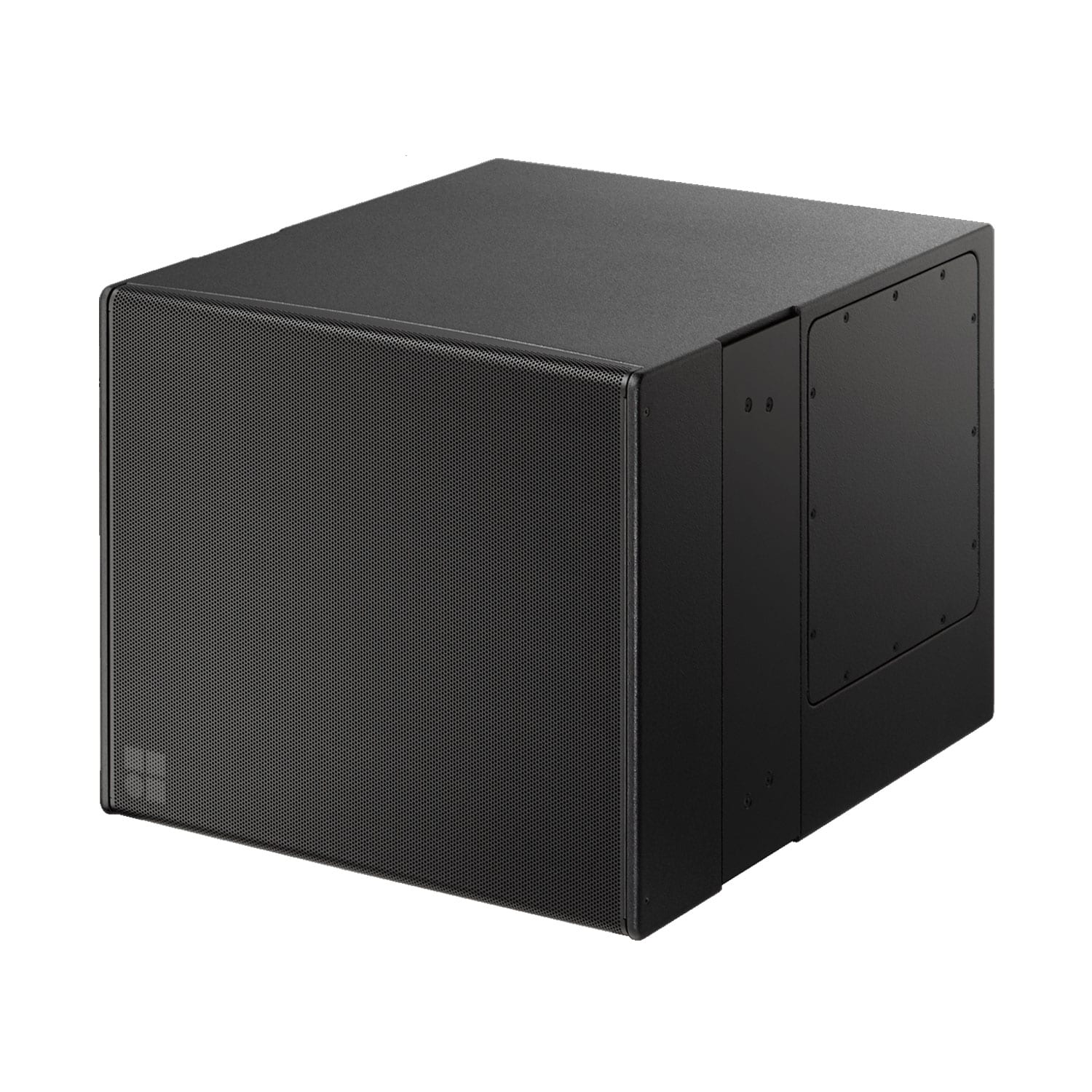

d&b audiotechnik 27A-SUB Compact Subwoofer
The 27A-SUB is a compact, flyable subwoofer built for use with d&b audiotechnik xA-Series and xS-Series loudspeakers. A high-performance, 2,000W (peak) design with a maximum SPL of 132dB, the cabinet houses two long excursion neodymium drivers in an integrated cardioid setup: a 15″ driver in a bass-reflex design facing to the front and a 12″ driver in a two-chamber band-pass design radiating to the rear. It can be used stand-alone, stacked, or as a base for a mixed ground stack. The 27A-SUB can also be combined with 10A and 10AL loudspeakers in vertical flown arrays. The enclosure is constructed from marine plywood with an impact-resistant black paint finish and is Ball Impact Resistant according to DIN 18032-3 for schools, sports arenas, and multipurpose halls.
D&b audiotechnik 27A-SUB—At a Glance:
- Installation-specific, cardioid flyable compact subwoofer
- 15″ and 12″ front- and rear-facing (respectively) long-throw neodymium drivers
- Bass-reflex design
- Cardioid dispersion
- Use in standalone, stacked, or as a base for a mixed ground stack
- Integrated rigging system for vertical arrays
- 131dB maximum SPL
D&b audiotechnik 27A-SUB—Parsing the Details
The front of the loudspeaker cabinet is protected by a rigid metal grille backed by an acoustically transparent foam. The side panels have an integrated rigging system, the rear panel incorporates two Neutrik NL4 speakON connectors and a two-pole screw terminal block. The loudspeaker cabinets and most accessories are also available with the Special Color (SC) option that can be executed in all RAL* colors, while the Weather Resistant (WR) option provides an IP55* rating and enables the operation of loudspeakers in changing ambient conditions.
*RAL is a color-matching system that defines standard colors for varnish, powder coating, and plastics. It’s the most popular Central European color standard used today.
**The IP Code or International Protection Rating, sometimes also interpreted as Ingress Protection Rating. IP55: Protected from limited dust ingress and protected from low-pressure water jets from any direction.
27A-SUB rigging components
27A-SUB cabinets are connected to form a vertical array each using the Z5418 Connector plates xA-SUB. Up to four 27A-SUB cabinets can be connected. When integrated at the top of a 10A or 10AL array, up to two 27A-SUB cabinets can be combined with up to six 10A/10AL cabinets. Vertical arrays are supported using the Z5414 Flying bar xA and the Z5413 Flying bar connector plates xA.
The d&b amplifiers are designed specifically to power d&b loudspeakers, forming the heart of the d&b System. They incorporate digital signal processing for comprehensive loudspeaker management, switchable filter functions, remote capabilities, and user-definable controls to fulfill the exact needs of each application.
The d&b 30D amplifier is recommended to drive the 27A-SUB. The d&b D20, D80, 10D, and D6 can also be used.
- Theater and Opera
- Houses of Worship
- Other (e.g. Edman Chapel, Wheaton College, Illinois)
For assistance ordering or configuring a d&b audiotechnik system with 27A-SUB subwoofers and xA-series loudspeakers, call or chat online with your Parsons Audio Professional today.
- Frequency response (-5 dB standard): 40Hz – 140Hz
- Frequency response (-5 dB 100 Hz mode): 40Hz – 100Hz
Max. sound pressure*
- D6/10D amplifier: 128 dB
- D20/30D amplifier: 131dB
- D80 amplifier: 131dB
- Cabinets per amplifier channel: 2
- Configuration: Installation-specific flyable compact subwoofer
- Nominal impedance: 6 ohm
- Power handling capacity (RMS/peak 10ms): 500/2000W
- Components: 15″ driver with neodymium magnet (front); 12″ rear driver with neodymium magnet (rear)
- Connections: 2 x NL4, screw terminal block
Dimensions / Weight (H x W x D) (Approx.)
- Height: 19-3/16″
- Width: 22-13/16″
- Depth: 27-5/8″
- Weight: 90 lb. / 41 kg
* 1 m, free field, SPL max peak test signal: pink noise with crest factor 4
