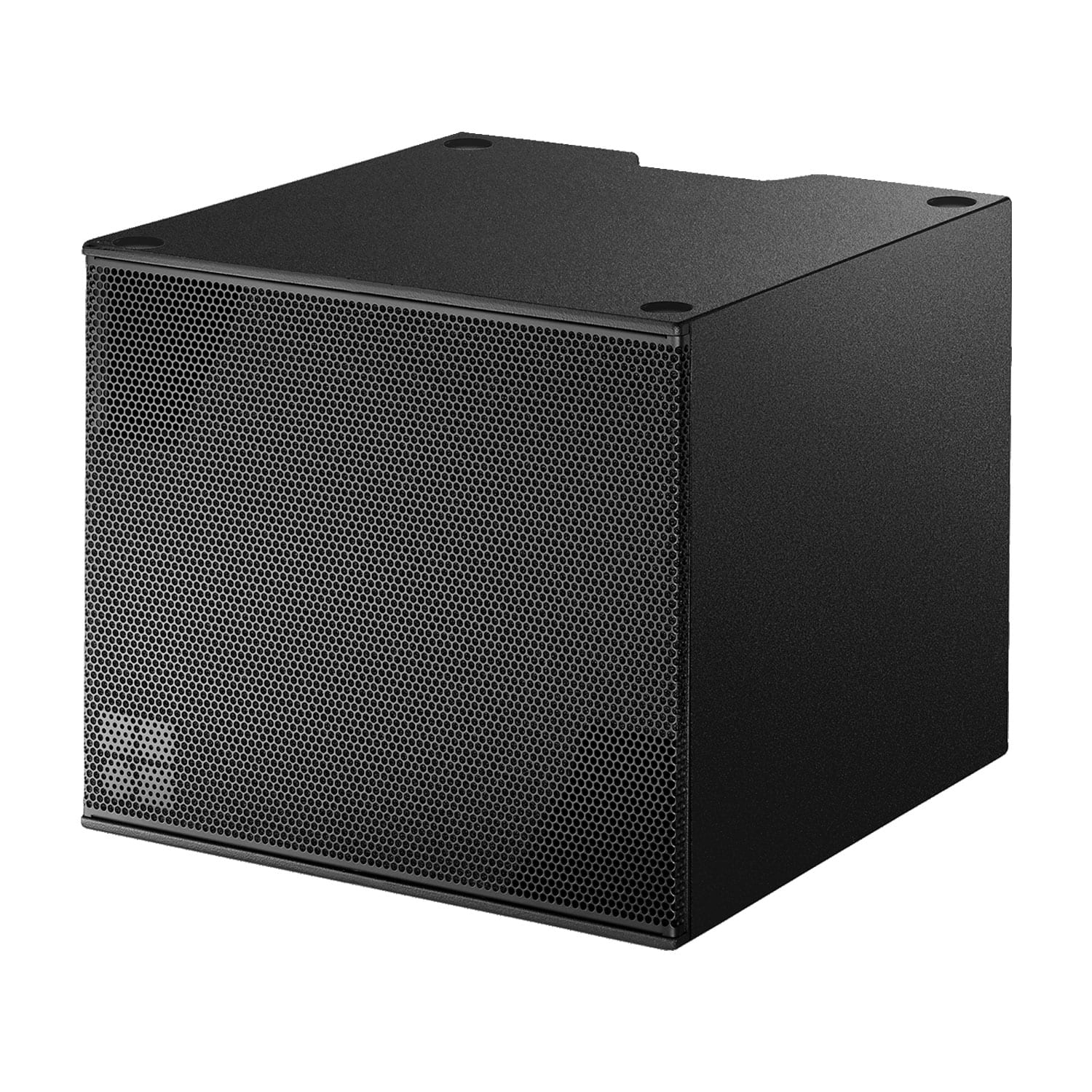

d&b audiotechnik Vi-GSUB Subwoofer

Installation-specific high-performance cardioid subwoofer

Description

The installation-specific d&b audiotechnik Vi-GSUB Subwoofer is an actively driven high-performance cardioid subwoofer powered by a single amplifier channel. The Vi-GSUB is intended for ground-stacked applications only. It shares the same acoustical and visual design as the Vi-SUB, which features integrated rigging equipment. It houses two long excursion neodymium drivers, an 18“ driver in a bass-reflex design facing to the front and a 12“ driver in a two chamber bandpass design radiating to the rear. The cardioid dispersion pattern resulting from this arrangement avoids unwanted energy behind the system reduces the excitation of the reverberant field at low frequencies and provides the greatest accuracy of low-frequency reproduction. The cabinet is constructed from marine plywood and has an impact-resistant paint finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. The loudspeaker cabinet is also available in Special Color (SC) and Weather Resistant (WR) options. The Weather Resistant option provides an IP55 rating and enables the operation of loudspeakers in changing ambient conditions.

System data

Frequency response (–5 dB standard) 37 Hz – 115 Hz
Frequency response (-5 dB 100 Hz mode) 37 Hz – 95 Hz
Max. sound pressure (1m, free field)1
with D20/30D
with D80 133 dB
137 dB
Cabinets per amplifier channel 2

Loudspeaker data

Configuration Installation-specific high-performance cardioid subwoofer
Nominal impedance 8 Ω
Power handling capacity (RMS/peak 10 ms) 800/3200 W
Components 1 x 18″ driver
1 x 12″ driver
Connections 2 x NLT4 F/M
optional 2 x NL4 M or 2 x EP5

Dimensions, weight

Dimensions (H x W x D) 606 x 700 x 728 mm
23.8 x 27.5 x 28.6″
Weight 58 kg
128 lb

Additional information

Weight 128 lbs
Dimensions 29 × 28 × 24 in
