Description

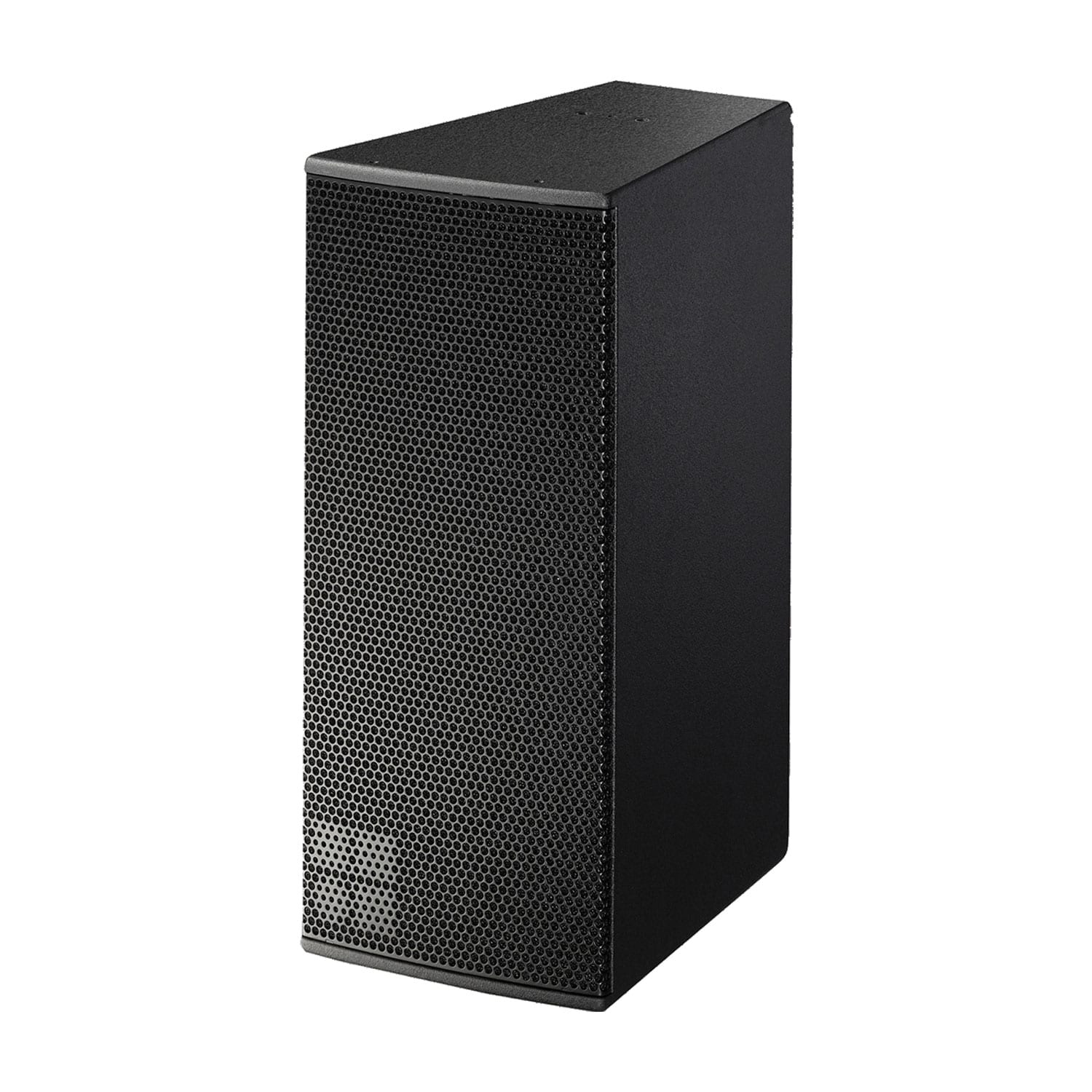

The installation-specific 3-way passive d&b audiotechnik Vi7P Loudspeaker features two 10“ drivers in a dipole arrangement with a horn loaded 8“ MF driver and a 1.4“ compression driver mounted onto a rotatable CD horn. The innovative horn design for the centrally mounted 8“ MF driver produces a remarkable sensitivity resulting in an exceptional performance in the vocal range. An advanced bass-reflex and venting design deliver an extended LF output with full bandwidth capabilities. All components are arranged symmetrically around the center axis of the cabinet to produce a perfect symmetrical dispersion pattern. Due to the dipolar arrangement of the LF drivers, broadband dispersion control is maintained down to approximately 350 Hz in the same plane as the dipole. This point source, a high-performance loudspeaker offers 75° horizontal directivity matched with a vertical dispersion of 40°; the horn can be rotated by 90° to enable horizontal orientation. The Vi7P provides a broad variety of deployment possibilities, especially when used as a stand-alone full range system, or combined with other elements from the V-Series, either ground stacked or flown. The loudspeaker cabinet is constructed from marine plywood and has an impact-resistant paint finish. A rigid metal grill protects the front of the loudspeaker cabinet. The loudspeaker cabinet is also available in Special Color (SC) and Weather Resistant (WR) options. The Weather Resistant option provides an IP55 rating and enables the operation of loudspeakers in changing ambient conditions.
System data
Frequency response (–5 dB standard) 59 Hz – 18 kHz
Frequency response (–5 dB CUT mode) 100 Hz – 18 kHz
Max. sound pressure (1m, free field)1
with D20/30D
with D80 137 dB
140 dB
Cabinets per amplifier channel 2
Loudspeaker data
Configuration Installation-specific high-performance 3-way point source loudspeaker
Nominal impedance 8 Ω
Power handling capacity (RMS/peak 10 ms) 500/2000 W
Nominal dispersion angle (h x v) 75° x 40°
Components 2 x 10″ LF driver with neodymium magnet
1 x 8″ MF driver with neodymium magnet
1 x 1.4” exit compression driver
Passive crossover network
Connections 2 x NL4
screw terminal block
Dimensions, weight
Dimensions (H x W x D) 700 x 308 x 466 mm
27.5 x 12 x 18.3″
Weight 33 kg
75 lb
