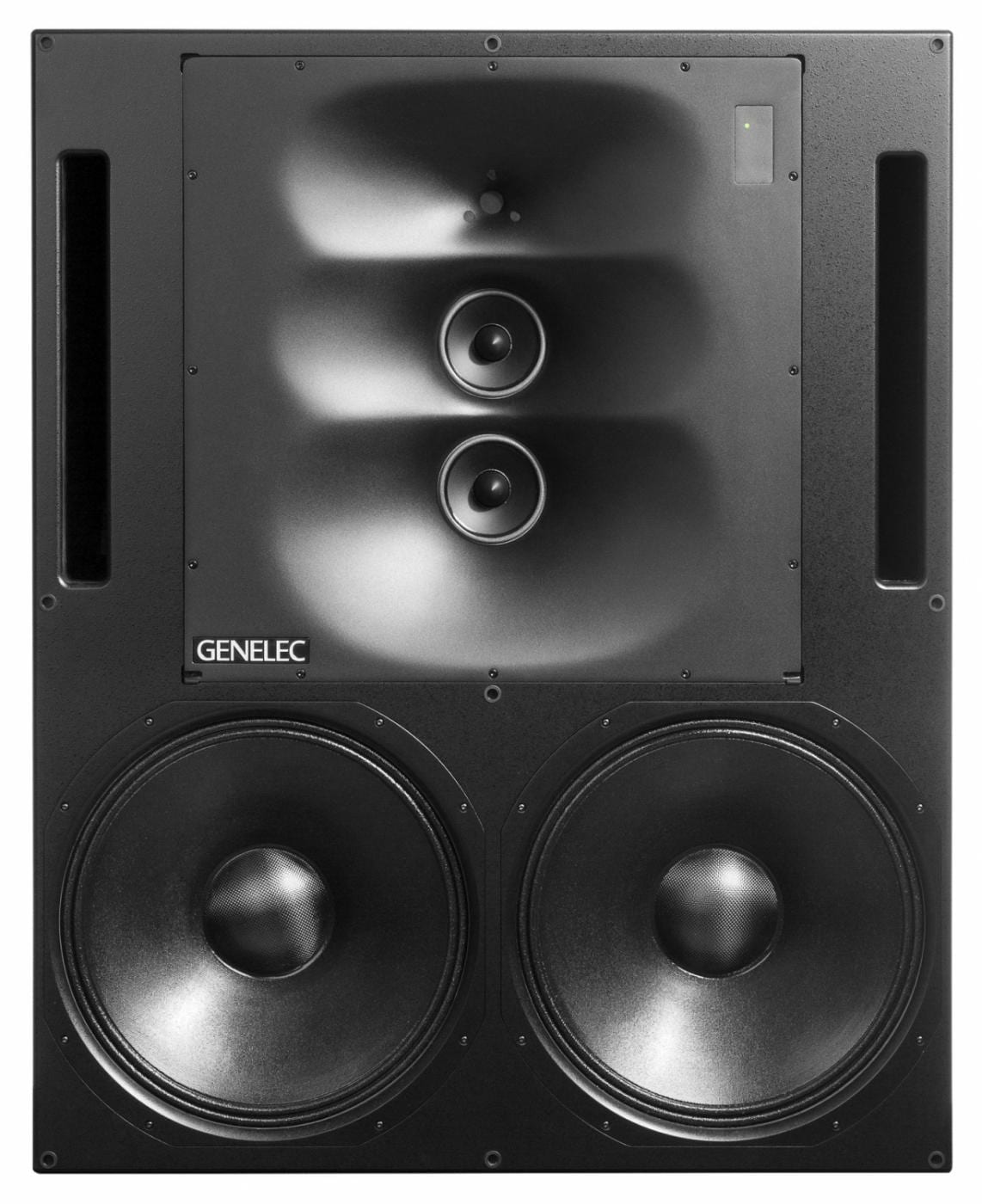

Genelec 1236AP

2 x 18″ LF/2 x 1000W, 2 x 5″ MF/400W, 1″ HF/250W. Remote RAM-XL Amp. (Includes one GLM User Kit per pair) Call for Price Call for Price Call for Price

**Built to order – contact us for lead time.


The flagship of Genelec’s range. The intelligence of the Genelec 1236AP is seamlessly integrated into the finest example of acoustic engineering yet produced in more than 40 years of Genelec history.

Power and finesse

This is where power and finesse combine to create a truly extraordinary main monitor. Producing peak SPLs of over 130 dB, the 1236A’s staggering muscle is backed up with exquisitely precise imaging and a wide, neutral sweet spot that is the natural choice for satisfying multiple listeners in larger control rooms. All the vibe and energy you want, with detail to match.

Ultimate control

The 1236A offers new levels of control through its tight integration with our GLM calibration software. GLM analyses your room’s characteristics and intelligently tailors the monitors’ frequency response, level, distance delay, and more to provide a truly optimized listening experience – and mixes that translate perfectly to other rooms and systems.

Package contains:

1 x 1236A monitor
1 x individually calibrated RAM-XL amplifier
1 x mains cable 1,8 m
1 x RJ45 cable 5 m (16 ft 4 in)
1 x RJ45 cable 10 m (32 ft 9 in)
1 x speakon cable 10 m (32 ft 9 in)
1 x user manual

Technical Specifications

130 dB
Amplifier Power
2 X 1000 W Bass (Class D) + 2 X 400 W Midrange (Class D) + 250 W Treble (Class D)
Frequency Response
17.5 Hz – 26 kHz (“-6 dB”)
Accuracy of Frequency Response
± 2 dB (21 Hz – 20 kHz)
Driver Dimensions
2 x ⌀ 458 mm Bass + 2 x ⌀ 125 mm Midrange + ⌀ 25 mm (view in inches)
H 1180 x W 960 x D 650 mm, (view in inches)
182 kg / 401.2 lb
1 x XLR Analog Input

1 x XLR AES/EBU Input

1 x XLR AES/EBU Output

2 x RJ45 Control
