Description

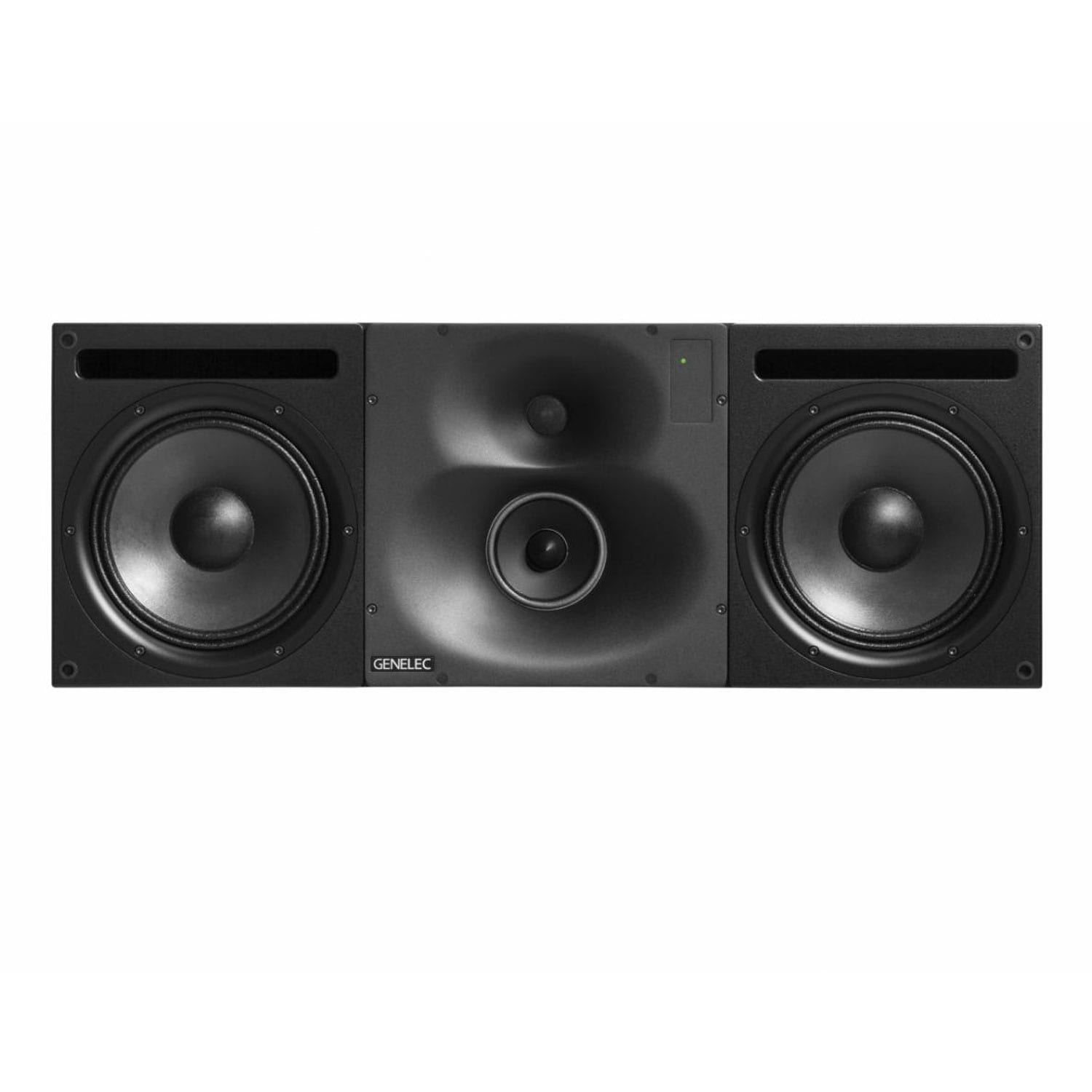

Shaped by decades of engineering expertise and armed with the power of Smart Active Monitoring technology, the Genelec 1238ACPM is a center channel monitor designed for the most demanding applications.
Perfect for multi-channel
As a center-channel companion to the 1238A, the three-way 1238AC is perfect for multi-channel applications that require extremely uncolored and precise on and off-axis response, even at high SPLs and longer listening distances. With a choice of horizontal or vertical orientations, the controlled directivity of the 1238AC results in a wide, very stable sweet spot – so users can move freely around the console and still make accurate, reliable, and informed mix decisions.
Configure, calibrate and control
As part of the growing Smart Active Monitoring family, the 1238AC integrates closely with our GLM software via which it can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimized monitoring solution. Since producing multi-channel content that translates well to other rooms and systems relies on a good room and an extremely well-aligned monitoring system, the 1238AC is the natural choice for discerning professionals in high-end music production, post-production, and broadcast.
Package contains:
1 x 1238AC main monitor
1 x individually calibrated RAM-L amplifier unit
1 x mains cable 1,8 m
1 x RJ45 cable 5 m (16 ft 4 in)
1 x RJ45 cable 10 m (32 ft 9 in)
2 x 4-pole Speakon cable 10 m (32 ft 9 in)
1 x user manual
Technical specifications
SPL
121 dB
Frequency response
30 Hz – 22 kHz (-6 dB)
Accuracy of frequency response
± 2.5 dB (35 Hz – 20 kHz)
Driver dimension
Woofer 2×10 inch + Midrange 5 inch + Tweeter 1 inch, metal dome + DCW™
Amplifier power
Woofer 500 W + Midrange 250 W + Tweeter 200 W
Dimensions
H 350 x W 950 x D 453 mm, 13 3/4 x 37 3/8 x 17 7/8 inch
Weight
Enclosure: 60 kg / 130 lb + RAM-L: 6 kg / 13 lb
Connections
1 x XLR analog input, 1 x input / 1 x output XLR digital AES/EBU, 2 x RJ45 control network
