Genelec 8020.LSE Espresso

SKU: GEN0015

5.1 System – Five 8020DPMs & one 7050CPM subwoofer. Producer Finish.

Quantity:

About this item

Product

Description

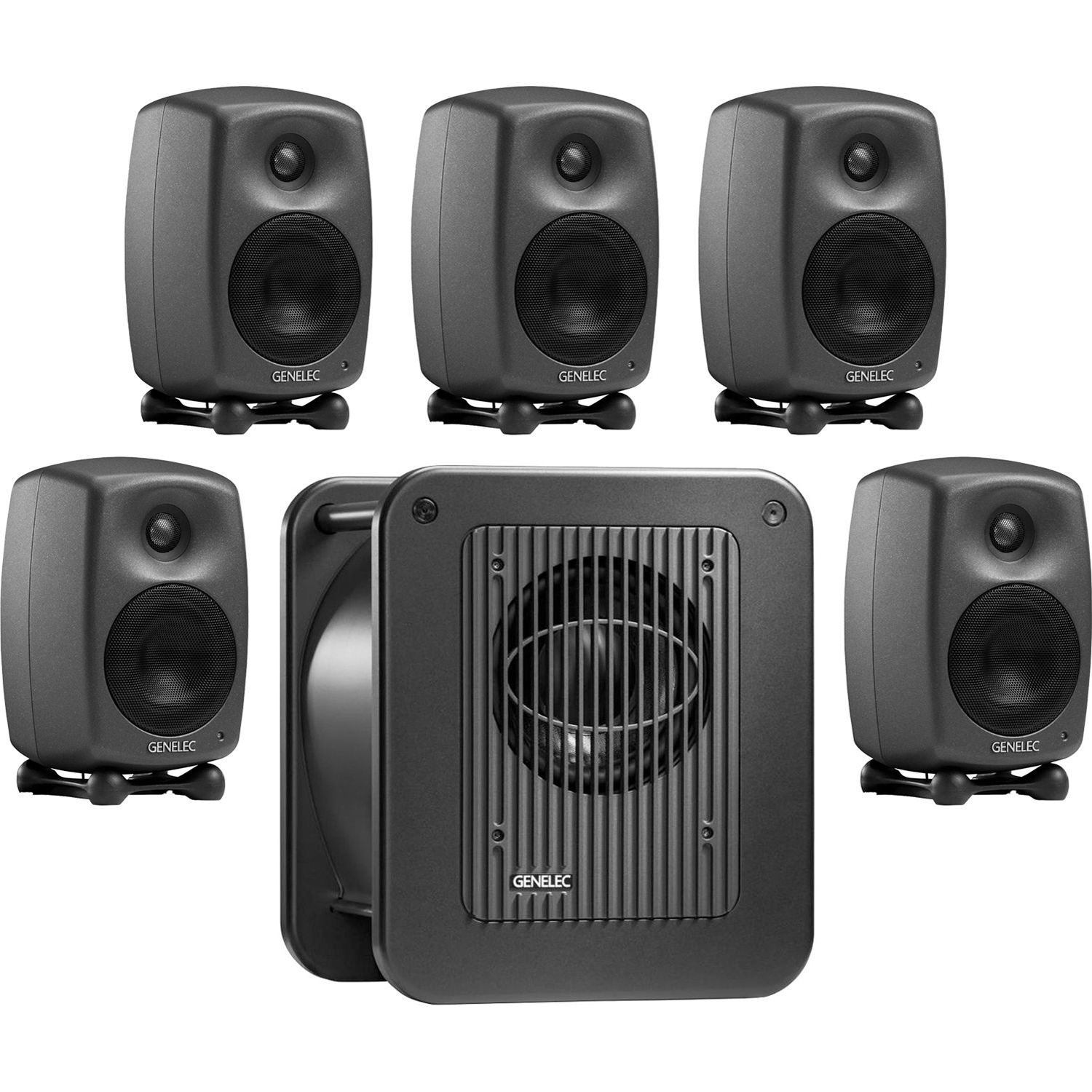

Genelec 8020.LSE Espresso 5.1 Multi-Channel Active Monitoring System

Genelec 8020.LSE Espresso 5.1 Monitoring System Details

The Genelec 8020.LSE Espresso 5.1 Monitoring System is a 5.1 Multi-Channel monitoring system consisting of five 8020D active bi-amp monitors and one 7050B active subwoofer with a built-in Bass Manager. Suitable for production and playback environments up to approx. 2200 cu. Ft. Need accurate surround monitoring in a small space? Now you can have compact quality with the Genelec 8020.LSE Espresso system! Studios all over the world rely on Genelec monitor systems every day. Now Genelec has delivered its smallest speaker system to date with the new 8020.LSE Espresso, a 5.1 system that will fit into cramped spaces and still provide accurate reproduction.
The characteristics of the 8000 Series in a compact size

All the natural, uncolored, and extremely low distortion reproduction characteristics of the highly praised Genelec 8000 series are here in the five 8020 monitors. Size is no handicap to performance with the 8020! Its imaging accuracy and low-frequency extension in such a compact enclosure are truly astounding. The 8020 monitor features a 4″ bass driver along with a 3/4″ tweeter each powered by its own 20-watt amplifier.

Improved performance from MDE enclosure and DCW waveguide

The five 8020A powered monitors in the 8020.LSE Espresso system features Genelec’s highly innovative Minimum Diffraction Enclosure (MDE), with rounded edges and gently curved front and sides. In addition to unsurpassed frequency response, the 8020A’s minimized cabinet edge diffraction yields superb imaging qualities. The 8020A’s revolutionary Directivity Controlled Waveguide (DCW) has been further enhanced to provide extremely accurate control of the speaker’s directivity. This specially-shaped and very smooth surface provides a wide and consistent listening window and minimizes harmful early room reflections and other colorations associated with conventional designs.
7050B subwoofer is a compact yet powerful

The new Genelec 7050B LSE Subwoofer is a perfect partner to the 8020A compact monitors for both stereo and surrounds sound applications. The 7050B extends the low-frequency response down to 25Hz with amazing bass articulation. This is made possible in such a compact enclosure thanks to Genelec’s patented LSE technology. With 5 main input channels and an LFE channel with 85/120Hz bandwidth selection, the 8020A/7050B system fulfills the needs of 5.1 productions. You can also use the 7050B to complement the Genelec 8030A monitor.

Revolutionary LSE enclosure ensures clean, distortion-free bass

Developed by Genelec’s award-winning R & D team in Finland, the radically innovative 7050B Laminar Spiral Enclosure design dramatically alters how high-level, low-frequency acoustic energy is delivered to any critical listening space. The result of LSE technology is the elimination of port turbulence-caused acoustic non-linearities, which means a smooth-sounding flow of low-frequency energy from the 7050B’s rigid tuned enclosure.

Genelec 8020.LSE Espresso 5.1 Monitoring System Features

Five Compact, two-way 8020 active nearfield monitors
7050B subwoofer with 8″ driver and 70-watt amplifier
Aluminum MDE 8020 enclosure
Unique Laminar Spiral Enclosure for 7050B sub
Combined frequency response 25Hz – 21kHz
Maximum peak SPL output per pair 105dB at 1 meter
Balanced XLR inputs
EQ controls on 8020 rear panels
Suitable for 2500 cubic ft./pair
Iso-Pod mounting stand included, plus integrated omnimount series 20.5 mounting threads, 3/8″ mic stand thread and wall mount fixtures

Genelec 8020.LSE Espresso 5.1 Monitoring System Specifications

8020C Specs:
Maximum sound pressure level 95 dB
Frequency response 59 Hz â?” 25 kHz (-6 dB)
Crossover frequency ± 2.5 dB (66 Hz – 20kHz)
Driver dimension Woofer 4 in + Tweeter 3/4 in
Metal dome + DCW┢
Amplifier power Woofer 20 W + Tweeter 20 W
Dimensions H 242 x W 151 x D 142 mm / 9 1/2 x 6 x 5 5/8 in, with Iso-PodT
Weight 3.7 kg / 8.1 lb
Connectors 1 x XLR analogue in
7050B Specs:
Maximum sound pressure level 100 dB
Frequency response 25 Hz – 85 Hz (-6 dB)
Crossover frequency ± 3 dB (25 Hz – 85 Hz)
Phase correcting 0 to -270° (90° steps)
driver dimension 8 in
Amplifier power 70 W
Dimensions H 410 x W 350 x D 319 mm / 16 1/8 x 13 3/4 x 12 9/16 in
Weight 18 kg / 39.6 lb
Connectors
5.1 XLR analogue in
5 x XLR analogue out
