Description

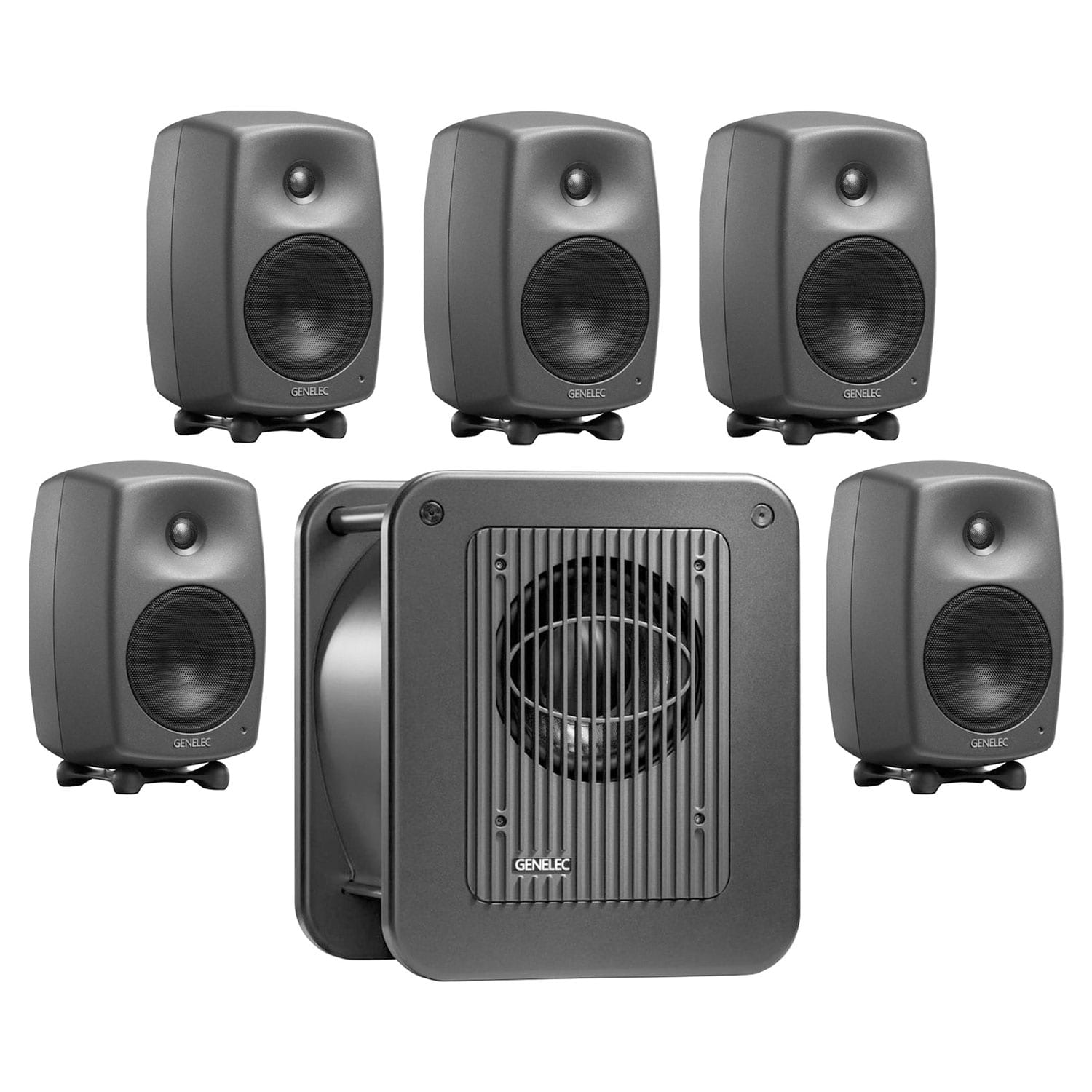

Genelec 8030.LSE Broadcast Pak 5.1 Monitoring System (Producer Black Finish) w/ 5 8030A’s and 1 7050B Sub
Genelec 8030.LSE Broadcast Pak 5.1 System (Producer Black Finish) is a complete 5.1 active nearfield monitoring system ideal for use in project or professional studios for music or post-production applications. Genelec 8030.LSE Broadcast Pak 5.1 System (Producer Black Finish) includes a set of 5 8030A nearfield monitors and a 7050B subwoofer for a full frequency range of accurate audio reproduction. Each unit has a durable aluminum housing and offers balanced XLR connectors.
Genelec 8030A monitors feature 5″ woofers and 0.75″ tweeters in a Minimum Diffraction Enclosure (MDE) design to provide wide frequency response. Iso-Pod speaker stands to isolate the speakers from vibrations and resonances caused by surface placement.
Genelec 7050B is an 8″ subwoofer powered by a 70W amplifier. It has Genelec’s proprietary Laminar Spiral Enclosure, which lowers noise and provides tight, consistent signal dispersion. Each unit also offers tone controls for optimization with your workspace.
Features
Active 5.1 Surround monitoring system with unique design and specially matched subwoofer
Magnetically shielded for use in close proximity to computer monitors
Minimum Diffraction Enclosure(MDE) design with rounded edges curved front and sides for smooth frequency response and clear spatial imaging, minimal cabinet edge wave diffraction
LSE (Laminar Spiral Enclosure) bass reflex subwoofer cabinet design for minimized turbulence noise and optimum signal flow
Directivity Control Waveguide (DCW) and rear panel reflex port design for accurate and balanced wave dispersion, durable die-cast aluminum cabinet construction
Isolation Position/Decoupler (Iso-Pod) rubber speaker mount allows for precise vertical or horizontal speaker positioning, separates the speaker from placement surface, eliminating rumble and other aberrant vibration-related resonances
Metal grille covering for monitor drivers
Front Panel power switch and volume controls
Integrated monitor rear support points for wall and floor stands, 3/8″ threading for enclosure cabinet base mounting
Balanced XLR inputs, outputs for all speakers
Balanced XLR output for daisy-chaining multiple units or connection to Subwoofer
Rear panel Treble and Bass Tilt, Bass Roll-Off tone control switches for optimizing monitor speaker to the acoustic character of the room environment
29Hz lower cutoff frequency for the subwoofer
Selectable 85/120Hz lowpass filter switch and 0/+10dB LFE sensitivity switch for subwoofer
7 separate control switches for phase adjustment, bass roll-off and tone control
Transparent Overload Protection circuitry for all speakers
Switchable power supply for international use
Specifications
Manufacturer: Genelec
Product: 8030.LSE Broadcast Pak 5.1 System
Finish: Producer Black Finish
Monitors: 5 x 8030A nearfield monitors
Subwoofer: 1 x 7050B subwoofer
Low-Frequency Driver: 5″ Cone, 8″ Driver (subwoofer)
High-Frequency Driver: 75″ Metal Dome
LF Amplifier: 40 Watts
HF Amplifier: 40 Watts
Crossover: Active (3.0 KHz), Active (85 Hz Subwoofer)
Frequency Range: 29Hz – 20kHz, +/-2dB (System Free Field)
Impedance: N/A, Self-powered
Max. Sound Pressure Level: >108dB at 1 m, >113dB at 1 m (subwoofer)
Protection: Shielded
Specialties: Iso-Pod Isolation Mount/Positioner, Magnetic Shielding, LSE Subwoofer Cabinet Design
Power Supply: AC 120 V only
Dimensions: H x W x D (11.2 x 7.4 x 7)inch / (285 x 189 x 178)mm, Subwoofer (16.1 x 13.8 x 12.6)inch / (410 x 350 x 319)mm
Weight: 12.3 lbs / 5.6kg, 39.6 lbs / 18 kg (Subwoofer)
