Genelec 8330.LSE Surround SAM

SKU: 8330.LSETM Surround SAM

Five 8330APMs, One 7360A Subwoofer & GLM V2.0 User Kit with Volume Control.

Quantity:

About this item

Product

Description

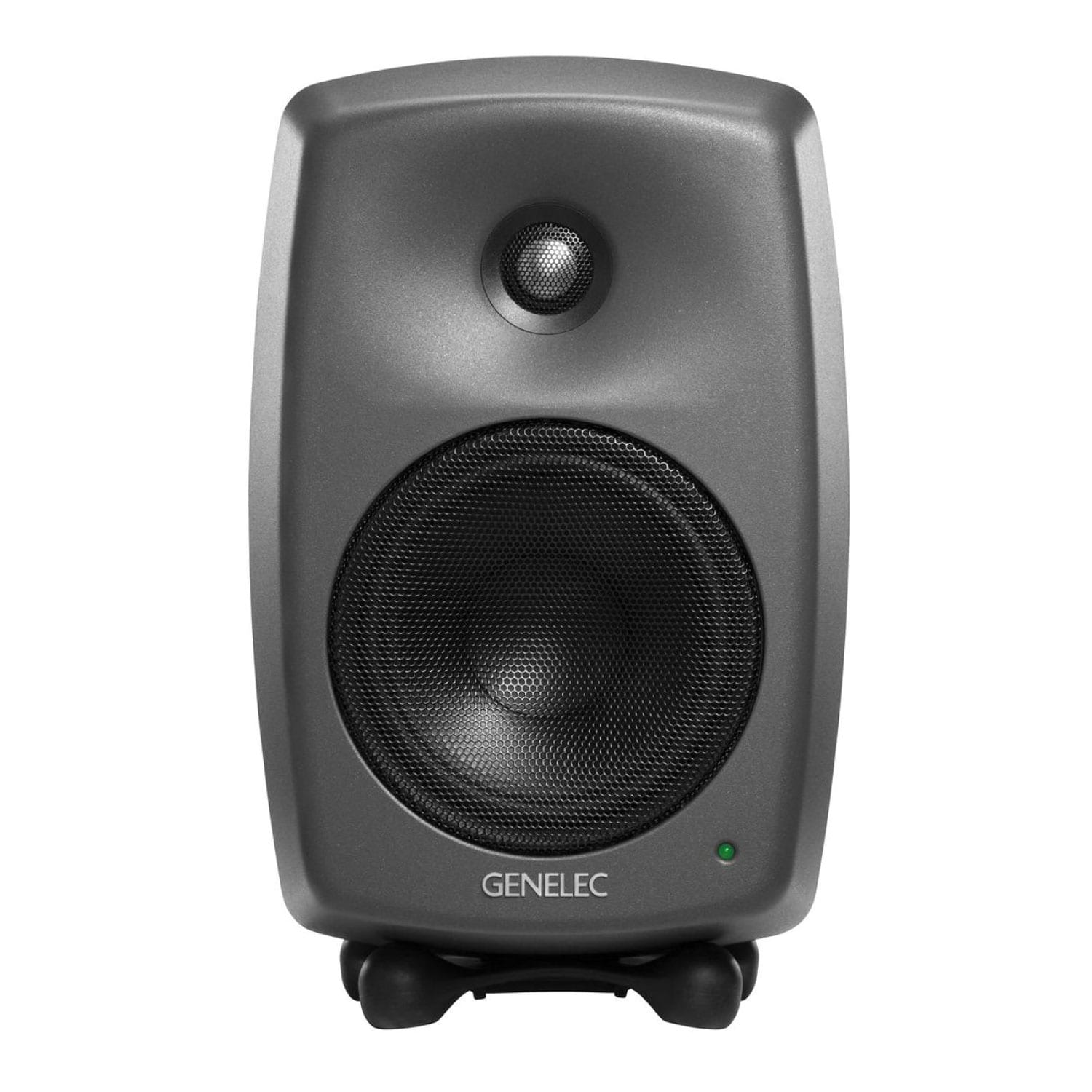

Designed for engineers looking for a surround sound system with matching monitors and subwoofers, the Genelec 8330.LSE Surround SAM Kit gives you five 5″ monitors and a corresponding subwoofer, all manageable with the company’s GLM technology. The system consists of five 8330A Monitors, a 7360A Subwoofer, a GLM 2.0 User Kit, and a 9310A Volume Controller.

The monitor sports a Minimum Diffraction Enclosure and Directivity Control Waveguide to provide flat frequency response and realistic stereo imaging. You can tune these monitors to your room by means of the built-in SAM DSP.

The 7360A SAM Studio Subwoofer provides a Laminar Spiral Enclosure and a built-in bass management system. The 10″ subwoofer also utilizes SAM technology, so your whole system can coordinate and accommodate your room.

The included GLM 2.0 Kit networks all the monitors together, measure the acoustic response of your room, and calibrates the speakers accordingly. The volume controller gives you control of the level.

8330A Technical SPecs

SPL
104 dB
Amplifier Power
50 W Bass (Class D) + 50 W Treble (Class D)
Frequency Response
45 Hz – 23 kHz (“-6 dB”)
Accuracy of Frequency Response
± 1.5 dB (58 Hz – 20 kHz)
Driver Dimensions
⌀ 130 mm Bass + ⌀ 19 mm Treble (view in inches)
Dimensions
H 299 x W 189 x D 178 mm, with Iso-Pod™ (view in inches)
Weight
5.5 kg / 12.1 lb
Connections
1 x XLR Analog Input
1 x XLR AES/EBU Input
1 x XLR AES/EBU Output
2 x RJ45 Control

7360A Technical SPecs

SPL
109 dB
Amplifier Power
300 W Bass (Class D)
Frequency Response
19 Hz – 150 Hz (“-6 dB”)
Accuracy of Frequency Response
± 3 dB (19 Hz – 100 Hz)
Driver Dimensions
⌀ 250 mm Bass (view in inches)
Dimensions
H 527 x W 462 x D 363 mm, (view in inches)
Weight
27 kg / 59.5 lb
Connections
8 x XLR Analog Input
8 x XLR Analog Output
1 x XLR AES/EBU Input
1 x XLR AES/EBU Output
2 x RJ45 Control
1 x XLR Analog Input
1 x XLR Analog Output
