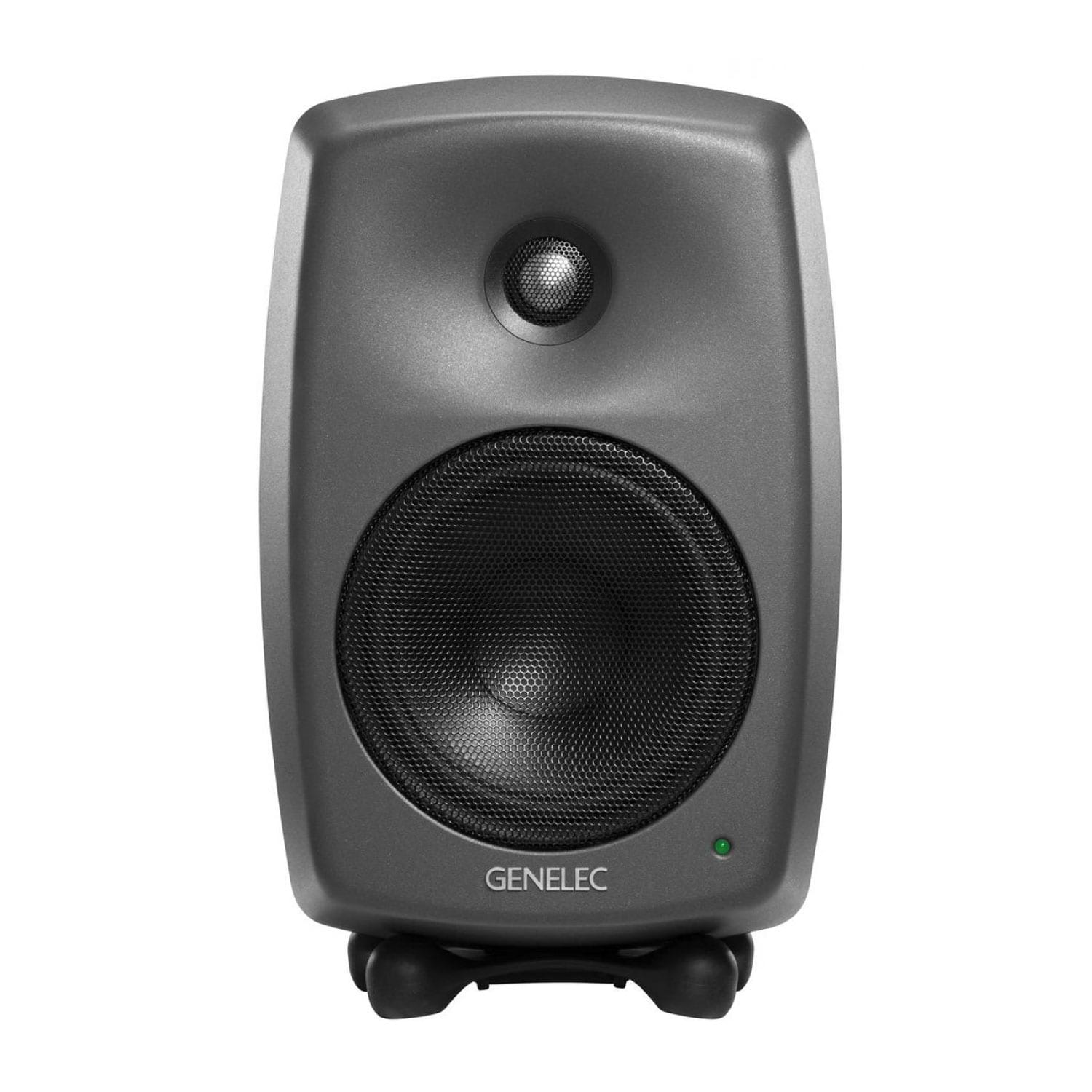

Genelec 8340AP IP SAM Monitor

5″ LF & .75″ HF. AES67 compatible Audio-over-IP digital audio stream input.


The Genelec 8340AP is the world’s first AoIP studio monitor, allowing reference-quality monitor performance to integrate directly into your IP workflow.

Total compatibility

The explosion in the growth of networked audio has been huge, and the 8430A’s connectivity allows direct monitoring of AoIP streams, with all the precision and clarity that audio professionals have come to rely on from Genelec. Based on the Ravenna IP protocol, with full AES67 support for total compatibility, the 8430A is the natural choice for today’s sophisticated production environment.

Optimized listening

As a fully-fledged Smart Active Monitor, the 8430A integrates tightly with our GLM calibration software to fully optimize your IP-based monitoring set-up for your listening environment. This means you can always be confident of producing mixes that translate beautifully, even if you are working in challenging broadcast environments with only rudimentary acoustic treatment.

Package contains:

1 x 8430A monitor
1 x mains cable 1,8 m
1 x RJ45 cable 5 m
1 x user manual

Technical Specifications

104 dB
Amplifier Power
50 W Bass (Class D) + 50 W Treble (Class D)
Frequency Response
45 Hz – 23 kHz (“-6 dB”)
Accuracy of Frequency Response
± 1.5 dB (58 Hz – 20 kHz)
Driver Dimensions
⌀ 130 mm Bass + ⌀ 19 mm Treble (view in inches)
H 299 x W 189 x D 178 mm, with Iso-Pod™ (view in inches)
5.5 kg / 12.1 lb
1 x XLR Analog Input
1 x RJ45 AES67 Input
2 x RJ45 Control

Additional information

Weight 13 lbs
Dimensions 8 × 8 × 12 in
