Description

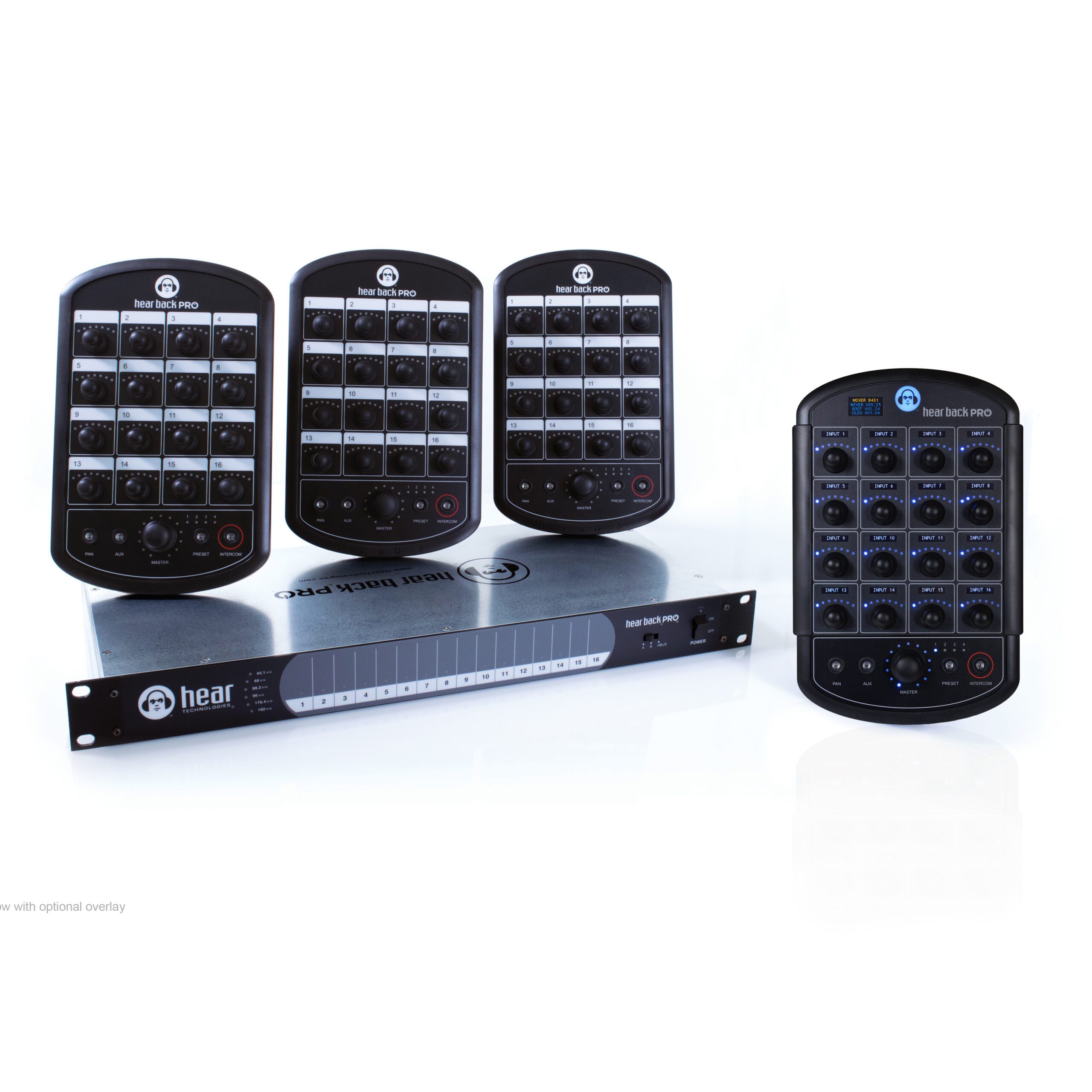

Hear Technologies Hear Back PRO System
Now with V6 Firmware
Assign each knob of a PRO Mixer to any mono channel, stereo pair of channels, or even a sub-mix of up to 16 channels with the V6 update. Configure each Mixer differently and add up to 128 input channels to the system using additional Input Cards and Hubs (32 channels of inputs per Hub).
New V6 Features
- PRO Digital Overlay compatibility
- Allows 32-channel digital input cards (e.g. Dante, Waves, MADI)
- Route-Assign-Submix up to 128 channels
- Submix up to 16 stereo channels on each of the 16 knobs per Mixer
- Up to 64 pairs of stereo-linked channels
- Up to 32 input channels per Hub
Download V6 Firmware
How to Upgrade/Downgrade Firmware Versions
Key Features
- Panning width and stereo placement
- Solo in place
- Multiple Intercom
- Preset copy and paste from one Mixer to another
- Signal present indication on all channels
- The mirroring function synchronizes all settings between multiple Mixers
- iOS/macOS App available for ease of use
- Remote control of all settings via iOS/macOS App or from another Mixer
Overview
This is it – the most comprehensive digital solution to get everyone the mix they need to perform their best. This new system platform is completely modular and infinitely expandable, which means it is the last personal monitoring system you’ll ever need.
Whether or not you’ve ever used a personal monitor mixer, the simple layout of this powerful system makes getting the right mix a quick and effortless experience. Based on Gigabit Ethernet, this framework paves the way for an impressive range of future possibilities.
The Hear Back PRO system consists of two main components: the Hub and the Mixer. The modular Hub consists of four card slots, which can be populated with any input and/or output card configuration to fit your exact needs. Each Hub has the ability to supply signal and power to as many as 32 Mixers (8 per Network Card), each over a single standard CAT6* cable. With the built-in HBUS In/ Out ports, multiple Hubs can be daisy-chained together, allowing for truly unlimited system expansion.
System Standouts
- A modular I/O Hub card system allows for system customization
- FW V5 and V6 allow two independent input sources simultaneously (e.g. Analog, Dante)
- The large master knob controls the overall main mix, AUX, and intercom levels independently
- Volume and panning control of all channels
- Direct and immediate visual feedback of all channels
- Write session info and channel settings on storable Mixer overlays for an unlimited number of presets
- Optional PRO Digital Overlay (available for FW V6) features OLED graphical displays for electronic channel labeling and Mixer status
- Instantly store and recall presets from memory with the push of a button
- The most recent configuration is saved, even after power-down
- Support for sampling rates up to 192 kHz
- Selectable XLR or 1/8″ Mixer AUX input on PRO Mixer
- Built-in intercom broadcasts the AUX source (mic, MP3 player, click, etc.)
- The intercom auto adjusts its own level so even the quietest message never goes unheard
- Supports secondary power supply providing redundancy and power for up to 32 Mixers per Hub
- USB port on Hub makes updating firmware for future features and upgrades a simple drag-and-drop operation
- HBUS In/Out connections allow daisy-chaining Hubs and a wireless access point connection for use with the PRO’s iOS App
- Side-mounted card slot on Mixer for future expansion
- Status indicating logos on Hub and Mixers make it easy to detect and diagnose problems, should they arise
- Hear Back PRO iOS App allows for complete control of all Mixers connected to the network
The Hear Back PRO system is available in a Four Pack plus an Overlay Upgrade, as well as offering Mixers and Hubs separately.
- Hear Back PRO Four Pack, Analog Input
- (4) PRO Mixers, (1) PRO Hub Frame, (2) Analog cards, (1) Network card, (4) 50′ Cat6 Cables, (1) Tote Back, and (2) Analog DA-88 style cables
- Hear Back PRO Four Pack, ADAT Input
- (4) PRO Mixers, (1) PRO Hub Frame, (1) ADAT card, (1) Network card, (1) Tote Back, and (4) 50′ Cat6 Cables
- Hear Back PRO Four Pack, AES/EBU Input
- (4) PRO Mixers, (1) PRO Hub Frame, (1) AES/EBU card, (1) Network card, (1) Tote Back, and (4) 50’ Cat6 Cables
- Hear Back PRO Four Pack, Dante Input
- (4) PRO Mixers, (1) PRO Hub Frame, (1) Dante card, (1) Network card, (1) Tote Back, and (4) 50′ Cat6 Cables
- Hear Back PRO Four Pack, Waves Input
- (4) PRO Mixers, (1) PRO Hub Frame, (1) Waves SoundGrid card, (1) Network card, (1) Tote Back, and (4) 50′ Cat6 Cables
- Hear Back PRO Four Pack, MADI Input
- (4) PRO Mixers, (1) PRO Hub Frame, (1) MADI card, (1) Network card, (1) Tote Back, and (4) 50’ Cat6 Cables
- Hear Back PRO Four-Pack Overlay Upgrade
- PRO Digital Overlays [installed] with Purchase of any Hear Back PRO Four Pack
Features
Hear Back PRO Mixer Features
- FIRMWARE V6 or later:
- PRO Digital Overlay compatibility
- Local control of up to 138 channels of audio (128 channels + Stereo AUX IN + up to 4 stereo intercom inputs)
- Submix up to 16 stereo channels on each of the 16 knobs
- FIRMWARE V1 and V2:
- Local control of up to 18 channels of audio (16 mono channels + AUX IN + Intercom IN)
- Volume/panning/stereo link control of all audio channels
- Remote control all settings from iOS App or another Mixer
- Receive power and audio over one Ethernet cable, up to 500′ from Hub to each Mixer
- 24-bit Delta-Sigma D/A and A/D converters
- Store up to 4 recallable presets
- Intercom allows communication to anyone with a Hear Back PRO Mixer (up to 4 people at a time)
- 1/8′ and 1/4′ headphone outputs with 2.2 Watts of power per channel
- Balanced mono/stereo, line-level outputs
- Selectable 1/8″ TRS stereo unbalanced and XLR mono balanced (with 15V phantom power) AUX inputs:
- Microphone input for crowd/ambiance mic or intercom use
- Drum module/metronome or local mix input
- Built-in 5/8″ threaded socket to mount Mixer to any standard mic or desk stand
Hear Back PRO Hub Features
- FIRMWARE V6 or later:
- Allows 32-channel digital input cards (e.g. Dante, Waves, MADI)
- Up to 32 input channels per Hub
- Multiple Hubs daisy-chain for up to 128 input channels
- Mix and match input types (ex. Dante and Analog)
- FIRMWARE V1 and V2:
- Three switch selectable 16-channel input sources:
- Input A (Slots 1 & 2)
- Input B (Slots 3 & 4)
- HBus
- Three switch selectable 16-channel input sources:
- Six user-selectable sample rates indicated by LEDs: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz
- Note: Sample rates vary with interface cards:
- Analog, Dante, and AES/EBU – goes up to 192kHz
- ADAT – goes up to 48kHz (SMUX not supported; ex. ADAT will downsample from 192kHz to 48kHz)
- Waves – goes up to 96kHz
- Note: Sample rates vary with interface cards:
- Less than .25 milliseconds total system delay (latency) from analog input to output
- 16 RGB LEDs intuitively display signal/peak levels for channel metering
- Standard CAT5e/6 cabling delivers power and signals to Mixers
- Daisy-chain via HBus for very large systems
- 1 RU chassis
- Modular I/O card-slot configurable mainframe
- Gigabit Ethernet network fabric
- 48V Power Over Ethernet supply
Interface Cards
MADI Input/Output Card
Provides the ability to connect MADI-based audio equipment to a Hear Back PRO Hub for personal monitor mixing or to the WSG Bridge as a conduit for Waves plugins and a bridge between MADI and the Waves SoundGrid or Dante protocols for multi-channel interfacing. Simultaneously transmits and receives 32 channels when used with the Hear Back PRO System or 64 channels when used with the WSG Bridge.
- Compatible with Hear Back PRO Hub and WSG Bridge
- Coax or optional Fiber Optic connections for Input and Output
- Supports 44.1k, 48k, 88.2k, 96k, 176.4k, and 192k sampling rates
- Supports 56-channel and 64-channel framing
Analog Output Card
Can be utilized with the Hear Back PRO or WSG Bridge to provide 8 consecutive balanced channel outputs on a single DB25 connector.
- Connects via a Tascam DA-88 style pinout on a DB25 connector
- Can be paired with any of the Hear Back PRO input card options
- Supports 44.1k, 48k, 88.2k, 96k, 176.4k, and 192k sampling rates
- Can be used with the WSG Bridge to monitor any block of 8 channels from the Waves or Dante inputs
Word Clock Card
Using a precision PLL circuit, the Word Clock Card automatically detects the sampling rate and locks onto the incoming word clock.
- The precise external system clock
- Features both Input and Output BNC connections
- Supports 44.1k, 48k, 88.2k, 96k, 176.4k, and 192k sampling rates
- Compatible with Hear Back PRO and WSG Bridge
Analog Input Card
Allows HB PRO Hub to communicate with any professional analog audio equipment. Provides (8) balanced audio inputs using a standard Tascam DA-88-style pin-out on a DB25 connector. A DB25 to 1/4-inch TRS break-out cable is sold separately unless the Analog input card is purchased as part of the Hear Back PRO Four Pack.
- -10dB pad on each channel allows the user to select +8dB or +18dB maximum input sensitivity level
- Custom input sensitivities available up to +34dB upon special request
- User configurable sampling rates of 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, and 192kHz using jumpers
- (2) analog input cards are required to input 16 channels of audio
- Up to (4) cards can be populated per Hub to allow A/B input switching between (2) banks of 16 channels
Dante card
Allows HB PRO Hub to communicate with any audio equipment using Dante protocol.
- Connects 16 channels of simultaneous audio input and output with other Dante-enabled equipment using a standard Ethernet network connection
- Supports sampling rates of 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, and 192kHz
- (2) cards can be populated per Hub to allow A/B input switching between (2) banks of 16 channels
- Up to (4) cards can be populated to allow A/B input switching as well as a second set of dedicated Dante outputs
ADAT Card
Allows HB PRO Hub to communicate with audio equipment via ADAT protocol.
- Simultaneously sends and receives 16 channels of digital audio
- Backward compatible with the original 8-channel Hear Back system
- (2) optical ADAT TOS-Link inputs, (2) optical ADAT TOS-Link outputs, and (2) RJ45 HearBus outputs (for connecting to the original Hear Back system)
- Supports and automatically locks on to sampling rates of 44.1kHz and 48kHz
- Automatic sampling rate down-conversion is applied on the ADAT and HearBus outputs when the system is running at sampling rates over 48kHz
- (2) cards can be populated per Hub to allow A/B input switching between (2) banks of 16 channels
- Up to (4) cards can be populated to allow A/B input switching as well as a second set of dedicatedADAT outputs
Waves SoundGrid Card
Allows HB PRO Hub to communicate with any pro audio equipment that uses Waves SoundGrid. Our partnership with Waves makes it easy to directly connect the Hear Back PRO system to other high-end audio equipment (including directly out of a PC or Mac using only its Ethernet port).
- Connects 16 channels of simultaneous audio input and output with other SoundGrid-enabled equipment using a standard Ethernet network connection
- Supports sampling rates of 44.1kHz, 48kHz, 88.2kHz, and 96kHz
- (2) cards can be populated per Hub to allow A/B input switching between (2) banks of 16 channels
- Up to (4) cards can be populated to allow A/B input switching as well as a second set of dedicated SoundGrid outputs
AES/EBU Card
Allows HB PRO Hub to communicate with pro audio equipment using multi-channel AES/EBU protocol.
- Tascam DA-88-style pin-out on a DB25 connector for inputting or outputting 16 channels of digital audio
- Jumper settings allow the user to choose whether the card is 16 inputs or 16 outputs
- Supports and automatically locks onto sampling rates of 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, and 192kHz
- DB25 to (8) XLR (each AES/EBU XLR connector supports 2 channels of digital audio) break-out cable is sold separately unless the AES/EBU card is purchased as part of the Hear Back PRO Four Pack
- (2) cards can be populated per Hub to allow A/B input switching between (2) banks of 16 channels
- Up to (4) cards can be populated to allow A/B input switching as well as dedicated AES/EBU outputs
Virtual Mixer Card
Virtual Mixer I/O card for the HB PRO Hub boasts all the features of the HB PRO Mixer and is controlled via the new Hear Back PRO iOS app or another PRO Mixer. The Virtual Mixer card can also be used for talking back at a console.
- All the features of a Hear Back PRO Mixer slimmed down into a card format
- Control via iOS app or from another Hear Back PRO Mixer
- Add a remote stereo-balanced audio output to your existing Hear Back PRO Mixers
- Up to 4 Virtual Mixer cards per Hub (unlimited Hubs can be chained together)
- Volume, PAN, and stereo placement of each audio channel
- Master Volume control
- Auxiliary input volume control
- The intercom transmit volume control and automatic incoming Intercom leveling
- 4 Presets
- Auxiliary 1/8″ Stereo Unbalanced Audio Input
- XLR Balanced Left and Right outputs
- “PAIR” button and LED indicator for easy pairing with a Hear Back PRO Mixer
- Mix 16 or 32 channels of audio for your wireless in-ear or standard-stage monitor rig
- Red/Blue status LED
- All settings are stored upon power failure
Network Card
Provides (8) RJ45 Gigabit Ethernet ports for connecting Hear Back PRO Mixers, PRO Mixer Distros, or other Hear Back PRO Hubs. Each port provides PoE+ power and digital audio over a single Cat6 Ethernet cable that can be run up to 566 feet.
Network Cards can be used with Hear Back PRO Hubs (up to 4 can be populated in a single Hub) or PRO Mixer Distros.
Specifications
| Mixer Aux Input | ||
|---|---|---|
| Line Input Configuration/Impedance: | 1/8″ Stereo, unbalanced, 10K ohms typical | |
| Line Input Level: | 0 dBu optimal, +18 dBu max | |
| Mic Input Configuration/Impedance: | XLR Mono, balanced, 150 ohms typical, 150 Hz high pass | |
| Mic Input Level: | -42 dBu optimal, -30 dBu max | |
| Mixer Headphone Power | ||
| Load Impedance: | THD less than 0.01%* | THD less than 0.1% |
| 8 Ohms: | 1.2 W* | 1.5 W |
| *THD AT 8 Ohms = 0.015% typical | ||
| 16 Ohms: | 1.6 W | 1.8 W |
| 25 Ohms: | 2.0 W | 2.2 W |
| 32 Ohms: | 1.8 W | 2.0 W |
| 50 Ohms: | 1.5 W | 1.6 W |
| 100 Ohms: | 1.1 W | 1.2 W |
| 200 Ohms: | 500 mW | 650 mW |
| 600 Ohms: | 220 mW | 250 mW |
| IMD: | Typically Less than 0.03% | |
| Mixer Line Output | ||
| Freq Response: | 20 Hz to 20 KHz, +/-0.15 dB | |
| THD+N: | 0.004% typical at 1 kHz, +15 dBu | |
| 0.008% typical, 20 Hz – 20 kHz, +4 dBu | ||
| IMD: | 0.02% typical at +4 dBu, 60 Hz / 7 kHz | |
| Crosstalk: | Less than -93 dB @ 1 kHz | |
| Propagation Delay: | ||
| – Analog Input to Analog Output: | 0.248 mSec @ 192 kHz sample rate | |
| – Digital Input to Analog Output: | 0.092 mSec @ 192 kHz sample rate | |
| – Digital Input to Digital Output: | 0.0452 mSec @ 192 kHz sample rate | |
| – Audio over Ethernet Protocol (HBUS): | 0.000592 mSec | |
| System Noise Performance | ||
| Noise, A-Weighted: | -93 dBu @ 192 kHz sample rate | |
| Dynamic Range: | 117 dB typical | |
| System I/O | ||
| Hub Line In, Analog: | 8 balanced inputs on a DB-25 female (DA-88 pinout) per Analog Card | |
| Hub Maximum Input Level, Analog: | +8 dBu with analog card pad jumpers populated, +18 dBu with jumpers removed (up to +38dBu upon special request) | |
| Hub HBus In, Out: | 8-pin RJ45 jack (standard Ethernet pinout) | |
| Hub USB Port: | USB 2.0 (for firmware updates and editing configuration settings) | |
| Hub Card Slots (4x): | Each slot can accept an analog or digital input card, output card, or 8 port Mixer network card | |
| Mixer to Hub Connection: | 8-pin RJ45 jack (8x Mixer connections per network card) | |
| Mixer Headphone Out: | 1x TRS 1/4″ and 1x TRS 1/8″ unbalanced stereo | |
| Mixer Line Out: | 2x TRS 1/4″ balanced (left/mono and right) | |
| Mixer Max Output Level, Analog: | +24 dBu (mixed output) | |
| Mixer Aux Input: | 1x TRS 1/8″ unbalanced stereo and 1x XLR balanced mono (with 15 volts phantom power) | |
| Mixer Card Slot: | For future digital or analog input/output expansion capabilities or side-car add-on | |
| Physical, Mixer | ||
| Size: | 9.5″ (241 mm) H x 5.95″ (152 mm) W x 2.71″ (68.8 mm) D | |
| Unit Weight: | 1.6 lb. (0.72 kg) | |
| Mounting: | Standard mic stand (5/8″ 27 threads per inch) or desk mounted | |
| Physical, Hub | ||
| Size: | 1.75″ (44.5 mm) H x 19″ (483 mm) W x 8.5″ (216 mm) D | |
| Unit Weight: | 6.3 lb. (2.8 kg) | |
| Mounting: | Standard rack mount, 1 RU | |
| Power | ||
| Hub Power Requirements: | 48VDC, 150 Watts (each external power supply powers up to 16 Mixers)** | |
| Mixer Power Requirements: | Power over Ethernet (PoE) 36-52 volts DC, 15 Watts max provided by Hub through Cat5e/6 network cabling | |
| External Power Supply Requirements: | Input Voltage: 90VAC to 264VAC 50/60 Hz | |
Cabling, Mixers and HBUS
CAT6*** cables used for Mixers or for HBUS can be run up to 500 feet in ideal conditions (one piece of solid conductor CAT6 with no breaks or couplings). The more breaks/connections/couplings in a cable run, the more limited this distance will be. Poor quality cabling will also limit the maximum distance.
Note: 0 dBu = 0.775 Vrms. Specifications and features are subject to change without notice.
**Hub is capable of powering up to 32 Mixers with an additional power supply.
***Cable complying with the National authorities (cable with an outer jacket or sleeving rated VW-1 or better).
Reviews
There are no reviews yet.
