Description

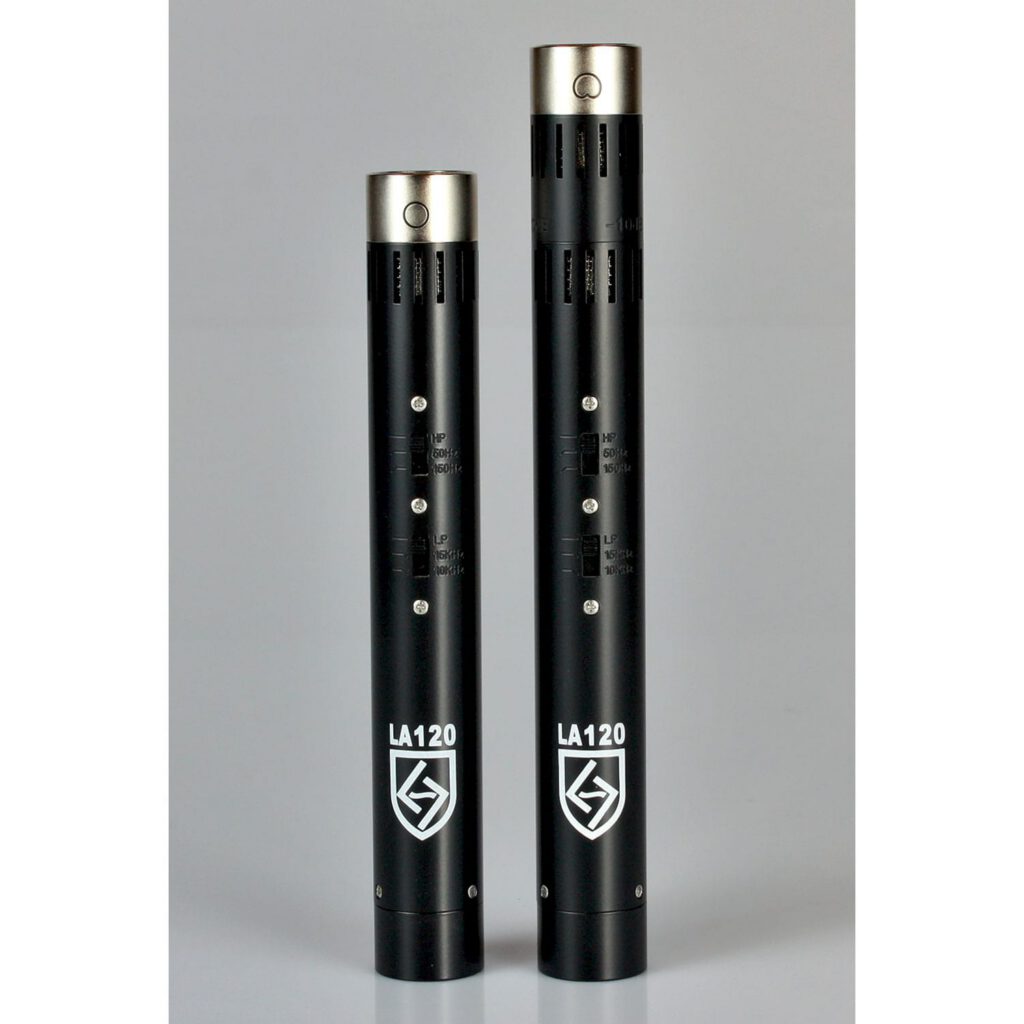

Lauten Audio LA120 Microphone Inline Pair
SMALL DIAPHRAGM CONDENSER
The Lauten Audio LA120 is a transformerless and sonically flexible, small-diaphragm condenser microphone for recording and live sound applications. This dynamic and transparent design is equipped with two dedicated filters for analog sound-shaping at the source, and ships with interchangeable capsules for added sonic flexibility. Unlike traditional microphone designs that utilize a transformer to introduce color and saturation, the LA-120 utilizes a USA-made JFET to capture the uncolored vibrance and character of an instrument with life and authenticity.
ONBOARD SOUND-SHAPING
Immediate analog sound-shaping comes courtesy of the LA-120’s two onboard filters. These allow you to shape sounds at the source, removing the need to change microphones to get the sound you want. Add warmth and weight to anemic percussion or remove harshness and boominess from an acoustic guitar at the flip of a switch.
QUALITY CAPSULES
A microphone’s capsule captures music’s most meaningful moments and converts them into electricity with relentless results. Our hand-tuned 17mm capsules provide a natural, vibrant timbre without the harshness often found in affordable microphone designs. This makes it an ideal choice for use on drums, acoustic guitar, choir, orchestra, and piano.
SELECTABLE POLAR PATTERNS
Cardioid capsules focus the LA-120’s attention directly on where it is pointed, reducing the overall sound of the room in a recording.
Omnidirectional capsules allow the sound of the room or other off-axis instrumentation to be captured in a more open and natural manner.
TRANSFORMERLESS TRANSPARENCY
Instead of utilizing a transformer to color its sound, the LA-120 is built around a low noise USA-made JFET, which allows it to capture the transient dynamics and true character of a sound source with realism and authenticity.
PREMIUM COMPONENTS
The LA-120 signal path is populated with high resolution, low distortion polypropylene capacitors, resistors, and a US-made JFET for dynamic, articulate, and uncolored performance.
IN THE BOX
2X CARDIOD CAPSULES / 2X OMNI CAPSULES / 2X STAND MOUNTS / 2X FILTERS
SPECIFICATIONS & DIAGRAMS
TYPE
TRANSFORMERLESS CONDENSER
CAPSULE
17MM PRESSURE GRADIENT
POLAR PATTERNS
CARDIOID & OMNIDIRECTIONAL
FREQ. RESPONSE
20HZ – 20KHZ
DYNAMIC RANGE
120DB MINIMUM
MAX. SPL
0.5% THD@1000HZ: 130DB
IMPEDANCE
<200 OHMS
SELF-NOISE LEVEL
< 15DB-A
SENSITIVITY
10MV/PA -40DB (0DB=1V/PA 1KHZ)
CONNECTOR
3-PIN XLR
POWER
REQUIRES 48V PHANTOM POWER
