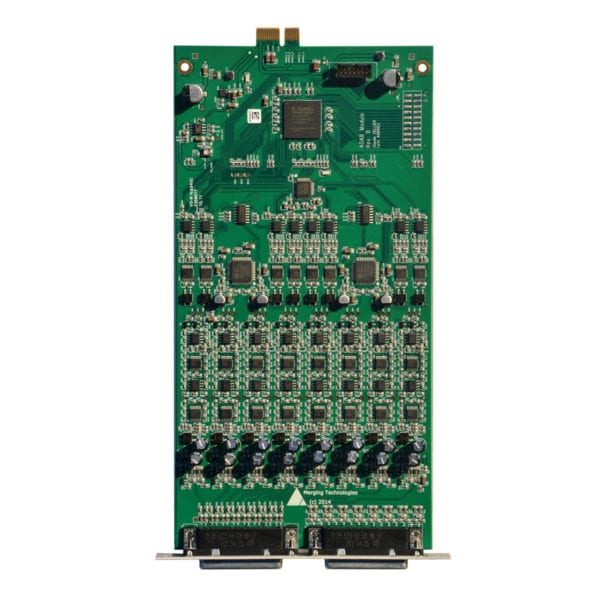

Merging Technologies ADA8S
These remotely controlled Mic/Line Input and Output cards are 3rd generation Dual Gain topology designs, inspired from the Anubis outstanding Preamps, that show zero tolerance to any compromise on the audio quality.
Available in models that work up to 192kHz (ADA8S) and DXD/DSD256 (ADA8P). Using those combined 8 channel Mic/Line In and Line Out cards allow the Hapi to be configured with up to 16 channels of Analog In/Out.
Features:
- 8 x exceptionally transparent, Swiss-designed pre-amplifiers
- Remote/Local switch to Line Level on a per-channel basis
- Completely accessible remotely for all parameter changes
- Phantom Power/Polarity Invert/Low Cut/Impedance switchable per channel
- The dynamic range of 139dB (A-weighted, type) on the Line inputs
- Auto-mute circuitry for “no-pop” power cycling
- Digitally controlled output trims for line up procedures
- Dynamic range of 125dB (ADA8S), 126dB (ADA8P) (A-weighted, type.) on the Line outputs
ADA8S/ADA8P OPTION CARD
Mic Pre-Amp + ADC Section
| Mic Pre Max Input (Mic+Pad / Mic / Mic Boost) | +24 dBu / +12 dBu / +0 dBu |
| Input Impedance (Differential, Software Switchable Per Channel) | 3 kΩ / 10.4 kΩ |
| Frequency response +0/-0.3dB @ fs = 48 kHz | 9 Hz – 22 kHz |
| Frequency response +0/-0.3dB @ fs = 96 kHz | 9 Hz – 46 kHz |
| Frequency response +0/-0.3dB @ fs = 192 kHz | 11 Hz – 94 kHz |
| Dynamic Range (A-weighted, typ.), ref +12 dBu | 137 dB |
| Dynamic Range Mic Boost (A-weighted, typ.), ref 0 dBu | 128 dB |
| Gain Range (software controlled) | 0 dB to +66 dB |
| THD+N Pre + A/D (20 Hz – 20 kHz) @ -2 dBFS | < -111 dB (0.00028 %) |
| Interchannel Crosstalk @ 1kHz | < -130 dB |
| EIN @ > 40 dB Gain (150Ω Source Impedance, A-weighted) | < -127 dB |
| Common Mode Rejection Rate (20 Hz – 20 kHz) | > 75 dB |
| Phantom Power (Software Switchable Per Channel) | +48V |
| Polarity Invert (Software Switchable Per Channel) | YES |
| Low Cut filter (Software Switchable Per Channel) | -12 dB/octave, 80 Hz |
Line Input
| Max Line Input for 0 dBFS | +24 dBu |
| Input Impedance (Differential) | 10.4 kΩ |
| Dynamic Range (A-weighted, typ), ref +24 dBu | 139 dB |
| THD+N Line+A/D (20 Hz – 20 kHz) @ -2 dBFS | < -111 dB (0.00028 %) |
| Interchannel Crosstalk @ 1kHz, typ. | < -135 dB |
| Sensitivity Range for 0 dBFS (software controlled) | -42 dBu to +24 dBu |
| Gain Step | 0.5 dB |
| Common Mode Rejection Rate (20 Hz – 20 kHz) | > 70 dB |
| Connector Pinout | DB-25 / AES59 (Tascam Ana.) |
Line Output Section
| Max Output level software switchable for 0 dBFS | +24 dBu / +18 dBu +0/-0.5 dB |
| Frequency response +0/-0.3dB @ fs = 48 kHz | 6 Hz – 22 kHz |
| Frequency response +0/-3dB @ fs = 96 kHz | 6 Hz – 46 kHz |
| Frequency response +0/-3dB @ fs = 192 kHz | 6 Hz – 92 kHz |
| Output Impedance (Differential) | < 80 Ω |
| Dynamic Range (A-weighted, typ.) | 125 dB / 126 dB |
| THD+N (1 kHz) @ 0dBFS | < -115 dB (0.00017 %) |
| Interchannel Crosstalk @ 1kHz | < -139 dB |
| Connector Pinout | DB-25 / AES59 (Tascam Ana.) |
Latencies
| Input latency at 44.1/48kHz | 8 samples |
| Input latency at 88.2/96kHz | 8 samples |
| Input latency at 176.4/192kHz | 8 samples |
| Input latency at DXD/384kHz | 10 samples |
| Output latency at 44.1/48kHz | 9* samples |
| Output latency at 88.2/96kHz | 9* samples |
| Output latency at 176.4/192kHz | 9* samples |
| Output latency at DXD/384kHz | 9* samples |
| * Filter setting – Slow Roll Off Filter option = 9 Samples – Sharp Roll Off Filter option = 38 Samples |
