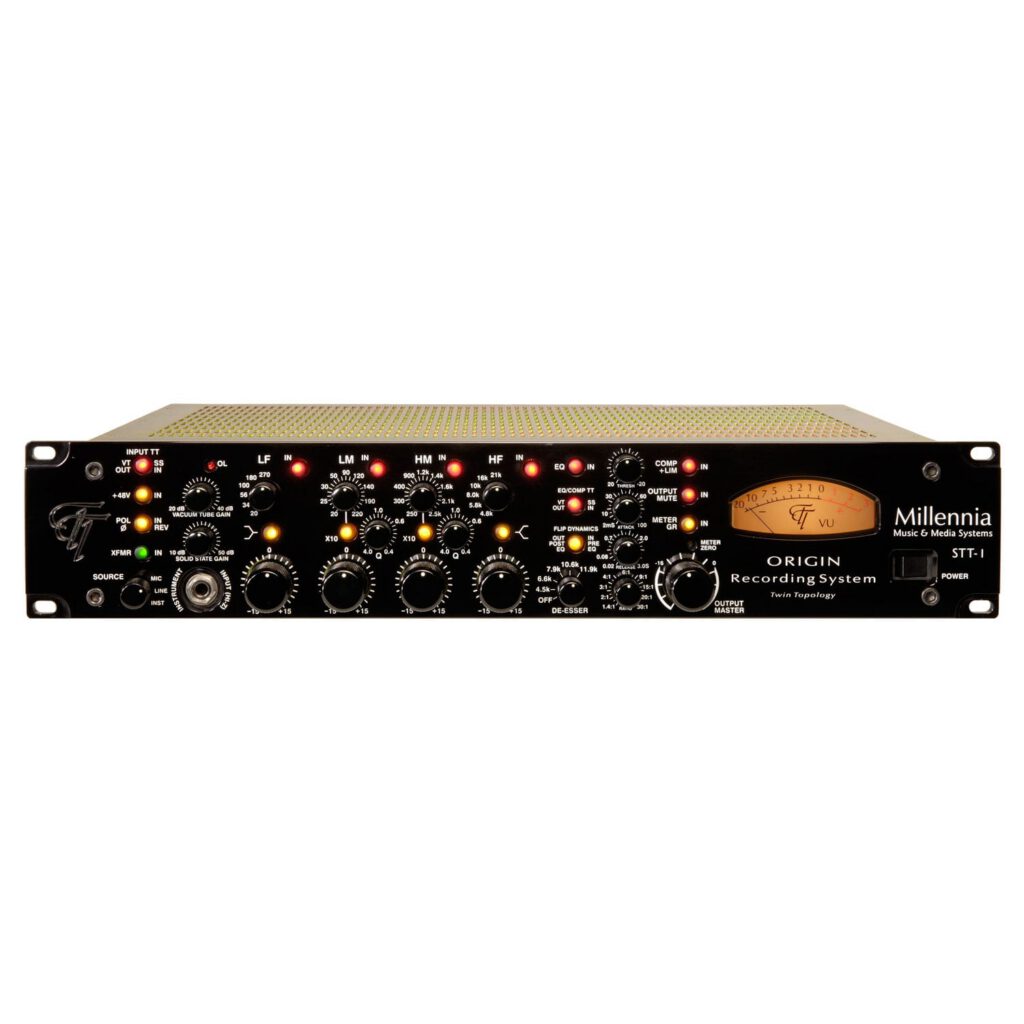

Millennia STT-1
Over 130 Optimized Signal Topologies
- Twin Mic Preamps — M-2B vacuum tube or HV-3 discrete solid state
- Twin NSEQ-2 Mastering-Grade Parametric EQs — vacuum tube or discrete solid state
- Three Opto Compressor/Limiter Paths — TCL vacuum tube, discrete solid state, passive
- Twin Opto De-Esser Paths — vacuum tube or discrete solid state
- Vacuum tube or discrete solid state line level paths
- Input coupling with or without MIT-01 audio transformer
- 1/4” vacuum tube DI input — route via a tube or solid-state gain path
- Effortless, lifelike musical performance at all levels
- Musically rich vacuum tubes are available
- Gold audio connectors, tube sockets, relays, and switches
- 3/8“ thick radius extruded aluminum face plate
- Durable black laser-etched anodized finish
- Mil-spec 16 gauge cold-rolled steel chassis
- Ultra-clean toroid power supply: internal sub-chassis
- Hand machined aluminum knobs, illuminated IT&T pushbuttons
- True audio VU meter for output level or dynamics gain reduction
- Lovingly hand-crafted in Northern California
Specifications
| Microphone Preamplifiers & General: | |
| Twin Topology Mic Preamplifier Selection | Switchable, Vacuum Tubes or Solid-State |
| Twin Topology EQ & Compressor | Switchable, Vacuum Tubes or Solid-State |
| Twin Topology Input Coupling | Switchable, Transformer or Transformerless |
| Maximum Output Level (Balanced) | + 32 dBu |
| Frequency Response (+0 / -3 dB (S/S)) | sub 5 Hz to beyond 300 kHz |
| Equivalent Input Noise | -131 dBu (SS, Common Source, Direct Out) |
| THD + Noise (20 Hz – 22 kHz) (S/S) | < .05 %, typ < .003 % |
| Common Mode Rejection Ratio (S/S) | > 40 dB, Typ > 70 dB @ 60 Hz |
| Input Impedance (Mic) | 6,200 ohms |
| Input Impedance (Line) | 2,200 ohms (x2) |
| Input Impedance (DI – Instrument) | > 1 megohm |
| Output Impedance (Balanced) | 24.3 ohms (x2) |
| Parametric Equalizer: | |
| Maximum EQ Boost/Cut Range (21 Step Detented) | +/- 15 dB |
| EQ Frequencies,Low Range Switch (Centers – Peak/Shelf Selectable): | 20, 34, 56, 100, 180, 270 |
| Low Mid Sweep: | 20 Hz – 220 Hz or 200 Hz – 2.2 kHz. 10X Range switch selectable |
| Hi Mid Sweep: | 250 Hz – 2.5 kHz or 2.5 kHz – 25 kHz. 10X Range switch selectable |
| High Range Switch (Centers – Peak/Shelf Selectable) | 4.8 k, 5.8 k, 8.0 k, 10 k, 16 k, 21 k |
| “Q” Range | Q = 0.4 to 4.0 Adjustable on middle ranges |
| Q = 1.0 Fixed on low & high ranges | |
| Optoelectronic Compressor/Limiter | |
| Threshold Range | Infinite to +20 dBu |
| Attack Range | 2 ms to 100 ms |
| Release Range | 80 ms to 3.0 s |
| Compression Ratio Range | minimum 1.4 : 1, maximum 30 : 1 |
| De-Essing Frequency Switch | OFF, 4.9 k, 6.8 k, 8.2 k, 10.7 k , 12.0 k |
| Power Consumption | 50 watts maximum |
| Power Requirements | Selectable: 100-120, 200-240 V ac, 50/60 Hz |
| Dimensions/Shipping Weight | 19” W x 3.5” H x 15.5” D, 25 lbs. |
