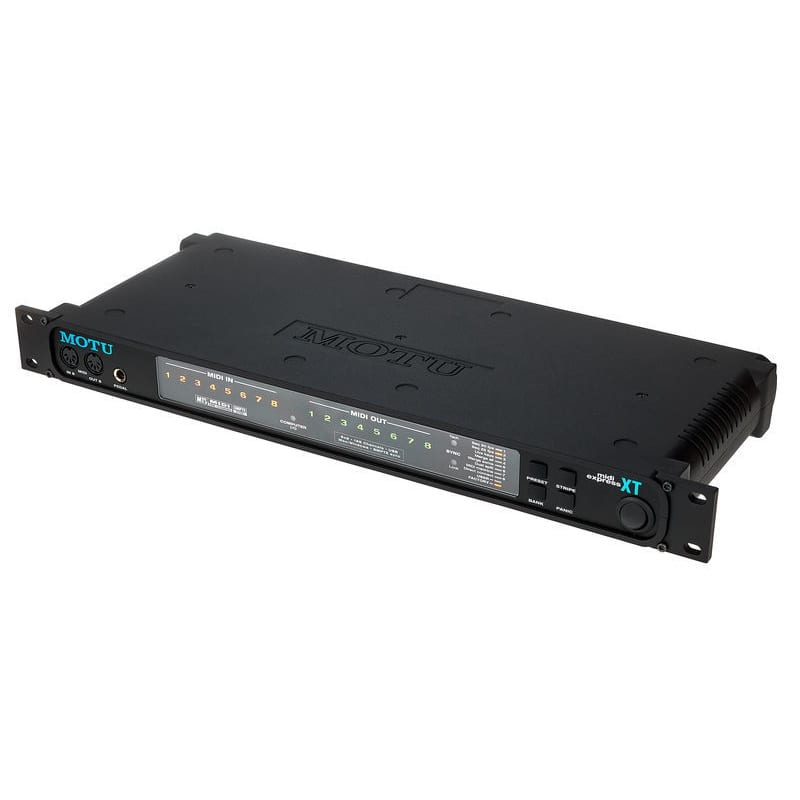

MOTU MIDI Express XT

Description

8-in/8-out MIDI interface, patchbay, and merger with time code sync

THE EXPRESS XT NOW INCLUDES:

Support for 23.976-time code*
Updated ClockWorks software

Built with MOTU’s award-winning MIDI interface technology, the MIDI Express XT is a professional MIDI interface and SMPTE synchronizer that provides plug-and-play connectivity to any USB-equipped Mac or Windows computer.

The Express XT provides 8 MIDI IN, 9 MIDI OUT, 128 MIDI channels, and compatibility with all Mac and Windows software. Sixteen convenient, one-touch presets (8 factories and 8 users programmable) give you instant front-panel access to multiple operational configurations.

The included ClockWorks™ console software for Mac OS X and Windows provides comprehensive MIDI routing, merging, and muting.

As a professional-grade SMPTE time code synchronizer, the Express XT converts and strips SMPTE in all frame formats (23.976*, 24, 25, 29.97 drops and non-drop, and 30). SMPTE “jam sync” with adjustable freewheeling provides glitch-free sync.

The Express XT also supports MIDI Machine Control (MMC), with the ability to serve as either an MMC master or slave. The Express XT can distribute MMC transport commands to all other connected MMC devices.

Connect a foot switch to the convenient front-panel pedal input and then program it to generate MIDI data when pressed. Send the data to any connected devices. For example, you could send MIDI patch changes to synths and sound modules during live performance.

The MIDI Express XT takes full advantage of USB, giving you high-speed MIDI throughput, sub-millisecond timing accuracy, support for “hot-swapping” and plug-and-play expansion. Need to connect another sound module or synth? No problem. Just add another MOTU USB MIDI interface via any available USB port. And Express XT’s internal international power supply delivers reliable performance and professional operation.

No other MIDI interface offers this much value and performance at such an affordable price.

Feature Highlights

USB MIDI interface for Mac and Windows
Stand-alone MIDI patchbay/merger/processor
SMPTE time code sync in all formats (includes new support for 23.976 fps time code*)
8×8 MIDI merge matrix: connects any device to any other
16 front panel presets
8 independent MIDI IN
8 independent MIDI OUT (9 output connectors)
128 MIDI channels
Supports MIDI Machine Control
Pedal input for momentary foot switch
16 presets with 8 programmable, battery-backed memory
MIDI Time Stamping (MTS) for sub-millisecond timing accuracy
Includes updated drivers and ClockWorks™ software for Mac and Windows
Internal Power Supply

MIDI and Sync

MIDI Processing

Merge any inputs to any outputs
Route any inputs to any outputs
Mute any MIDI data on any cable
Re-channelize on input and output

Synchronization

SMPTE time code (LTC) generator and reader
Converts LTC to MIDI Time Code (MTC) to sync a Mac, PC, or any other device to SMPTE time code
Converts all SMPTE frame rates (23.976*, 24, 25, 29.97 drops, 29.97 non-drop, 30)
Stripes SMPTE time code in all frame rates (23.976*, 24, 25, 29.97 drops, 29.97 non-drop, 30)
Converts MIDI Time Code to SMPTE time code
SMPTE “Jam Sync” with adjustable freewheeling for dropout-free sync
Supports MIDI Machine Control – serves as either an MMC master or slave, distributes MMC transport commands to all other MMC devices

Specifications

Custom-designed VLSI technology
Front panel buttons and LEDs for choosing presets (8 factory, 8 user)
Front panel SMPTE stripe button
Front panel SMPTE lock and tach LEDs
Status lights for MIDI IN/OUT and computers
Front panel MIDI IN and OUT ports
Panic button
17 MIDI connectors
2 SMPTE quarter-inch phone (line level)
1 pedal quarter-inch phone input
1 IEC power connector (switchable 115V – 220V)
Includes: Software console for Macintosh and Windows, power cord, USB cable
Chassis dimensions, excluding rack ears: 19 × 7 × 1.75 inches (48.26 × 17.78 × 4.45 cm). With rack ears attached, fits a standard 19-inch (48.26 cm) rack at 1U high.
