Description

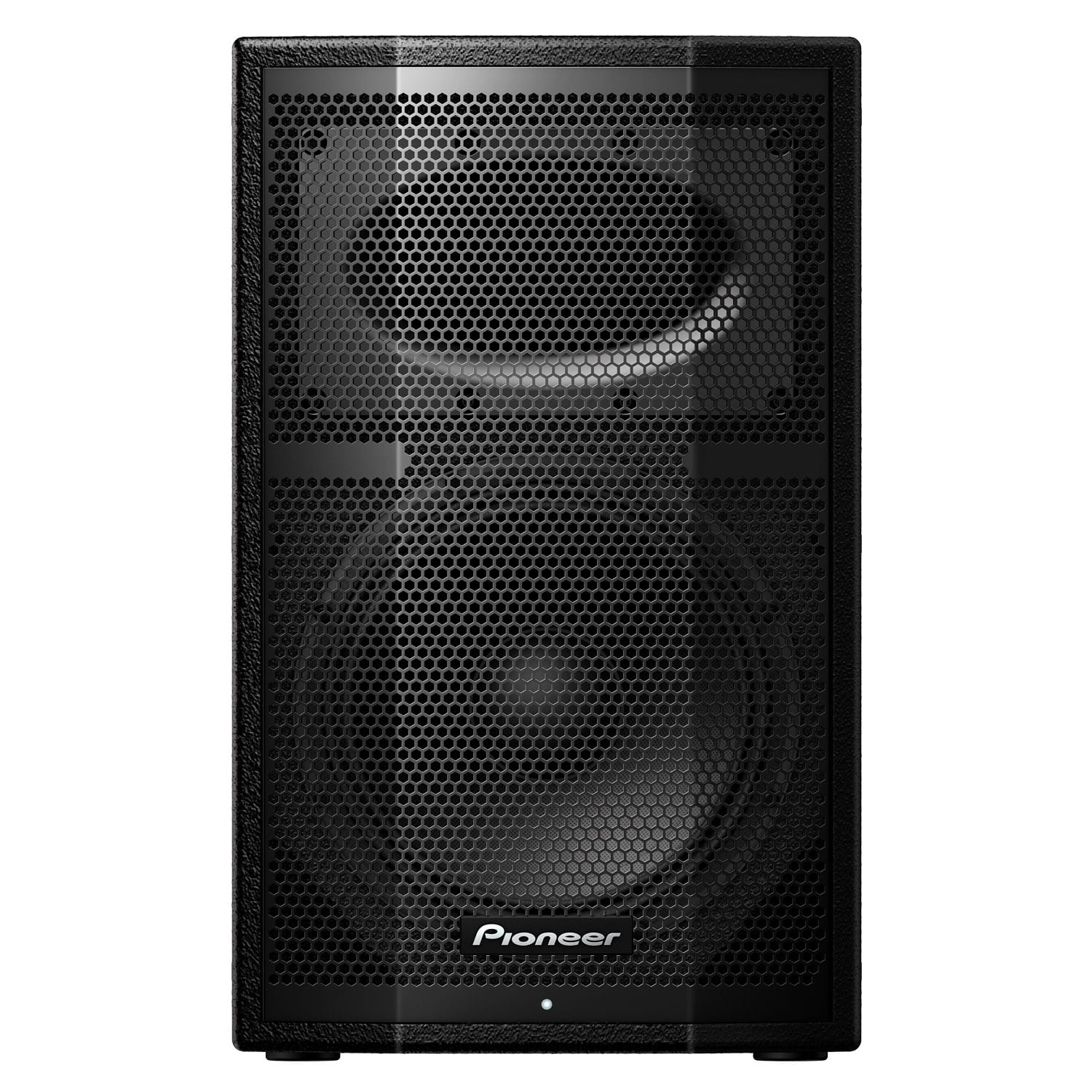

Pioneer DJ XPRS10
Natural Expression
The XPRS Series active PA speakers are compact and portable, yet high-powered. Forget complicated setups and tangled cables as this system offers straightforward, plug-and-play use. Pioneer Pro Audio sound engineering technology and the use of Powersoft amps ensure these mobile speakers are reliable and energy efficient, making them suitable for all music genres and environments.
The XPRS10 single PA speaker combines a 10-inch ferrite LF driver, a 1.75-inch titanium diaphragm compression driver, and Pioneer Pro Audio’s AFAST technology to deliver crystal clear audio with a deep bass range. Being compact, plug-and-play, and easy to transport, this speaker is a reliable partner on the road, for any venue.
*The XPRS10 is sold as a single speaker.
Key features
Natural, full-range sound
The 15-mm birch plywood cabinet, 10-inch ferrite LF driver, and 1.75-inch titanium diaphragm compression driver reproduce a clean, full-range sound with low distortion, even at high outputs. Plus, the XPRS10’s compact horn sounds bright and clear.
Powersoft Class D amps
Powersoft’s Class D amp modules produce 2400 W (peak) or 1200 W (continuous) output. The Power Factor Correction (PFC) reduces power consumption while ensuring steady performance in all environments.
AFAST acoustic tube
Pioneer Pro Audio’s AFAST technology drastically reduces standing waves that can produce a muffled response in the low to mid ranges. An acoustic tube in the cabinet absorbs only the standing waves, increasing the low-to-mid frequency response.
4 EQ modes
Adapt to a variety of genres and environments using the rotary selector switch on the back of the speaker to give you instant access to 4 EQ modes: Flat, Bass +, Speech and Wedge.
Advanced protection
The XPRS speaker is packed with features to protect the drivers, amp, and power supply into the Amplifier module – giving you peace of mind, consistent high-quality sound, and extending the life of your sound system.
Flexible connectivity
2 balanced XLR/TRS combo sockets and an unbalanced RCA connection mean you can connect at the same time a Mic and other devices, such as line-level mixers or portable audio players.
Other Features
The durable, birch plywood enclosure keeps your PA speaker safe, while carefully placed handles take the hard work out of transit and set-up.
Auto-ranging power supply
Plug in the XPRS Series anywhere in the world – including venues with generators or temporary power supplies. They will detect and adapt to the voltage without compromising the sound quality.
Up to a 7-year warranty
We’re extending the free warranty period for the XPRS Series active speakers. You can now receive up to 7 years of coverage by registering your products online within 90 days of your purchase. Please review the warranty statement for a full list of terms and conditions.
Specifications
Main Features
What’s in the box |
|
|---|
Specifications
Frequency Range | 55 – 20000 Hz |
|---|---|
Width | 12.6 in |
Height | 20.47 in |
Depth | 14.72 in |
Weight | 41.67 lb |
System characteristic
Maximum Sound Pressure | 134 dB |
|---|---|
Cross Over Frequency | 2 kHz |
Terminals
Inputs |
|
|---|---|
Outputs |
|
Amplifier
Amplifier Output |
|
|---|---|
Impedance | 10 kΩ |
Speaker
Driver |
|
|---|---|
Enclosure | 15 mm birch plywood |
