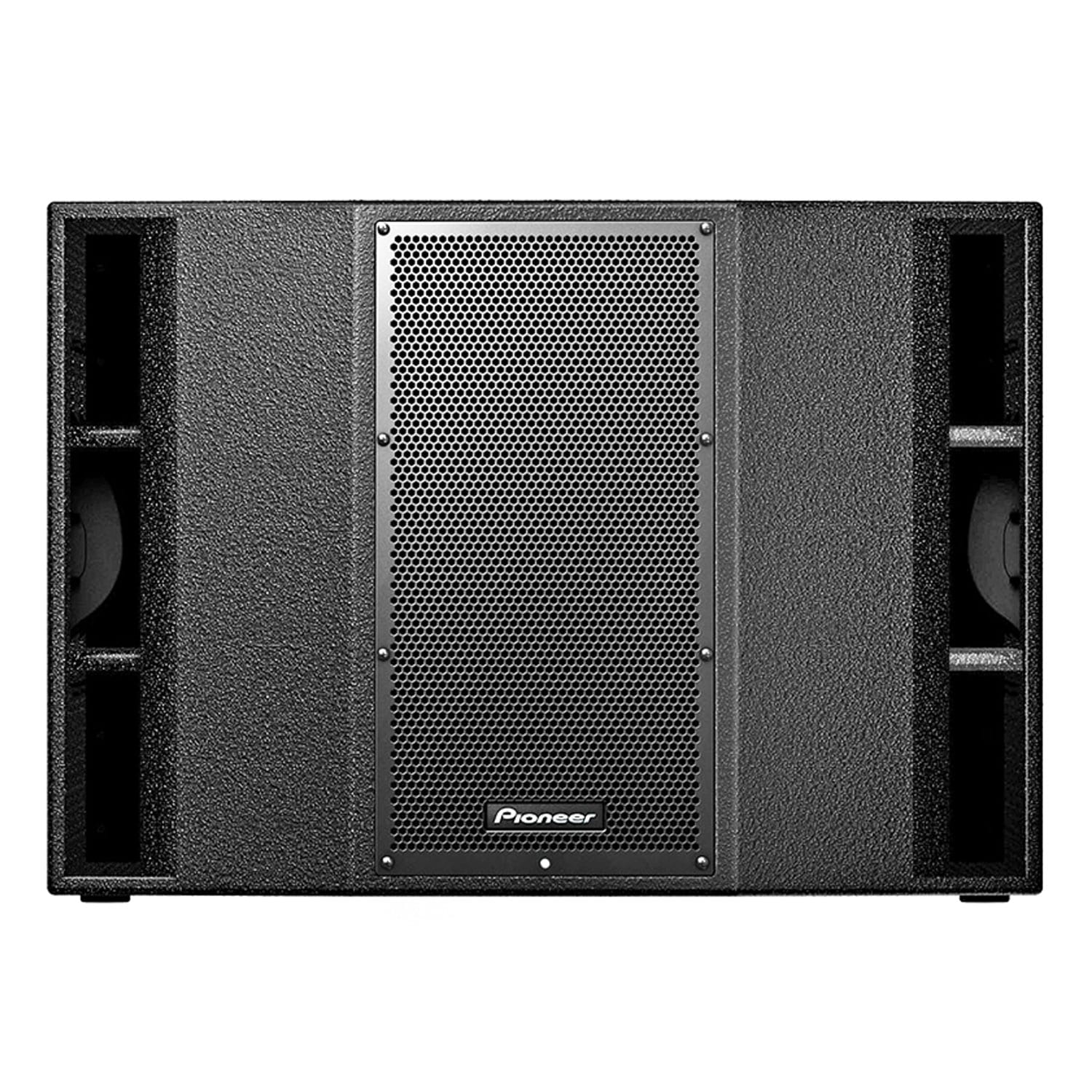

Pioneer DJ XPRS215S
Control your bass
The XPRS Series active PA speakers are compact and portable, yet high-powered. Forget complicated setups and tangled cables as this system offers straightforward, plug-and-play use. Pioneer Pro Audio sound engineering technology and the use of Powersoft amps ensure these mobile speakers are reliable and energy efficient, making them suitable for all music genres and environments.
Enhance your lower frequencies with the quick and powerful bass response of the XPRS215S subwoofer. The sub’s built-in horn shape and dual 15-inch, high-grade ferrite LF drivers deliver rich, powerful low frequencies, while the Crossover and Phase switches allow you to control your DSP settings effortlessly.
* The XPRS215S is sold as a single subwoofer.
Key features
Double the bass
The XPRS215S’ birch hardwood cabinet encloses two 15-inch LF drivers and a built-in horn shape to deliver rich, powerful low frequencies, no matter the event or the setting.
Powersoft Class D amps
Powersoft’s Class D amp modules produce 2400 W (peak) or 1200 W (continuous) output. The Power Factor Correction (PFC) reduces power consumption while ensuring steady performance in all environments.
Instant control
A versatile Crossover switch lets you adjust the low pass filter cut-off at stages between 80 Hz and 150 Hz. At the same time, the Phase switch allows you to choose a positive or negative polarity to prevent multiple subwoofers from canceling each other out.
Advanced protection
The XPRS subwoofer is packed with features to protect the drivers, amp, and power supply – giving you peace of mind, consistent high-quality sound, and extending the life of your sound system.
Flexible connectivity
The subwoofer has 2 balanced XLR/TRS combo sockets so you can input a couple of devices at the same time. Plus 2 balanced XLR through outputs enable easy connection to other speakers and subs.
Other Features
Designed for the road
The durable, birch plywood enclosure keeps your subwoofer safe, while castors on the back of the sub and carefully placed handles take the hard work out of transit and set up.
Auto-ranging power supply
Plug in the XPRS Series anywhere in the world – including venues with generators or temporary power supplies. They will detect and adapt to the voltage without compromising the sound quality.
Up to a 7-year warranty
We’re extending the free warranty period for the XPRS Series active speakers. You can now receive up to 7 years of coverage by registering your products online within 90 days of your purchase. Please review the warranty statement for a full list of terms and conditions.
Specifications
Main Features
What’s in the box |
|
|---|
Specifications
Supported voltages |
|
|---|---|
Frequency Range | 40 – 160 Hz |
Width | 29.25 in |
Height | 20.63 in |
Depth | 31.93 in |
Weight | 123.24 lb |
System characteristic
Maximum Sound Pressure | 135 dB |
|---|
Terminals
Inputs | 2 XLR/TRS Combo (balanced) |
|---|---|
Outputs | 2 Through output XLR (balanced) |
Amplifier
Amplifier Output |
|
|---|---|
Impedance | 10 kΩ |
Speaker
Driver | 15-inch ferrite LF cone driver |
|---|---|
Finish |
|
Handle | 4 (on both sides) |
Pole socket | M20 screw socket |
Enclosure | 15 mm birch plywood |
Protection
Amplifier Protection |
|
|---|---|
Driver Protection |
|
Power unit Protection |
|
