Description

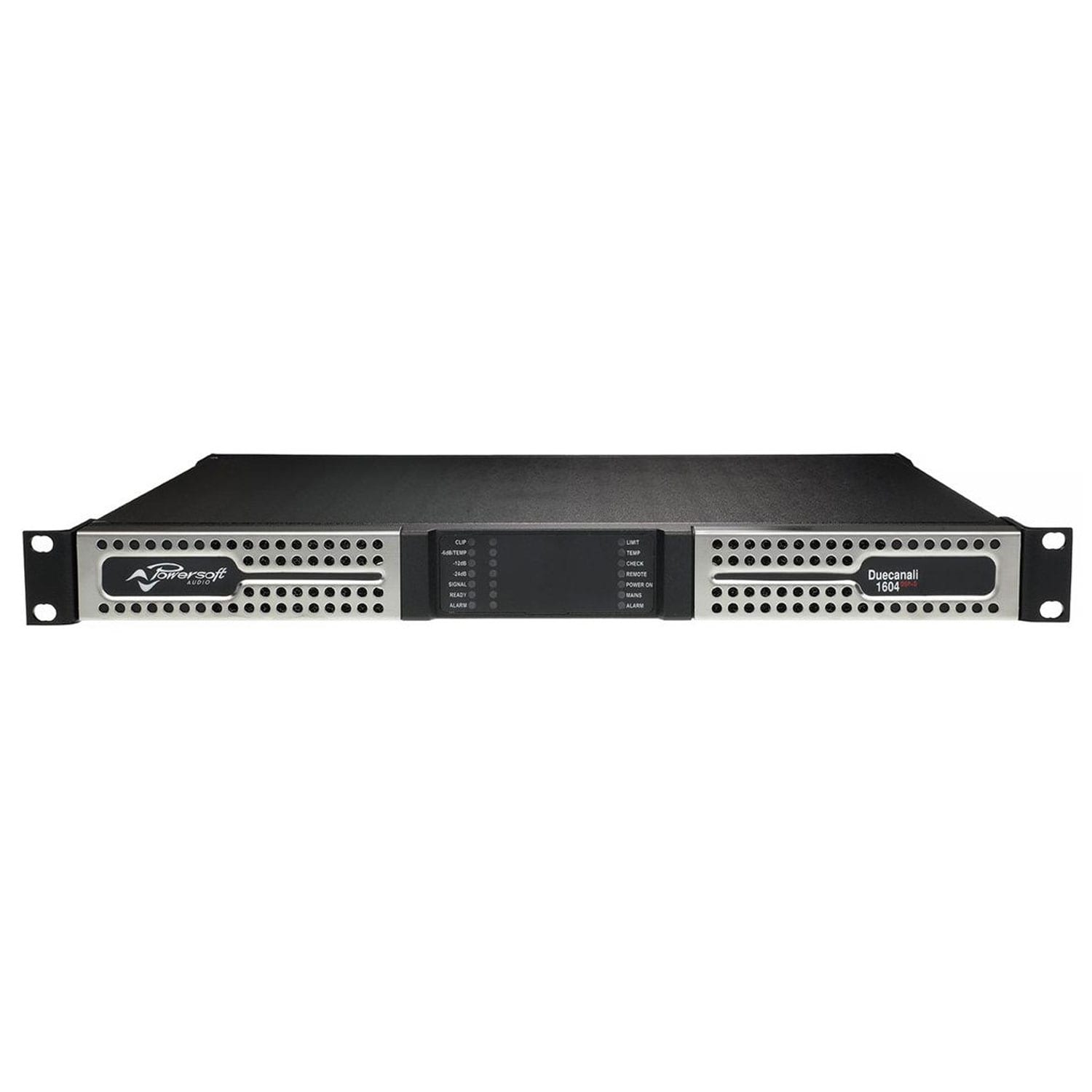

Powersoft Amplifiers Duecanali 1604 DSP+D

Overview

The ability to implement any configuration with ease makes the Duecanali series extremely flexible. Powersoft’s legendary efficiency saves valuable energy, keeping both operational cost and ‘carbon footprint’ at a minimum.

The Duecanali 1604 DSP+D is designed to work with Lo-Z (from 2 Ω ) and with 70V/100V distributed lines: any mixed impedance output loads can be realized.

A fully integrated state-of-the-art DSP yields extensive system management functionality. In addition to sound shaping and limiter functions in a unique Powersoft style, the DSP hardware and ArmoníaPlus software enable compliance with IEC 60849 for the crucial requirements of sound systems for emergency purposes.

MyPowersoft services are available for this product

Features

Power supply

Powersoft legendary universal switch-mode power supply up to 400VAC tolerant with Power Factor Correction
Patented output filter with ripple cancellation network
Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for the USA) socket

Protections

Fully protected circuit design with:

Ac protection: shut down the power supply when AC mains voltage is outside the operating range
Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
DC protection: protects against infrasonic signal at the outputs
VHF protections: protects the loudspeakers against non-audible, strong, non-musical high-frequency signals
Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
Long-term limiter: protects the loudspeaker against steady long-term RMS (non-audio) signals, by reducing the maximum output
Thermal protection: output stages operating temperature up to 80 °C (176 °F)
Temperature-controlled continuous variable speed fan, front-to-back airflow
Temperature forecast with LCD traced historical behavior

General

Fixed frequency switchmode output stage for high-grade sound accuracy
Compact size – all models only 1 RU for reduced rack cost and space
Lightweight – for easier racking and shipping: 7 kg (15.4 lbs)
Standard Phoenix connectors: analog audio outputs, aux supply, alarms and GPIO
Remotely switchable double input (main and aux) per channel

Loudspeaker system configuration

Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
Switchable 35Hz / 70Hz high pass filter per channel
Mixed configuration with Lo-Z/Hi-Z systems possible
Bridged mode low impedance per channel pair

Alarms and GPI/O

NC/NO contacts per channel for alarm notifications
Remote ON/OFF switch
Remote VCA control per channel

Digital Signal Processing

TI C6000 DSP platform
AD/DA converter: dual 24bit @ 48 kHz Tandem® architecture
Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters
Delay up to 100 ms for time alignment
Active DampingControl™ for cable compensation
Peak, RMS voltage, RMS current, TruePower™ limiters

Remote Control & Monitoring

Via software:

Control and diagnostics monitoring via ArmoníaPlus
Dedicated WebApp

Via Hardware:

Attenuation (from 0dB to 26dB)
High-pass filters (35Hz, 70Hz)
Lo-Z/Hi-Z/70V/100V output selection
Adjustable gain (from 26dB to 35 dB)

Specifications

GENERAL
Output power per Channel
Output power per Channel	1000 W @ 2 Ω	800 W @ 4 Ω	800 W @ 8 Ω
Bridge mode		2000 W @ 4 Ω	1600 W @ 8 Ω
Max output voltage / current
Max unclipped output voltage@8 Ω			115 Vpeak
Current			45 Apeak
AC MAIN POWER
Power supply	Universal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement			100-240 V ±10%, 50-60 Hz
Operating voltage			90 V – 264 V
Power consumption / current draw
Idle		115 V: 23 W – 0.34 A	230 V: 23.3 W – 0.21 A
1/8 of max output power @ 4 Ω		115 V: 267 W – 2.5 A	230 V: 274 W – 1.5 A
THERMAL
Operating temperature range			0° – 45° C – 32° – 113° F
Thermal dissipation*
Idle		115 V: 78 BTU/h	230 V: 79 BTU/h
1/8 of max output power @ 4 Ω		115 V: 229 BTU/h	230 V: 251 BTU/h
