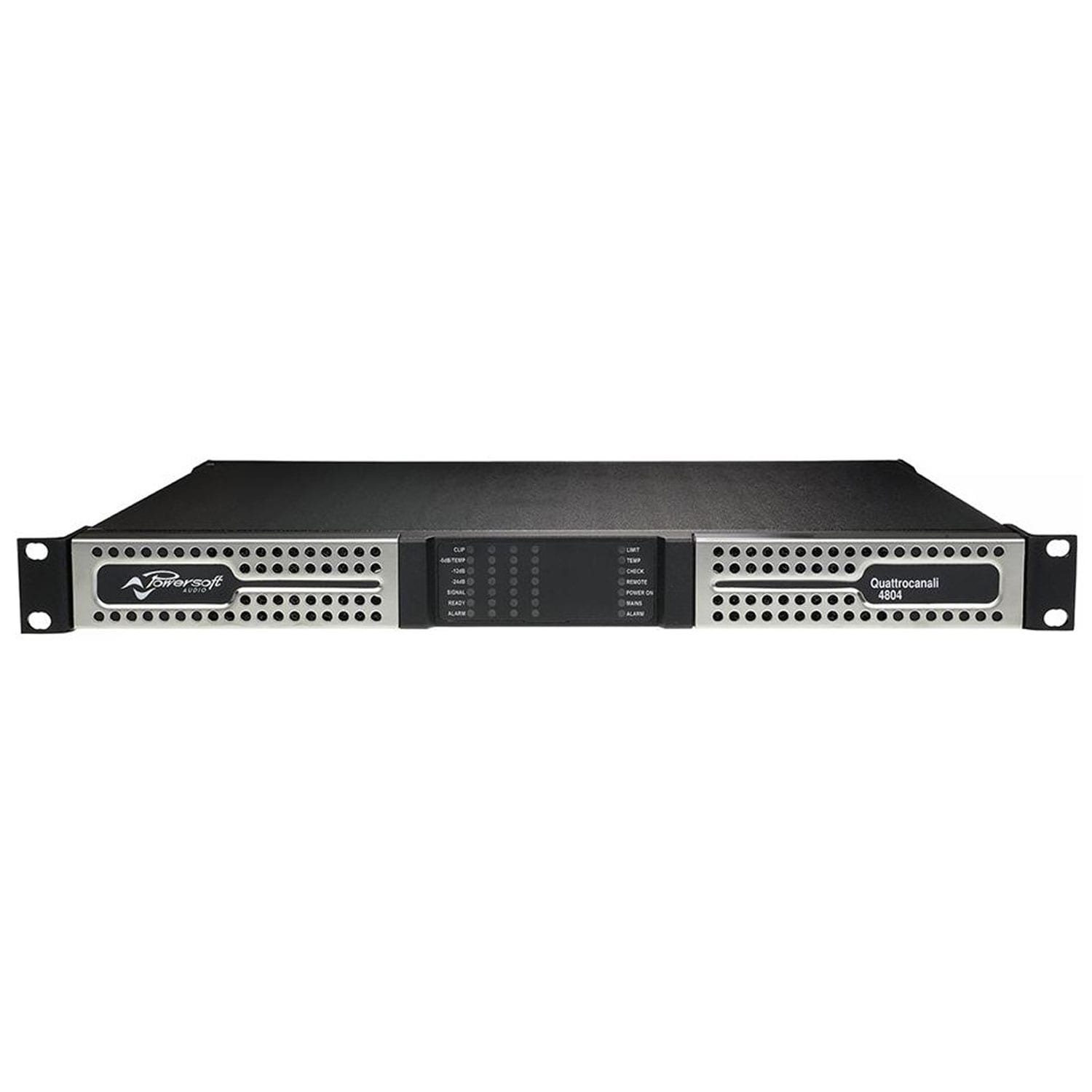

Powersoft Amplifiers Quattrocanali 4804

Overview

Quattrocanali 4804 offers the traditionally amazing sound quality and reliability of all Powersoft products.

The patented SRM (Smart Rails Management) technology allows for the maximization of the efficiency of the system and drastically reduces power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.

Quattrocanali is designed to operate with lo-Z (from 2 Ω) and 70V/100V distributed lines or any mix of the two.

This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS.

MyPowersoft services are available for this product

Features

Power supply

Powersoft legendary universal switch mode power supply up to 400VAC tolerant with Power Factor Correction
Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket

Protections

Fully protected circuit design with:

Ac protection: shut down the power supply when AC mains voltage is outside the operating range
Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
DC protection: protects against infrasonic signal at the outputs
VHF protections: protects the loudspeakers against nonaudible, strong, nonmusical high-frequency signals
Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
Long-term limiter: protects the loudspeaker against steady long-term RMS (nonaudio) signals, by reducing the maximum output
Thermal protection: output stages operating temperature up to 80 °C (176 °F)
Temperature-controlled continuous variable speed fan, front-to-back airflow
Temperature forecast with LCD traced historical behavior

General

Fixed frequency switch-mode output stage for high-grade sound accuracy
Compact size – all models only 1 RU for reduced rack cost and space
Lightweight – for easier racking and shipping: 7 kg (15.4 lbs)
Standard Phoenix connectors: analog audio outputs, aux supply, alarms and GPIO
Remotely switchable double input (main and aux) per channel

Settings

Built-in defeatable clip limiters for each channel
Digital gain-attenuator control
Defeatable gate selection for each channel
User-selectable gain/sensitivity

Alarms and GPI/O

NC/NO contacts per channel for alarm notifications
Remote ON/OFF switch
Remote VCA control per channel

Remote Control & Monitoring

Via Software:

Attenuation (from 0 dB to 26 dB)
Max output voltage
Output and gain reduction metering
Diagnostics (temperature, fans, …)

Via Hardware:

Attenuation (from 0dB to 26dB)
High-pass filters (35Hz, 70Hz)
Lo-Z/Hi-Z/70V/100V output selection
Adjustable gain (from 26dB to 35 dB)

Specifications

GENERAL
Output power per Channel
Output power per Channel	1500 W @ 2 Ω	1200 W @ 4 Ω	1200 W @ 8 Ω
Bridge mode		3000 W @ 4 Ω	2400 W @ 8 Ω
Max output voltage / current
Max unclipped voltage @8 Ω			139 Vpeak
Current			45 Apeak
AC MAIN POWER
Power supply	Universal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement			100-240 V ±10%, 50-60 Hz
Operating voltage			90 V – 264 V
Power consumption/current draw
Idle		115 V: 31 W – 0.47 A	230 V: 32 W – 0.28 A
1/8 of max output power @ 4 Ω		115 V: 823 W – 7.7 A	230 V: 840 W – 4.3 A

THERMAL
Operating temperature range			0° – 45° C – 32° – 113° F
Thermal dissipation*
Idle		115 V: 106 BTU/h	230 V: 107 BTU/h
1/8 of max output power @ 4 Ω		115 V: 759 BTU/h	230 V: 840 BTU/h
