Description

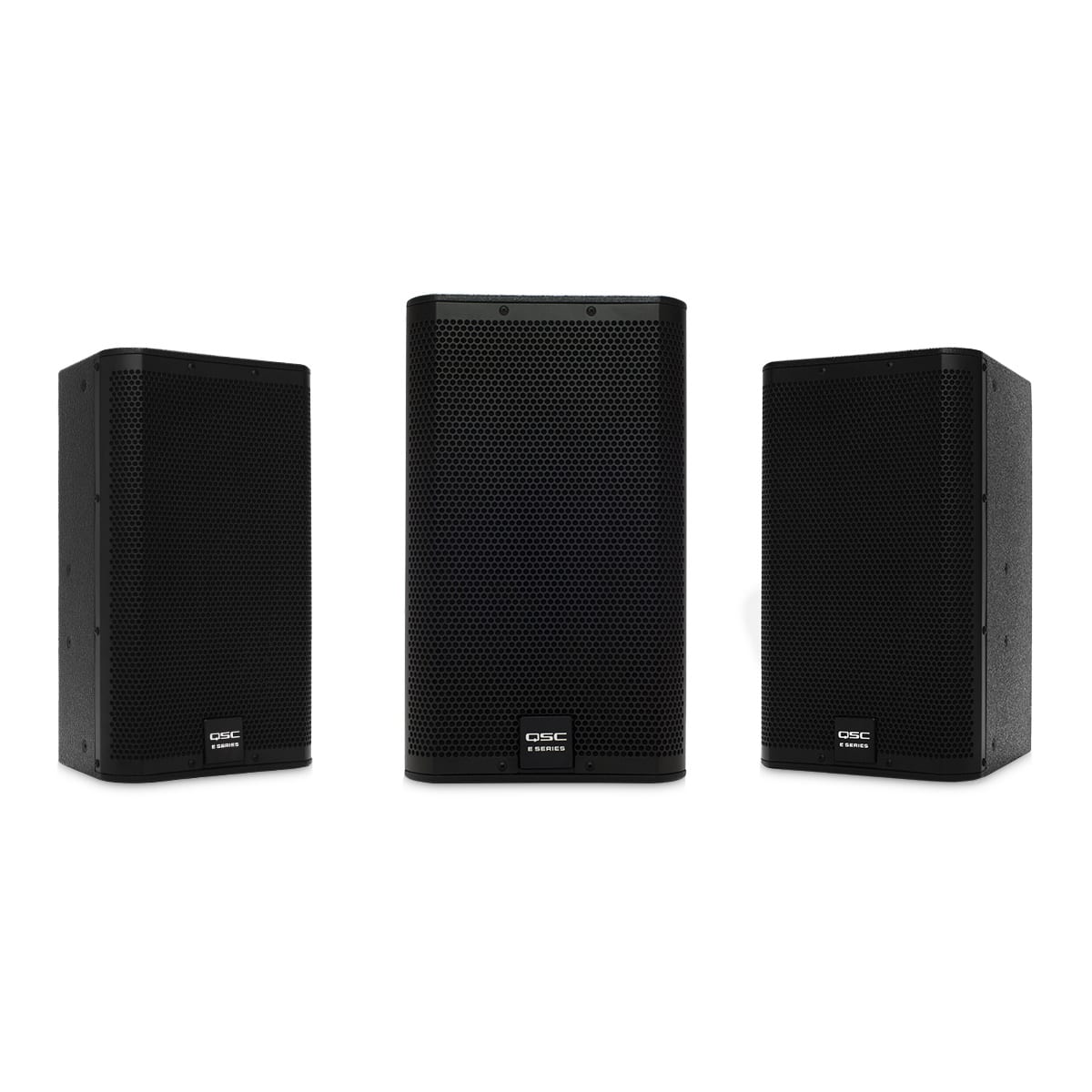

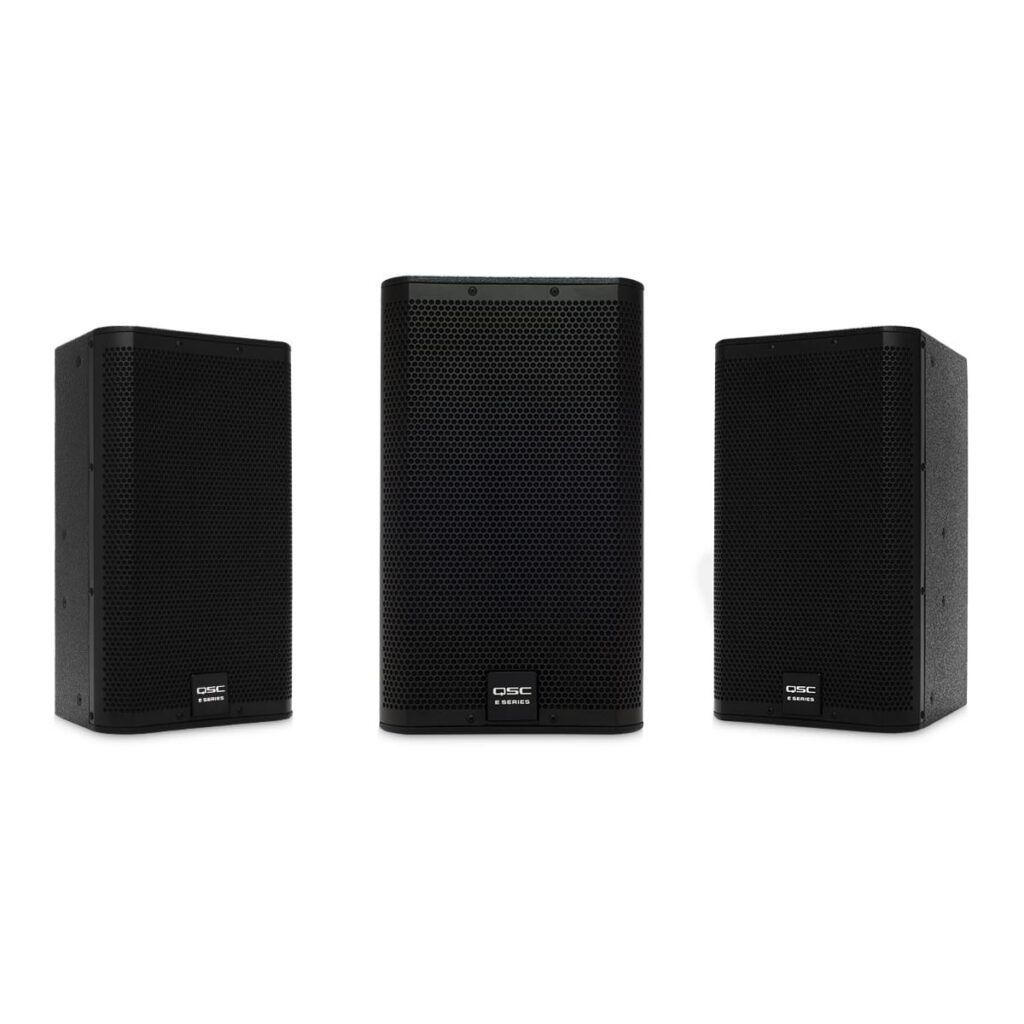

QSC E110 Passive Loudspeaker
The QSC E110 Passive Loudspeaker is a compact, two-way loudspeaker with a 10-inch, die-cast frame woofer with a 2.5-inch voice-coil housed in a multi-purpose enclosure that’s at home in stage monitor or main PA deployment. It incorporates QSC’s Directivity Matched Transition® (DMT) design with a wide 85° coverage. When used as a stage monitor, the E110 is angled up at a 55° angle allowing it to be placed near the performer when used on a crowded stage.
E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today’s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music, and karaoke.
Features
- High output, professional-quality sound with 300 W continuous power
- E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
- E Series Entertainment System DSP Tunings are now available for PLD, CXD, and GXD processing amplifiers:
– For PLD/CXD visit Amplifier Navigator Software
– For GXD visit the GXD Firmware Updater
- Rugged tour-grade textured paint
- Foam-lined perforated steel grill
- Suitable for main PA and stage monitor
- Available U-Style Yoke and M8 rigging kit for permanent installation
- Dual-angle pole socket
| Model | E110 |
| Configuration | 1 × 10-inch, 2-way, non-powered |
| Frequency Response (-6 dB) | 68Hz – 20kHz |
| Frequency Range (-10 dB) | 50Hz – 20kHz |
| Power capacity²: continuous/peak | 300 W / 1200 W |
| Sensitivity | 95 dB, 1 W @ 1 m |
| Coverage Angle | 85° conical DMT™ |
| Output1 (Peak SPL @ 1m) | 126 dB |
Drivers LF HF | 254 mm (10 in) driver with 64 mm (2.5 in) voice coil; 25 mm (1 in) exit, 45 mm (1.75 in) voice coil, compression driver |
| Nominal Impedance | 8Ω |
| Cross-over | Full-range only, 1.8 kHz |
| Input Connections | 2 × NL4, 1 × barrier strip |
| Enclosure | Multi-angle plywood, black texture paint finish. One top-mounted handle. Perforated, powder-coated steel grille with foam lining. |
| Mounting and suspension | 9 × M8 suspension points, dual angle, 35 mm pole-socket |
| Speaker Dimensions (W×H×D) | 330 × 560 × 330 mm 13 × 22 × 13 in |
| Carton Dimensions (H×W×D) | 430 × 430 × 660 mm 17 × 17 × 26 in |
| Net speaker weight | 20 kg / 44 lb |
| Shipping weight | 23 kg / 50 lb |
