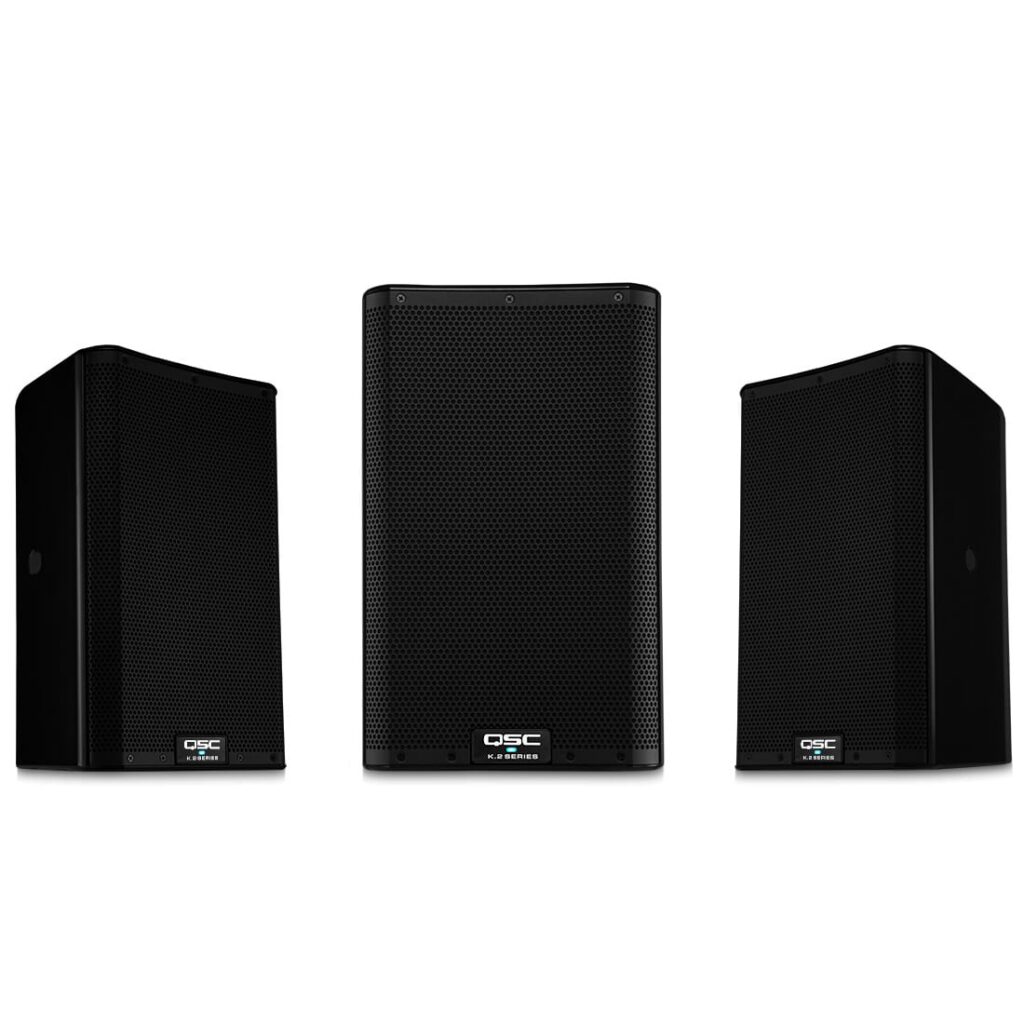

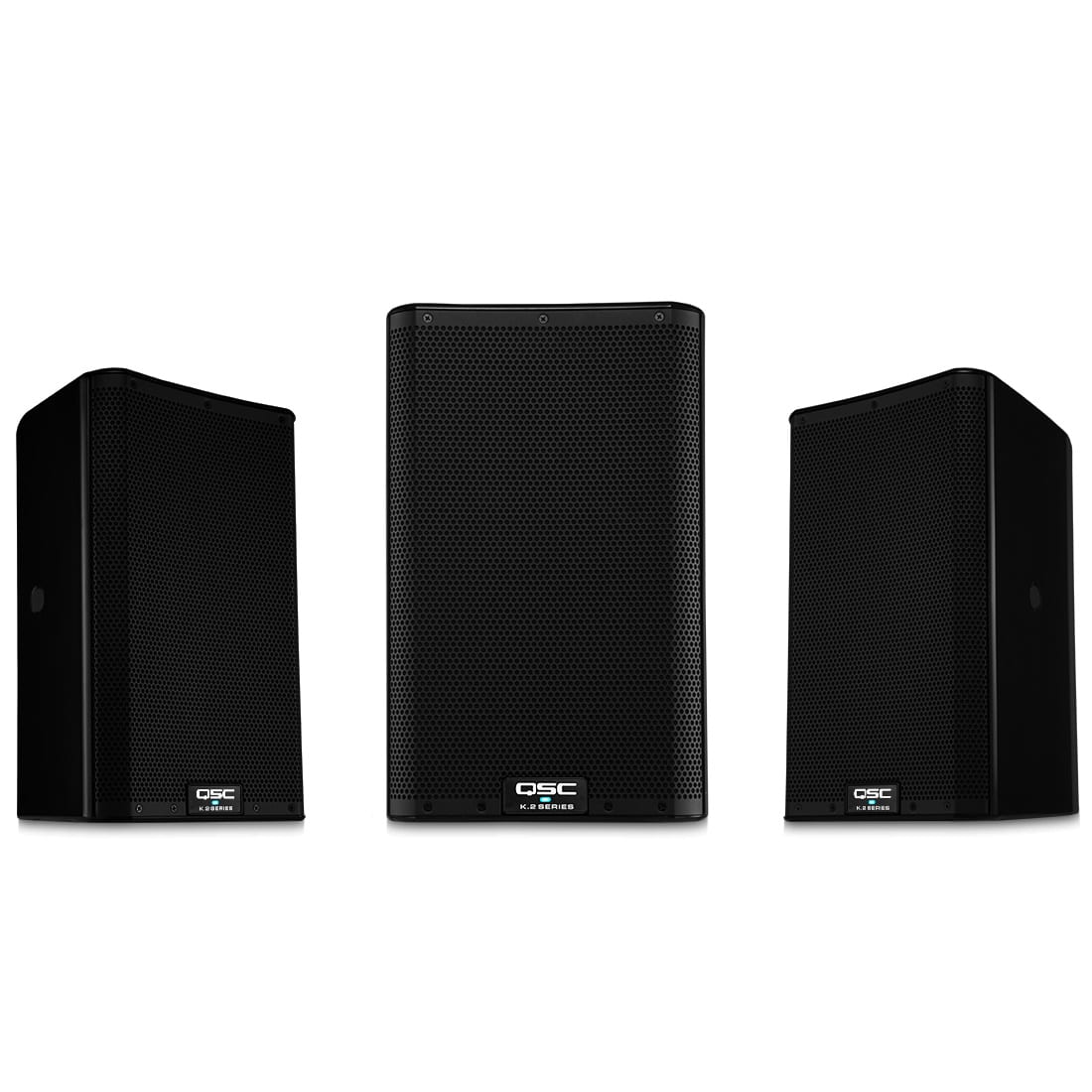

QSC K8.2 Active Loudspeaker

Description

QSC K8.2 Active Loudspeaker

The QSC K8.2 Active Loudspeaker represents the best-in-class loudspeaker for today’s demanding audio professionals. The perfect combination of elegant design, superior audio performance, high functionality, simple and intuitive operation, and genuine QSC reliability, K.2 delivers extraordinary results for users in both portable and installed applications.

Features

Best in-class audio performance
2000 Watt Class-D amplifier module
Intrinsic Correction™ tuning and loudspeaker management
Directivity Matched Transition^® (DMT) design provides excellent power response and consistent performance across the listening area
Refined, professional appearance looks great in any application
Rugged ABS enclosure for long life and lasting durability
Deployment in either the main PA or floor monitor position
Factory Presets and savable/recallable Scenes for commonly-used application
Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contour
Dual pole cup mounts (standard and 7.5-degree down-tilt)
M10 fittings for flown applications
Optional security panel prevents unauthorized tampering of controls
Complete EASE and CAD information available online
6-Year Warranty (with product registration)

Advanced Power and DSP

The 2000-watt power module delivers ample burst and continuous power for the loudspeaker’s premium drivers. It has been designed with very low-noise fan cooling, enabling the enclosures to be used in settings where background noise must be kept to a minimum. Carefully tailored, subtle and sophisticated dynamics processing is used to protect the drivers from damage and the performance from distortion.

Presets

The user may select from an extensive list of factory preset EQ contours including Live, Dance, Monitor, and many more.

Scenes

Savable and recallable Scenes can store information like user EQ, Delay, and input configuration settings.

Inputs

A pair of balanced combo XLR/F plus 1/4-inch TRS connectors with independent gain control are provided. The first is equipped with selectable MIC/LINE (Microphone or Line) level input while the second offers selectable HI-Z/LINE (High Impedance or Line) level input, specifically for musical instruments. Both inputs are connected directly to a pair of XLR/M throughput connectors so that the signals may be “daisy-chained” to another audio device. A 3.5 mm TRS input jack with independent gain control is also provided for the connection of sources such as smartphones, computers, and MP3 players.

Outputs

In addition to the two throughputs XLRs, a line-level output with the mixed signal from all inputs is also provided. (An optional security cover (K-LOC) may be installed to prevent unauthorized tampering of settings)

Coverage

DMT™ (Directivity Matched Transition) design matches the coverage angle of the woofer at the cross-over frequency with the horn pattern to ensure uniform response across the coverage area. Intrinsic Correction™ techniques are also employed to ensure smooth power response from the loudspeaker. The result is an extremely accurate loudspeaker that behaves well in a wide range of acoustic spaces with little or no equalization.

Flexible Design

Each model is housed in a rugged ABS enclosure with a professional yet unobtrusive appearance that is at home in any application. Each model can be utilized in either main PA or floor monitor applications, while ergonomic handles and a heavy-duty steel grille with fabric lining further enhance overall appearance and functionality. The dual pole cups allow a zero or 7.5-degree downward tilt when deployed on a pole. This allows for more even coverage across the listening area and fewer problems due to rear wall reflections. For suspended applications, integrated M10 fittings with a single pullback are included to accommodate M10 eyebolts. An optional yoke mount accessory is also available for permanent installation to walls and ceilings or for temporary attachment to truss (requires 3rd party hardware). 6-Year Warranty: Robust QSC reliability backed by a global 6-Year Warranty*

SPECificationS

Model	K8.2
Configuration	Multi-purpose, 2-way active loudspeaker
LF Transducer	203 mm (8-inch), cone
HF Transducer	35.6 mm (1.4-inch) titanium diaphragm compression driver
Frequency Response (-6 dB)	59 Hz – 20 kHz
Frequency Range (-10 dB)	55 Hz – 20 kHz
Nominal Coverage Angle	105° Axisymmetric
Maximum Rated SPL¹ Amplifier Cooling	128 dB @1 M, peak 122 dB @ 1 M, continuous Class D Peak: 1800 W (LF), 225 W (HF) Low-noise, variable-speed fan
Controls	Power 3 × Level Rotary encoder (push) 2 ×x selection buttons
Indicators	Monochrome LCD Display 45 mm × 25.4 mm (1.75-inch × 1-inch) 2 × Power LED (front and rear) 3 × Input Signal LED Input A Mic selected LED Input B Hi-Z selected LED Limiter active LED
Connectors	2 × locking XLR/F ¼⁻ᶦⁿᶜʰ combo (Mic/Line Input and Hi-Z/Line Input 1 × 3.5 mm TRS (Stereo Input) 2 × XLR/M (Loop-thru Output) 1 × XLR/M (Mix Output) 1 × locking IEC power connector
AC Power Input	Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption 1/8th Power²	100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A
AC Power Consumption – Standby	0.2 A at any voltage
Enclosure Details
Enclosure	Impact Resistant ABS
Attachment Points	2 × M10 threaded inserts plus Pull-Back
Color	Black (RAL 9011)
Grille	18 Gauge powered coated steel, internal cloth lining
Speaker Dimensions (H×W×D)	449 × 280 × 269 mm 17.7 × 11 × 10.6 in
Carton Dimensions (H×W×D)	500 × 380 × 368 mm 19.7 × 15 × 14.5 in
Net Weight	12.2 kg / 27 lb
Shipping Weight	14.4 kg / 31.7 lb
Regulatory	CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
Optional Accessories	K8 Tote, K8 Outdoor Cover M10 Kit-C, K.2-LOC Lock Out Cover K8.2 Yoke
