Description

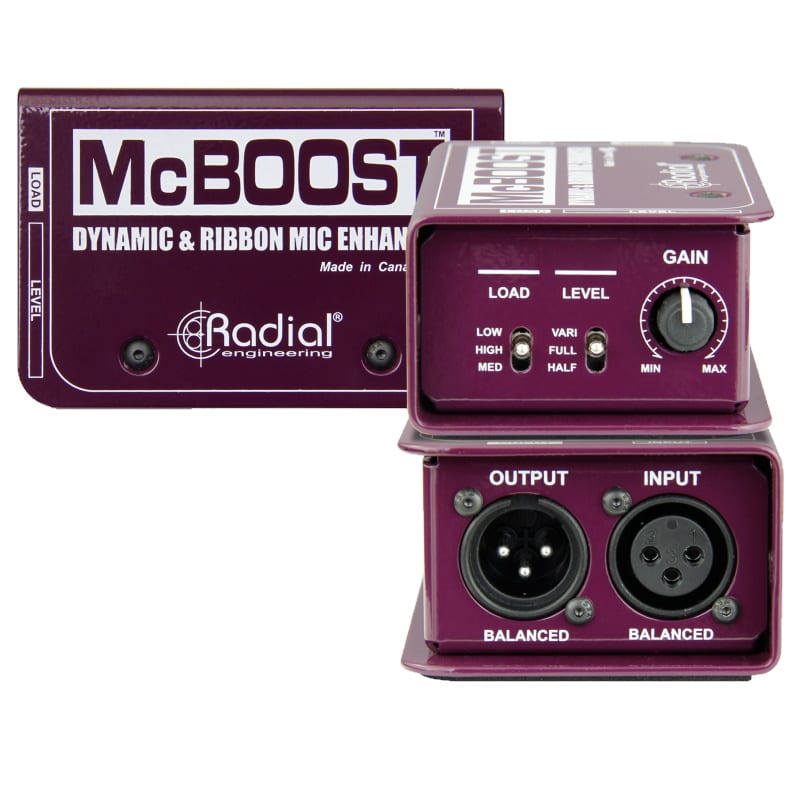

The Radial McBoost is a microphone signal booster designed to elevate the output of a dynamic or ribbon microphone for greater transparency and clarity and provide enough clean gain to connect to any preamp.
- 26dB signal booster for dynamic & ribbon microphones
- Class-A dual transistor circuit for transparent operation
- Powered by 48V phantom power
- Three-position impedance selector & variable gain
Boost your signal at the source
The Radial McBoost provides clean gain at the source for low-output dynamic and ribbon microphones, driving long cable runs with ease and allowing you to connect to any preamp as if it were a high-gain ribbon mic pre. Simply connect the McBoost in-line using standard XLR cables and activate 48V phantom to provide power, then select between three impedance settings to optimize the response from the microphone. The McBoost will elevate the output to produce added clarity, excitement and extra drive for long cables whether you are in a recording studio, on a live concert stage, or in a broadcast center.
| Specifications | ||
|---|---|---|
| Audio circuit type: | Class-A Differential DC Coupled FET | |
| Frequency response: | <7Hz to >30kHz | |
| Dynamic range: | 116dB | |
| Gain: | +26dB Full Gain, +20dB Half Gain, +4dB to +25dB Variable Gain | |
| Clip Level: | +16dBu (output) | |
| Total harmonic distortion: | 0.006% | |
| Intermodulation Distortion: | 0.01% | |
| Phase Deviation: | <10° | |
| Input Impedance: | 600Ω / 2.7kΩ / 30kΩ | |
| Output Impedance: | 220Ω | |
| Common Mode Rejection Ratio: | >50dB | |
| Equivalent Input Noise: | -125dBu | |
| Noise: | -100dBu / -110dBu | |
| Features | ||
| Input Connectors: | XLR female output | |
| Output Connectors: | XLR male output | |
| General | ||
| Construction: | Cold Rolled Steel | |
| Power: | Phantom Power – 48V | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
