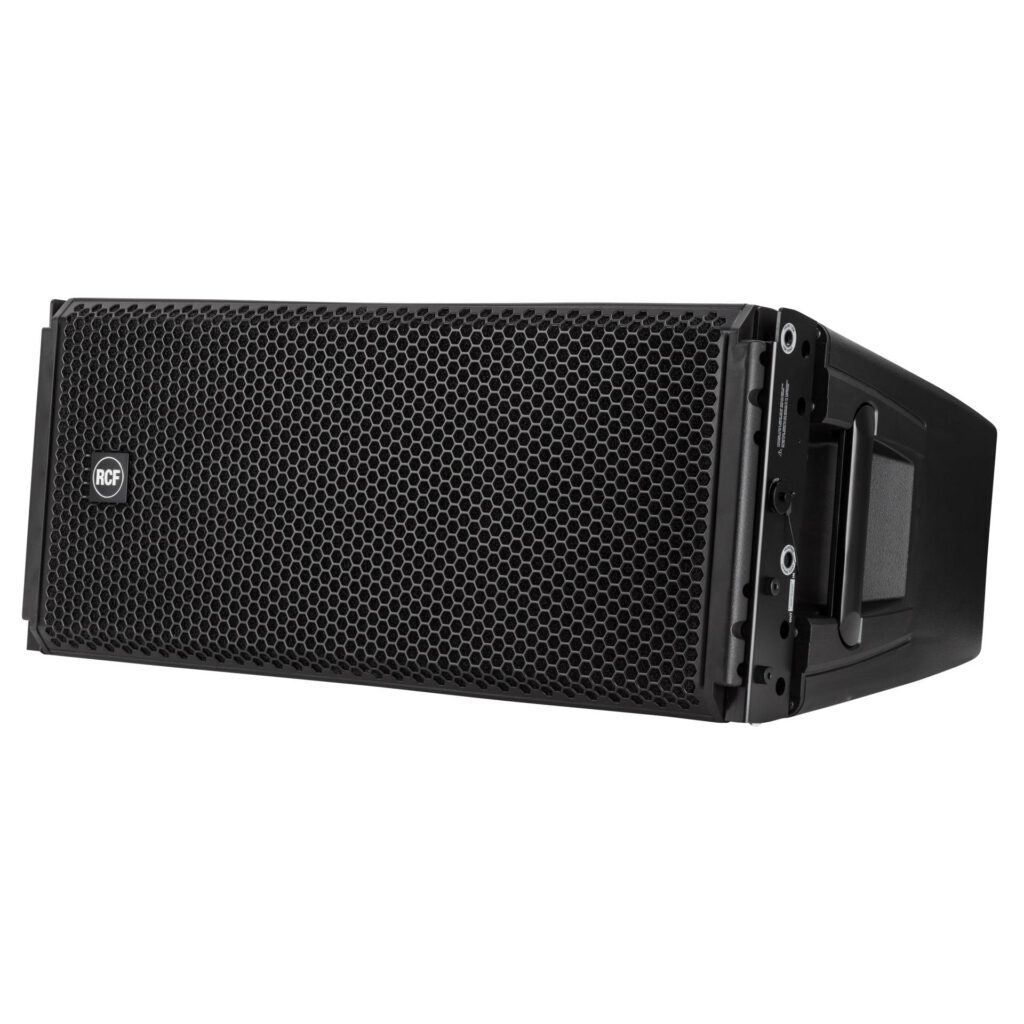

RCF HDL 30-A

ACTIVE TWO-WAY LINE ARRAY MODULE

Description

The RCF HDL 30-A is a compact bi-amped 2-way active touring system for medium to large events, both indoors and outdoors. It features two 10-inch woofers and an impressive 4-inch titanium compression driver. The time coherent waveguide is the result of in-depth research and design. HDL 30-A is the first line array in a composite cabinet with a zero-degree phase and ultra-linear amplitude response. The built-in 2200 watt class-D amplifier delivers excellent playback clarity and up to 137 decibels SPL max. The RCF HDL30 -A features state of the art RCF transducers with neodymium magnets. Considering its acoustical power, it has a remarkably low weight for easy handling and flying. The HDL 38-AS is the ideal flyable bass complement for the HDL 30-A array system.

  • 2200W Two Way Amplifier
  • 137 dB Max SPL
  • 48 kHz, 32 bit DSP processing
  • 1.4″ Titanium Compression Driver, 4.0″ voice coil
  • 2 x 10″ Neodymium Woofers, 2.5″ voice coil
  • Exclusive FiRPHASE technology on-board
  • RDNet Control and Management
  • 680 Hz Crossover Point

RCF RDNet

NETWORKED CONTROL AND MUCH MORE
RDNet is a robust management network and control platform for small, medium, and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well), and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

4 PATH WAVEGUIDE

The custom 4 PATH-designed waveguide allows a precise coverage of 100 x 15 degrees, while also delivering an excellent, linear high-frequency response. The unique shape of the four ducts forming the guide creates an ideal isophasic load from 680 Hz to the highest audible frequencies.

POWERFUL CLASS D AMPLIFIER

RCF’s Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver an ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminum structure that stabilizes the amplifier during transportation and helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.

NEW PERSPECTIVE ON LINEARITY

RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity, and perfect stereo images to the listener.

The special FiRPHASE filters allow achieving coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.

NEODYMIUM RCF PRECISION TRANSDUCERS

HIGH FREQUENCIES – Superior compression driver with extreme precision in high-frequency reproduction.

  • High-performance RCF ND940
  • 4.0-inch diaphragm titanium compression driver
  • 1.4-inch exit throat
  • 680 Hz Crossover Point

LOW FREQUENCIES – High power woofers. Very high efficient and controlled bass reproduction.

  • 2 X 2.5” voice coil neodymium 10” woofers
  • Low frequencies handling down to 50 Hz
  • Water-resistant fiber doped cone
  • Polycotton M-roll surround
  • Hypervented magnetic structure

REVOLUTIONARY RIGGING CONCEPT

The high-strength enclosure in composite polypropylene has a revolutionary new rigging concept inspired by its big brother: the RCF HDL-50A. Compared to its acoustical power, it has a remarkably low weight for easy handling and flying. The integrated mechanics are both fast and reconfigurable, allowing the system engineer to create J-shaped and spiral arrays starting with 0.2° angles. The hardware is designed for easy and fast setup. The angle can be adjusted before hanging the system, on the ground, and slips automatically into the correct position when pulling up the array. Up to 20 HDL 30 -A modules can be fastened on a single flybar.

THE IDEAL FLYABLE BASS COMPLEMENT

The HDL 38-AS is the ideal flyable bass complement for the HDL 30-A array system.

It features one 4.0” voice coil, 18” Neodymium woofer to handle 136 dB SPL Max from 30 Hz to 140 Hz with maximum linearity and low distortion. The HDL 38-AS is perfect to create flown systems for theatrical and indoor venues. The built-in 3200W Class-D amplifier delivers excellent playback clarity and up to 136 decibels SPL max. With RDNet compatibility, the HDL 38-AS is part of the professional HDL System.

SPECIFICATIONS

Acoustical specifications
FREQUENCY RESPONSE:
50 Hz ÷ 20000 Hz
MAX SPL @ 1M:
137 dB
HORIZONTAL COVERAGE ANGLE:
100°
VERTICAL COVERAGE ANGLE:
15°
Transducers
COMPRESSION DRIVER:
1 x 1.4” neo, 4.0” v.c
WOOFER:
2 x 10” neo, 2.5” v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, RDNet Ethercon
OUTPUT CONNECTORS:
XLR, RDNet Ethercon
INPUT SENSITIVITY:
+4 dBu
Processor section
CROSSOVER FREQUENCIES:
680 Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Soft Limiter
CONTROLS:
Preset, RDNet bypass
RDNET:
Yes
Power section
TOTAL POWER:
2200 W Peak, 1100 W RMS
HIGH FREQUENCIES:
600 W Peak, 300 W RMS
LOW FREQUENCIES:
1600 W Peak, 800 W RMS
COOLING:
Forced
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite
HARDWARE:
Array fittings
HANDLES:
2 Side
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
293 mm / 11.54 inches
WIDTH:
705 mm / 27.76 inches
DEPTH:
502 mm / 19.76 inches
WEIGHT:
25 kg / 55.12 lbs
Shipping information
PACKAGE HEIGHT:
365 mm / 14.37 inches
PACKAGE WIDTH:
800 mm / 31.5 inches
PACKAGE DEPTH:
550 mm / 21.65 inches
PACKAGE WEIGHT:
28.2 kg / 62.17 lbs
