Description

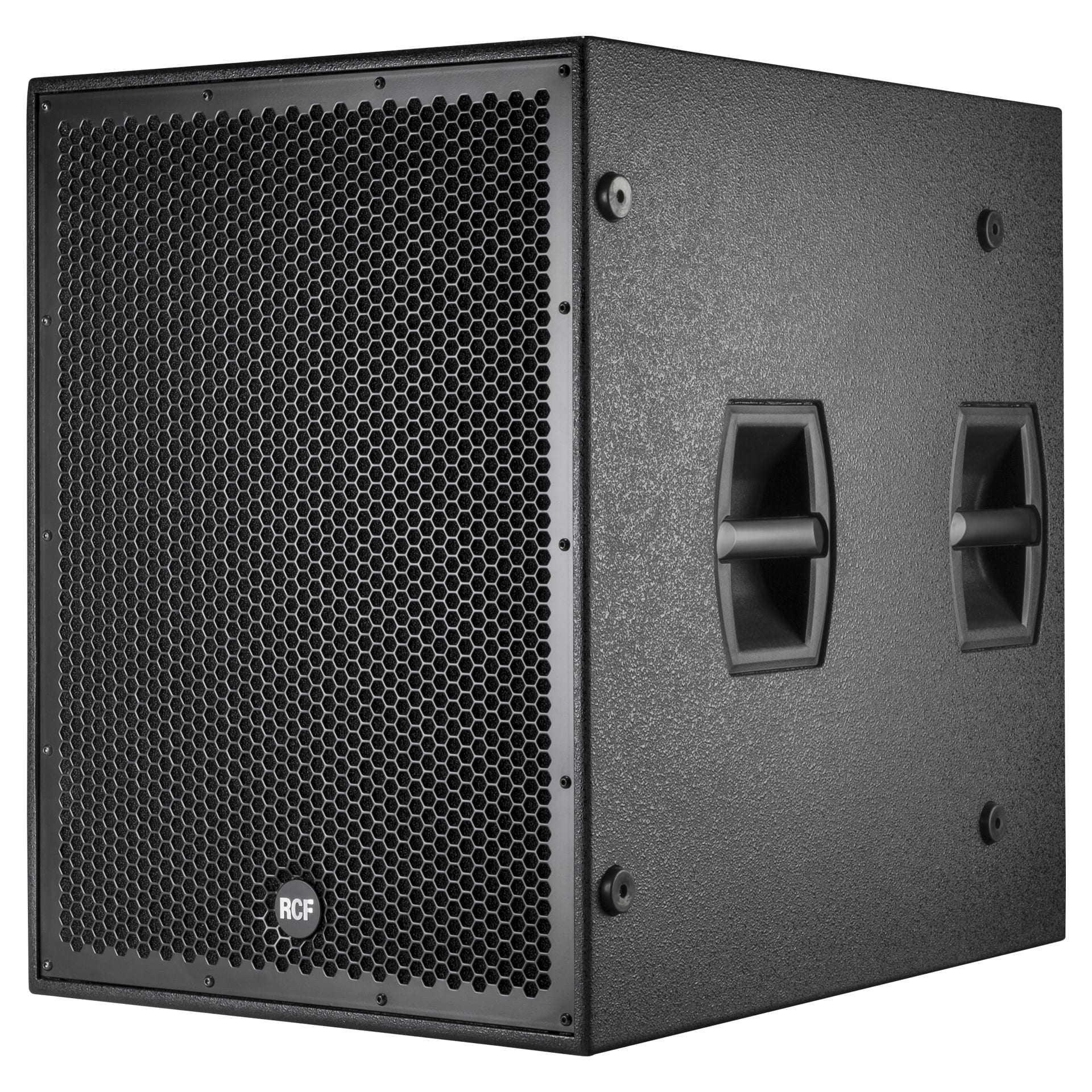

The RCF SUB 8005-AS is one of the most powerful 21” subwoofers in the pro-sound category. Featuring a high-power, hypervented 21” woofer, with a 4.5” inside/outside voice coils, this cabinet is designed to deliver a serious amount of low frequency. Powered by a 2500W digital amplifier module, the SUB 8005-AS can perform in the most demanding situations. The input board includes volume control, deep/punch switch, high pass switch, phase switch, cardioid, time delay.

• 2500 Watt Peak, 1250 Watt RMS
• 137 dB max SPL
• 27 Hz – 120 Hz frequency response
• 21″ Woofer, 4.5″ voice coil vented woofer
• DSP controlled Input section with selectable presets
• Delay control
• Baltic birch tour grade cabinet
• Compatible with NXL23-A (stacking) and NXL24-A (stacking)
• Multiple configurations with HDL 10-A and HDL 20-A

POWERFUL CLASS D AMPLIFIERS

RCF’s Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. RCF amplifiers deliver an ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminum structure which not only stabilizes the amplifier during transportation but also helps the fan-less heat dissipation. All the amplifiers present SMPS power supply section to produce maximum output and minimum weight.

THE TRANSDUCERS INNOVATORS

RCF specializes in developing advanced transducer technology including the application of high-tech materials such as Neodymium, Carbon Fiber, Pure Titanium, Kevlar, Kapton, and Mylar hybrids. With over 60 years of design and manufacturing experience in the market, RCF has been instrumental in technological inventions such as carbon fiber cone molding, double silicon spiders, inside/outside voice coil windings to edge wound voice coil manufacturing, and pure titanium diaphragm forming. Our latest developments have resulted in designing state-of-the-art neodymium magnetic circuits, radically new voice coil ventilation systems, and groundbreaking direct drive voice coil assemblies.

LEGENDARY SUBWOOFERS

RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self-powered design, internal delay control, cardioid configuration options, and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience.

CABINET & MECHANICS

The RCF cabinets are made of baltic birch plywood coated with a textured black finish. The subs are stackable and lightweight, for easy set-up and tear down, thanks to the ergonomic handles. A pole receptacle on top and side allows the use of the box in various configurations. The powder-coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect the transducers from dust.

SPECIFICATIONS
