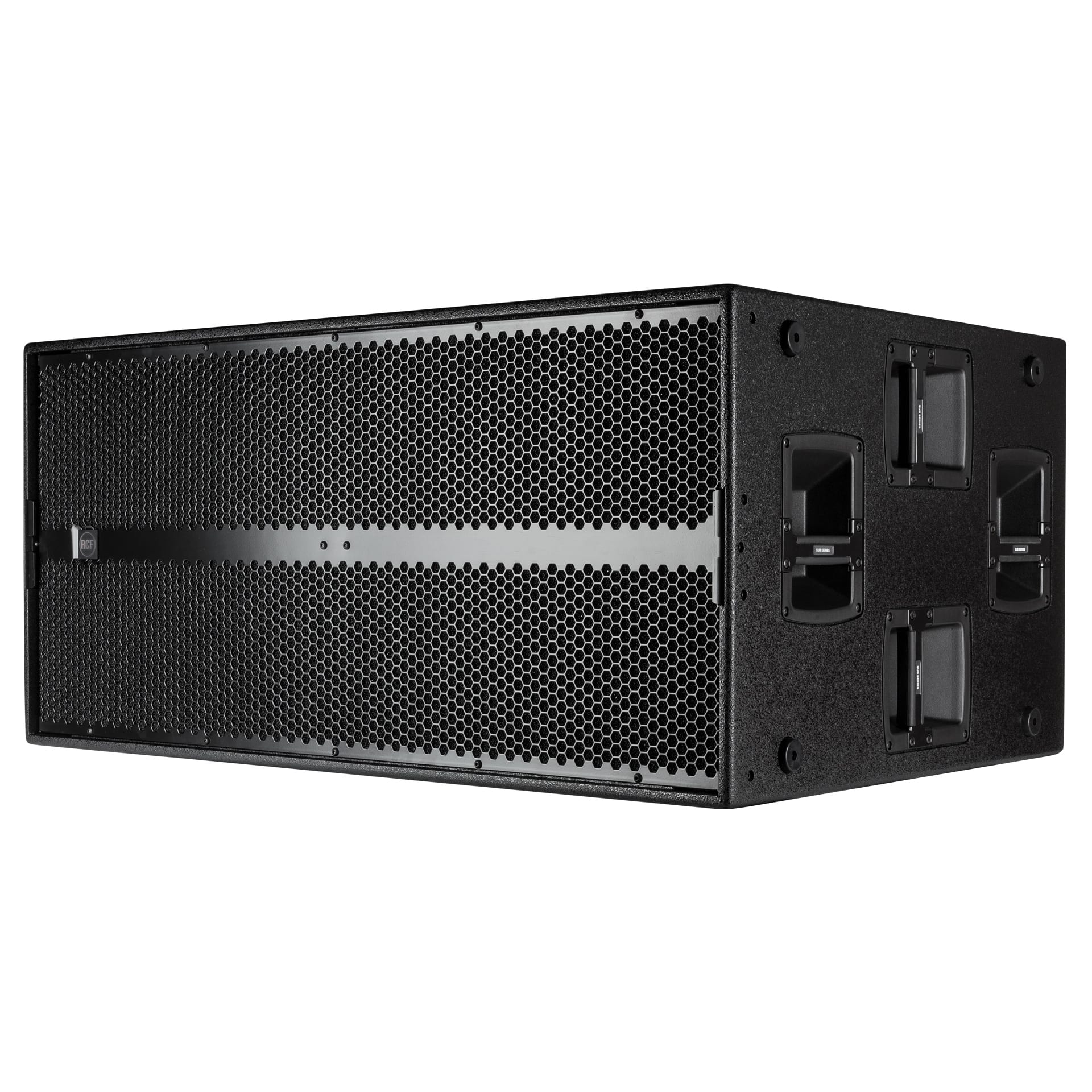

RCF SUB 9006-AS

Description

The RCF SUB 9006-AS is one of the most powerful 2×18” subwoofers in the field of live sound. Featuring two high-power hyper-vented 18” neodymium woofers with 4.0” inside-outside voice coils, this cabinet delivers a serious amount of low frequencies. Powered by a 7200 W digital amplifier, the SUB 9006-AS can perform in the most demanding situations. The housing of the SUB 9006-AS matches the RCF D-Line HDL50-A and HDL10-A array systems, enabling to build of stacked systems in a perfect combination.

• 7200 Watt Peak power – 3600 Watt RMS
• 142 dB max SPL
• 30 Hz – 400 Hz frequency response
• 2 x 18″ Woofer
• DSP controlled Input section with selectable presets
• RDNet remote control
• Delay control
• Baltic birch cabinet

RCF RDNet

NETWORKED CONTROL AND MUCH MORE
RDNet is a robust management network and control platform for small, medium, and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well), and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

TOP-END ELECTRONICS

The amplifier integrates a low-noise 32-bit DSP circuit, controlled through the RCF proprietary RDNet network to easily handle the soft clipping limiters, RMS limits, polarity, amplitude, timing, and equalization. All the settings, monitoring, and advanced features are available inside the RDNet Networked Management software. The available control panel on the back adjusts input sensitivity, Low Cut, Xover, volume, bypass, delay, and presets selection. The regulated power supply guarantees full power from 100 V to 260 V. The amplifier houses on a unique Vibrostop floating aluminum panel for extra protection during transportation.

HYPERVENTILATION SYSTEM

RCF manufactures these components to deliver the cleanest, punchiest, and undistorted low frequencies reproduction. The cone is composed of 30% carbon fiber, 20% fiberglass, and 50% cellulose pulp. This particular chemical composition has been carefully developed to improve the robustness and rigidness of the cone avoiding any deformation that would result in a loss of efficiency. The 4.0″ inside/outside voice coil is wounded on a strong fiberglass former and guarantees a more efficient cooling. The former is internally and externally reinforced with Nomex that stiffens the overall structure for a better energy transfer between the voice coil and the body cone. In order to dissipate the heat generated by the powerful voice coil, RCF engineers have developed the unique Hyper Ventilation system with very low power compression. The cone is water-resistant.

STACKING HDL 50-A 4K OR HDL 10-A

The cabinet is made of high-quality birch plywood with every layer glued by a special water-resistant adhesive weatherproofing the cabinet. The heavily braced internal structure of the cabinet survives long-term use and transportation. Two separate acoustic chambers for the woofers and separate housing for the amplifier guarantee the best components’ efficiency and reliability. Dual Stacking: horizontal to fit the HDL 50-A 4K while the vertical fits HDL 10-A.

CABINET

The heavy-duty powder-coated front grille integrates a central reinforcement bar and a special transparent-to-sound foam backing on the inside helps to further protect the transducers from dust. The subs are stackable and lightweight, for easy set-up and tear down. The SUB 9007-AS and SUB 9006-AS are equipped with 8 aluminum handles (4 per side) with an ergonomic rubber handgrip. The transportation is fast with the detachable Kart kit: a dolly caster-board with rugged tour grade casters and a rotating cam mechanism.
