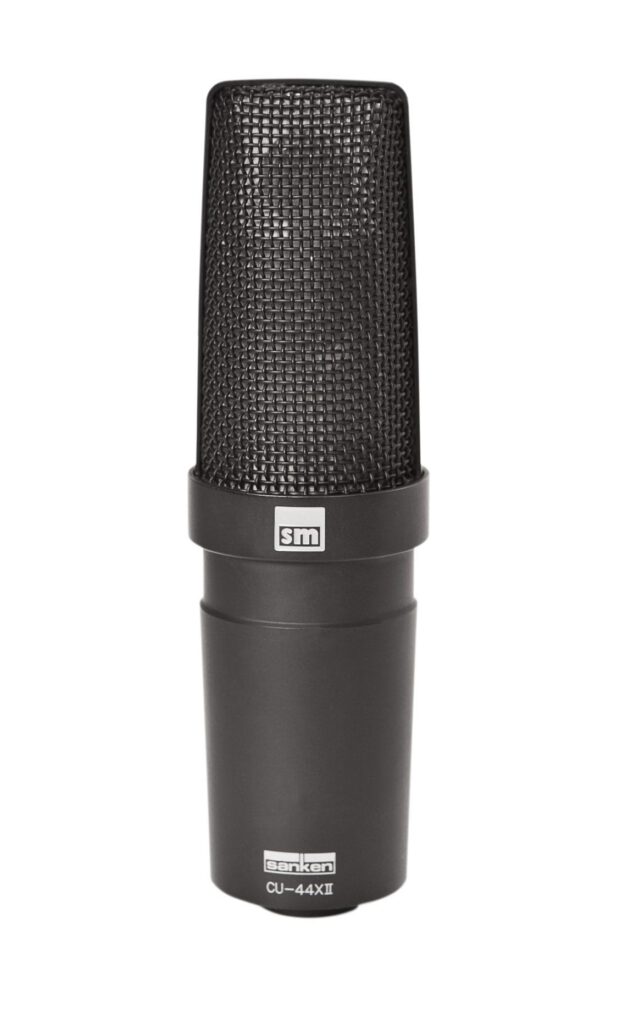

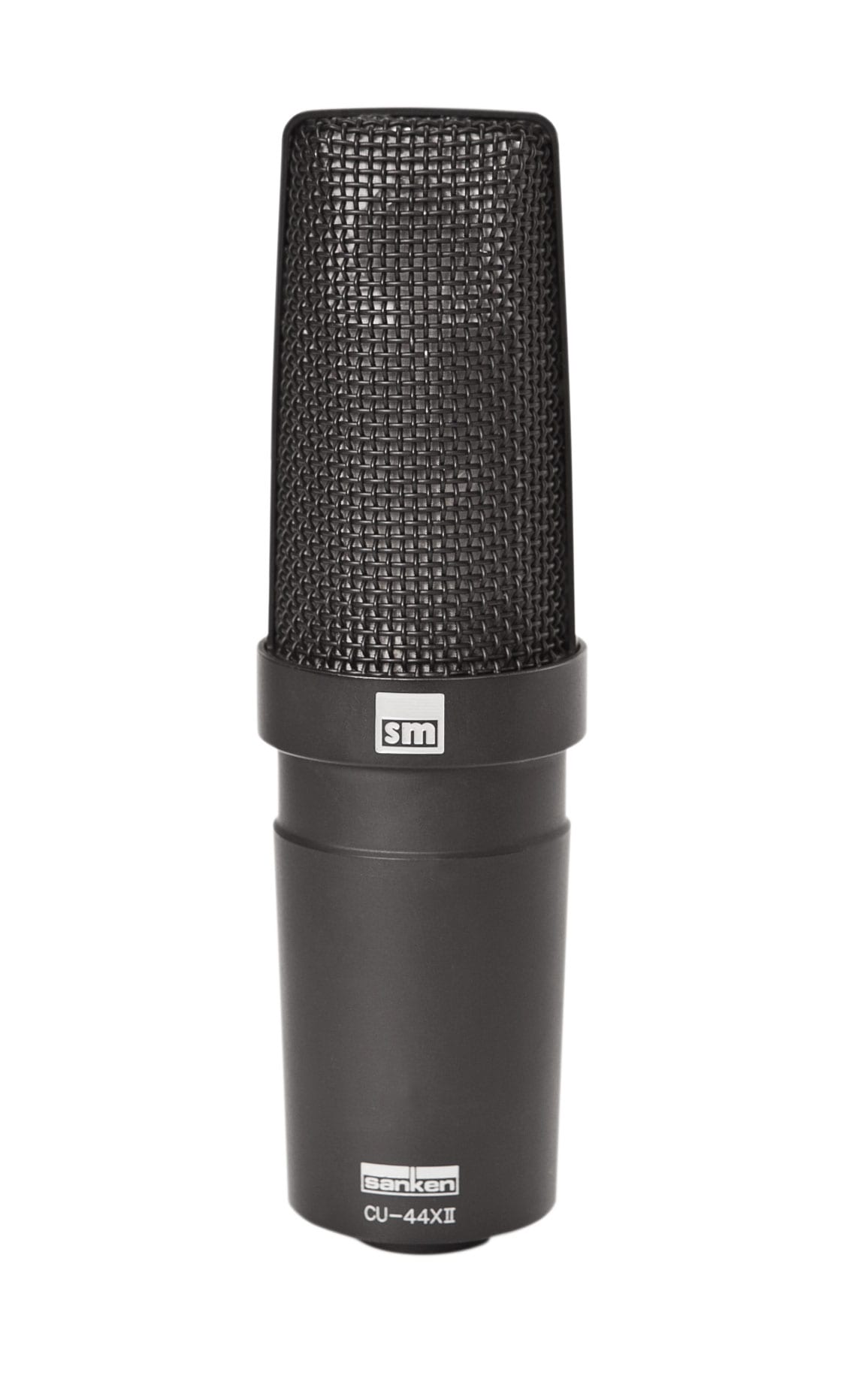

Transformerless, Cardioid Double Condenser Microphone

Revolutionary design favored by top musicians, engineers, and producers

The CU-44x MK II has a revolutionary design featuring two titanium-matched capsules for low and high, with 100-volt internal power for a super wide dynamic range and headroom. The transformerless design, with a slight bump above 14kHz, gives a very pleasing air in the high end with a remarkable transient response. Perfect for vocals, overheads, and acoustic instruments delivering a very pleasing natural sound. Match this with a modern preamp for ultra-low noise and sonic clarity that is immediately obvious to the ear.

The CU-44X MK II compares very favorably with the older vintage mics in the bottom end but has a much more pleasing high end. This mic has a proven record of great recordings on vocals or instruments.

The unique dual-capsule Sanken CU-44X Mk II sports a versatile cardioid pattern ideal for a wide range of recordings. The ability to withstand high SPLs insures clean, distortion-free recording on explosive percussion and other instruments with harsh dynamics. When used in pairs, the result is impeccably clear stereo imaging.

The CU-44X MkII features a specially designed double titanium capsule with a unique mounting scheme that guarantees phase coherency – a larger one for the bass and a smaller one for the high frequencies. They are immune to the effects of humidity and temperature change, resulting in a totally consistent response, regardless of the recording environment.

The CU-44X Mk II’s frequency response is totally flat – on axis, at 90 degrees – essential in maintaining sonic transparency.

• Transformerless design for high transient, natural and uncolored sound with vivid sonic imagery
• Internal high voltage power supply for wide dynamic range and headroom
• Low noise
• Dual coherent titanium membranes immune to the effects of humidity and temperature change
• Superior off-axis response
• Smooth cardioid polar pattern
• Withstands high SPL
• Flat frequency response (20Hz to 20kHz)

Applications

• Acoustic Guitar
• Background or Chorus Vocals
• Brass and Woodwind
• Drums Close Mic
• Electric/Bass Guitar Amps
• Orchestra Solo
• Overheads
• Percussion
• Piano
• Sound Design, Effects, and ATMOS
• Strings
• Upright Bass
• Vocals

Model Name	CU-44X MK II
Transducer	DC biased condenser
Directivity	Cardioid
Frequency response	20Hz – 30kHz
Sensitivity	-34dB(20mV, 0dB=1V/Pa)
Equivalent noise level (IEC)	15dB A
Max SPL(1% THD)	140dB SPL
Output impedance( 1kHz )	150 ohms
Powering	+48V±4V phantom
Current consumption	4mA
Weight	430g / .95lbs
Dimensions	156mm x 45.5mm (D) 6.14in x 1.79in (D)
Surface finish	Matte black
Connector	XLR-3-12C(M) equivalent 1: GND, 2: Hot, 3: Cold

POLAR PATTERN

FREQUENCY RESPONSE
