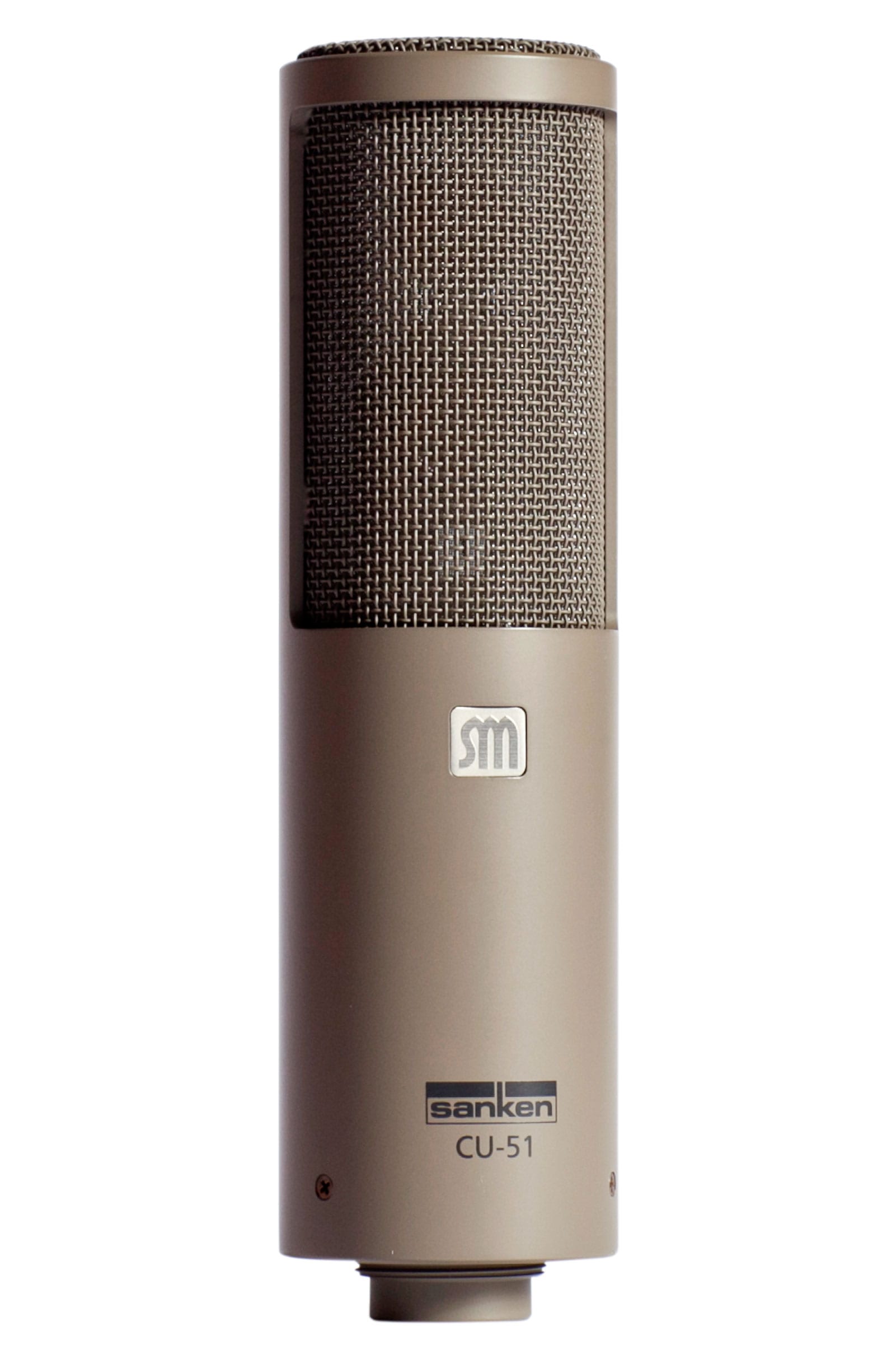

Sanken Chromatic CU-51

This latest addition to the Sanken Chromatic range truly stands out from the crowd – if you have to choose one mic then this is the one.

It is ideal for vocals but in reality, it can capture the essence of any instrument with clarity and transparency that has to be heard to be believed. The sound is consistent throughout the entire cardioid pattern.

CU-51 Advanced Design Excels In Every Application

Perfect for vocals and music delivering all the magic

Over 90 years of technological innovation and artist feedback have gone into the design of this unique microphone. No other manufacturer includes the features of the CU-51. What you hear in the studio is what you capture in the control room. The CU-51 offers a new dual-capsule design pioneered by Sanken, providing an exacting cardioid pattern ideal for vocals and a wide range of musical applications. The CU-51 also has a very low proximity effect making vocals and instruments seem bigger than life.

A very special characteristic of the CU-51 is its ability to maintain uniform response in both on-axis and off-axis positions. It is common knowledge that varying the direction of a microphone will change the frequency response and tone.

The tone and response of the CU-51 remain consistent through changes in the axis angle while maintaining the benefits of a large capsule design. The CU-51’s frequency response is truly flat at 90 degrees, essential in maintaining sonic transparency.

The CU-51’s specially designed double capsule has one diaphragm that is optimized for low frequencies, while the other one captures the higher frequencies with guaranteed phase coherency between the two capsules in a meticulously engineered microphone that achieves totally transparent high-resolution results. The PPS (Polyphenylene) membranes are immune to the effects of humidity and temperature change, resulting in consistent response, regardless of the recording environment.

The CU-51 consistently delivers a high transient, natural and uncolored sound with vivid sonic imagery.

Perfect for vocals and acoustic instruments
Dual-phase coherent capsules – low and high
Uniform response in both on-axis and off-axis positions
Truly flat frequency response even at 90 degrees
Low proximity effect

Applications

Acoustic Guitar
Background or Chorus Vocals
Brass and Woodwind
Drums Close Mic
Orchestra Solo
Percussion
Piano
Strings
Upright Bass
Vocals

Specifications

Model Name	CU-51
Transducer	DC biased condenser
Directivity	Cardioid
Frequency response	20Hz – 20kHz
Sensitivity	-30dB (31.6mV , 0dB=1V/Pa)
Equivalent noise level (IEC)	14dB-A
Max SPL(1% THD)	138dB SPL
Output impedance( 1kHz )	150 ohms
Powering	+48V±4V phantom
Current consumption	4mA
Weight	430g/.95lbs
Dimensions	157mm X 41.5mm (D) 6.2in x 1.6in (D)
Surface finish	Matte brown
Connector	XLR-3-12C(M) equivalent 1: GND, 2: Hot, 3: Cold
