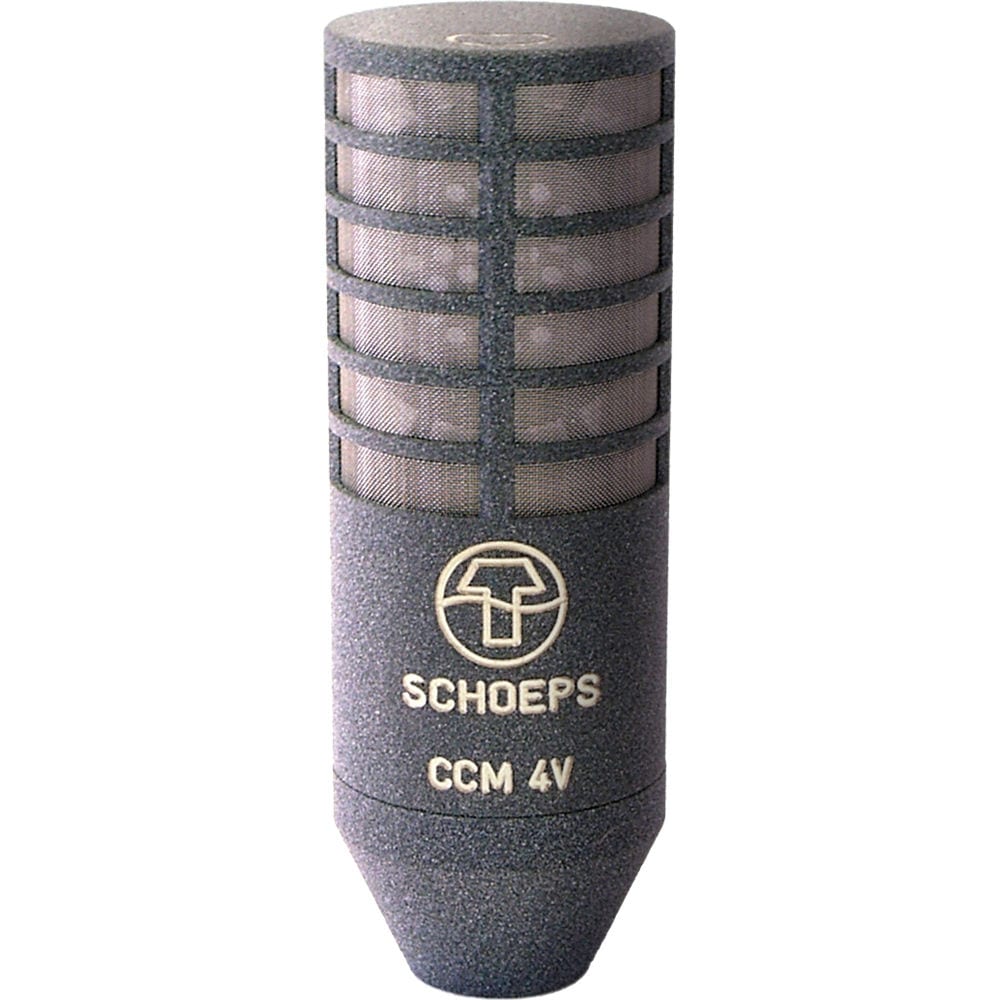

Schoeps CCM 4V

Cardioid Microphone Capsule

Description

The CCM 4V was created in answer to requests for a cardioid with its main axis along the side. In addition to its usefulness in the concert hall, this microphone type is of particular value in speech recording, since its slight emphasis around 10 kHz helps to improve intelligibility.

The directional response is especially well maintained even at higher frequencies, due to the acoustically transparent housing. There is a less high-frequency emphasis of off-axis sound than occurs with most small, axial-response cardioids. The CCM 4V still sounds somewhat brighter than the CCM 4, however, because of its overall frequency response.

PROPERTIES

  • vertical (side-addressed) cardioid capsule
  • for a very wide range of recording applications
  • slight high-frequency emphasis
  • often preferred for singing or speaking voices, most instruments, spot microphones and stereo techniques such as XY, ORTF, and MS.

PRACTICE

The CCM 4V may be easier to use in near-coincident setups than the CCM 4: the microphone bodies do not get in each other’s way.

TECHNICAL SPECIFICATIONS

Frequency rangesee the corresponding capsule
Sensitivitysee the corresponding capsule
Maximum sound pressure level (THD < 0.5 %)136 dB-SPL (P48)
128 dB-SPL (P12)
Maximum output voltage2,6 V (8,3 dbV) with 2 kΩ load
Low cut filter20 Hz, 12 dB/Okt.
Output impedance90 Ω @ 1 kHz
Maximum cable length> 400 m
SCHOEPS RFI ShieldNo
Powering standard / Valid rangeP48 / > 40 V
P12 / > 10 V
Current consumption4 mA (P48)
3,6 mA (P12)
Common mode rejection ratio (at 1 kHz)> 55 dB
Minimum recommended load impedance2 kΩ
OutputLemo (CCM-L) or XLR-3M (CCM-U),
analog, 1 channel
Length58 mm (CCM-L)
Diameter20 mm
Weight45 g (CCM-L)
Surface finishmatte gray (g)
or custom color
