Description

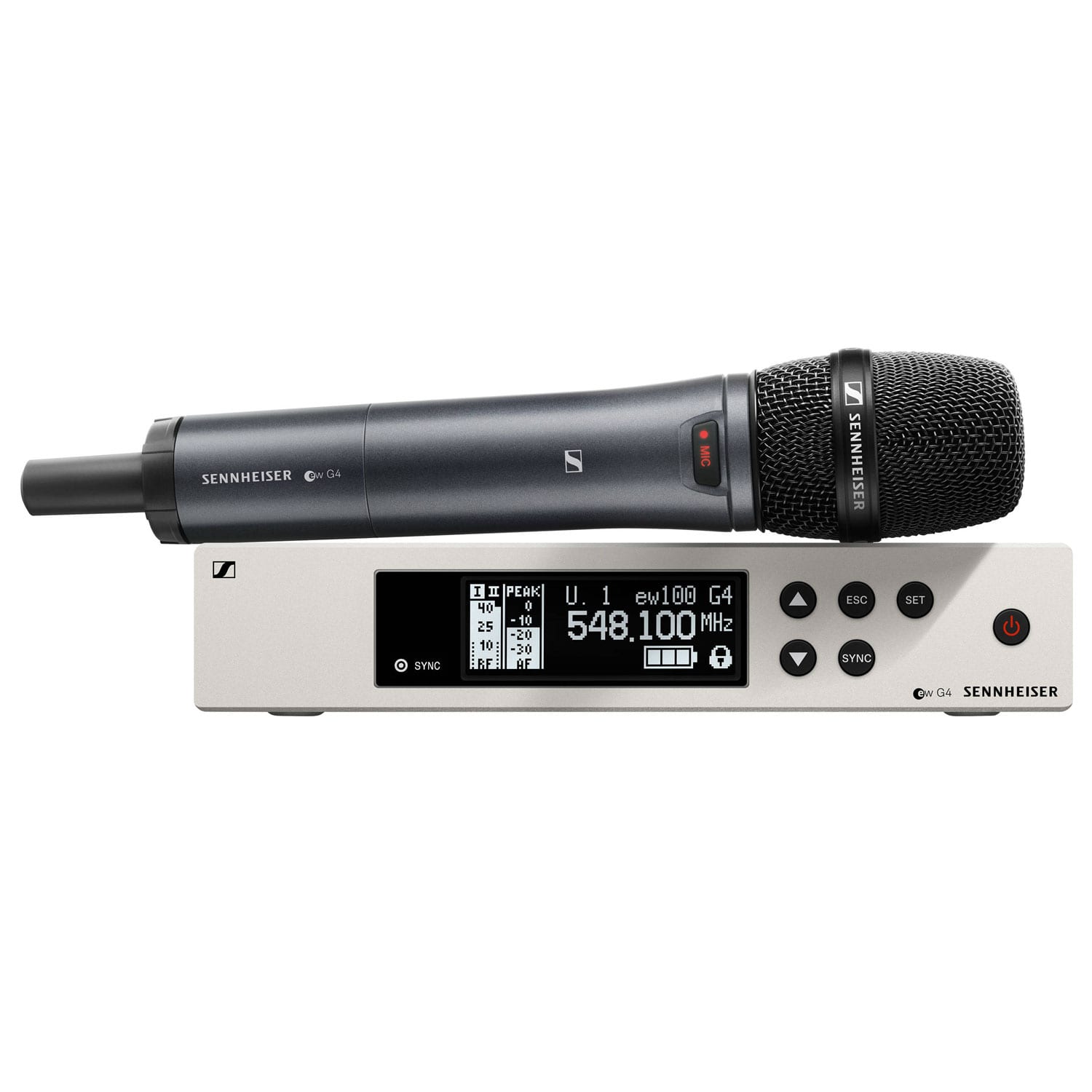

Sennheiser EW 100 G4-935-S

Now even more simple, flexible and reliable: The 100 series has become the first choice for both sound designers and occasional users because of its simple operating concept – and because the system makes no compromises in terms of live sound.

Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.
State-of-the-art live sound featuring Sennheiser‘s renowned e 835, e 845, e 865, e 935, and e 945 capsules on a lightweight aluminum transmitter with an integrated mute switch
True diversity half-rack receiver in a full-metal housing with an intuitive LCD display for full control
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Fast frequency allocation for up to 12 receivers via new linking functionality
Up to 20 compatible channels
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Transmission Range: up to 100 meters / 300 feet
High RF output power (up to 30 mW) depending on country regulations

Reliability and performance

Eventually, you’ll get to a level in your career as an engineer or musician when the size stage you’re performing on demands more than an entry-level wireless system. You simply need more reach, more power, and more reliability than what a 2.4 GHz system will allow. Enter the evolution wireless G4 100 Series—the next level in your journey as a stage professional.

Feature-rich and built to last

The evolution wireless G4 100 Series is packed with features that make it possible to get you up and running fast and efficiently. Use the Easy Setup function to automatically scan and select the best frequencies around you and take full advantage of the UHF spectrum. With up to 100 meters of range and a battery life of 8 hours, it’s easy to see how the durably constructed ewG4 transmitters and receivers will perform when you need them to.

Differences between the sets

While the 800 series capsules have an EQ designed to help your vocal cut through the mix, the 900 series capsules offer a more natural sound ideal for large-scale PA systems or performance spaces. The 935 features a cardioid polar pattern that rejects sound from the sides and rear and is ideal for most stages. For louder stages that are susceptible to feedback, the super-cardioid polar pattern of the 945 will come into play, as it provides even more isolation for your vocal performance.

Specifications

EM 100 G4

Frequency range
1G8: 1785 – 1800 MHz
A: 516 – 558 MHz
A1: 470 – 516 MHz
AS: 520 – 558 MHz
B: 626 – 668 MHz
C: 734 – 776 MHz
D: 780 – 822 MHz
E: 823 – 865 MHz
G: 566 – 608 MHz
GB: 606 – 648 MHz
Dimensions
Approx. 190 x 212 x 43 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
≤ 0.9 %
Weight
Approx. 980 g
Audio output
6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu
Signal-to-noise ratio
≥ 110 dBA
Switching bandwidth
up to 42 MHz
Peak deviation
±48 kHz
Nominal deviation
±24 kHz
Modulation
Wideband FM
Power supply
12 V DC
Antenna connector
2 BNC sockets
Current consumption
300 mA
Adjacent channel rejection
Typically ≥ 65 dB
Intermodulation attenuation
Typically ≥ 65 dB
Receiving frequency
Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
RF sensitivity
< 2.5 μV for 52 dBA eff S/N
Squelch
low: 5 dBµV middle: 15 dBµV high: 25 dBμV
Equalizer
Preset 1: Flat
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)
Temperature Range
-10 °C to +55 °C
Receiver Principle
True diversity
Blocking
≥ 70 dB

SKM 100 G4-S

Dimensions
Approx. Ø 50 x 265 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
≤ 0.9 %
Weight
(incl. batteries) approx. 450 g
Signal-to-noise ratio
≥ 110 dBA
RF output power
Max. 30 mW
Switching bandwidth
up to 42 MHz
Peak deviation
±48 kHz
Nominal deviation
±24 kHz
Operating time
Typically 8 h
Modulation
Wideband FM
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 180 mA
with transmitter switched off: ≤ 25 µA
Input impedance
40 kΩ
Max. Input voltage
3 Veff
Powering
3 V battery / 2.4 V rechargeable battery
Transmission frequency
Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response
80 – 18,000 Hz
Temperature Range
-10 °C to +55 °C
Frequency stability
≤ ±15 ppm
