SPL Reducer

SKU: Reducer

200-Watt Power Soak


About this item

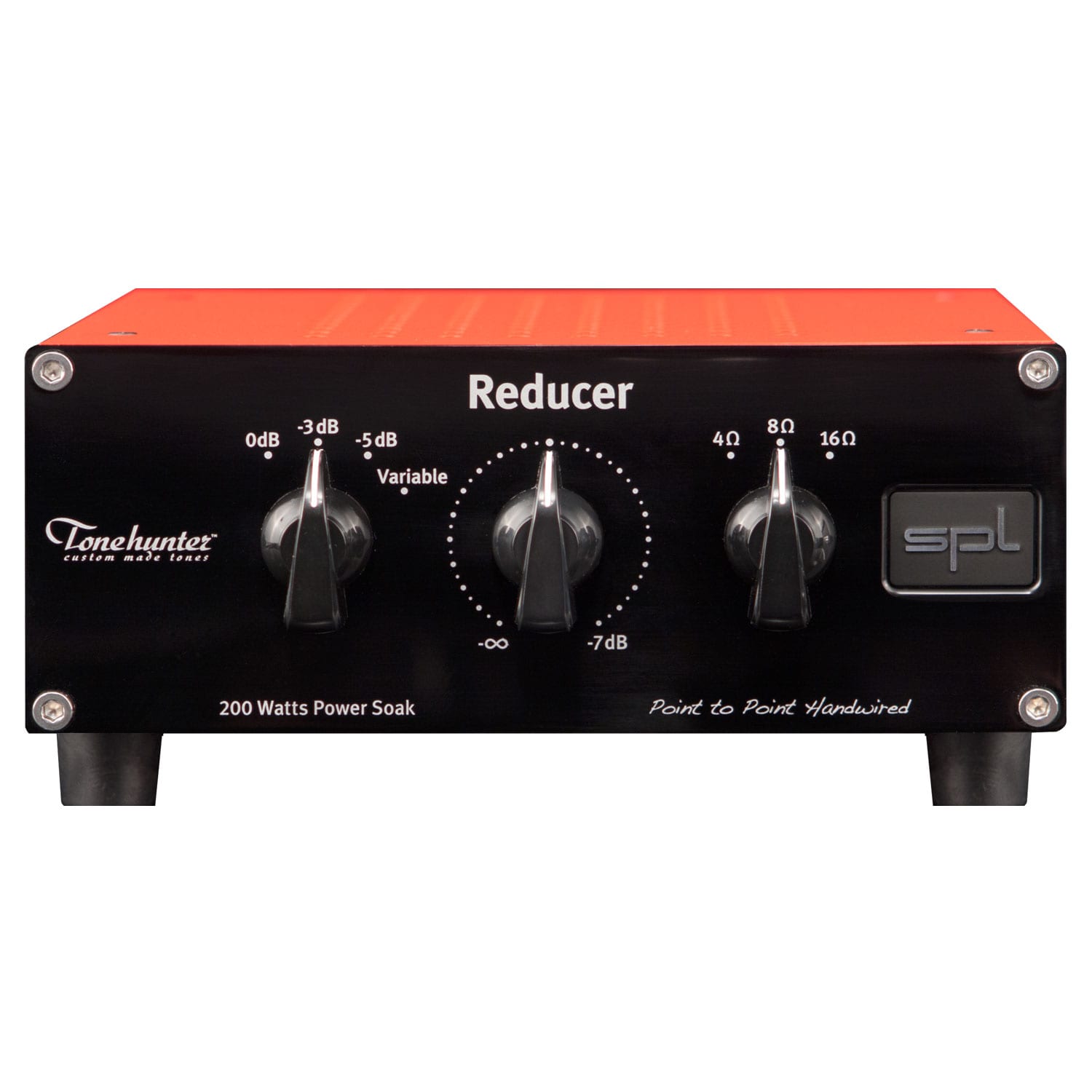

SPL Reducer

The Reducer reduces the output power of guitar or bass amplifiers. Enjoy the rich tube sound and full power amp distortion of your favorite amp even at room volume.


The reducer is connected between the amplifier (head) and the loudspeaker. Here it converts the electrical energy of the amplifier into heat and transmits a reduced power to the loudspeaker. The art here is that the power reduction does not affect the sound, so play quietly with the original sound.

The desired reduction is first switchable, in steps of 3 dB and then 5 dB.

In the last switch position “Variable”, a load potentiometer is used to continuously reduce the level reduction from -7 dB to almost complete fade-out.


The reducer can be connected to amplifiers (heads) with all common impedances.

Available are 4 Ω, 8 Ω or 16 Ω.


Inputs & Outputs; 1/4″ (6,35mm) TS-Jack (unbalanced)

Load impedances, selectable
4 Ω, 8 Ω, 16 Ω
Maximum input power (4 Ω, RMS)
90 W
Maximum input power (4 Ω, Peak)
120 W
Maximum input power (8 Ω, RMS)
200 W
Maximum input power (8 Ω, Peak)
260 W
Maximum input power (16 Ω, RMS)
160 W
Maximum input power (16 Ω, Peak)
180 W

Dimensions & Weight

W x H x D (Width x Height w/ feet x Depth)
179 x 85 x 190 mm
7.05 x 3.35 x 7.48 inch
Unit weight
1.85 kg
4.08 lbs
Shipping weight (incl. packaging)
2.65 kg
5.84 lbs
