For music production, podcast, and live streaming creators

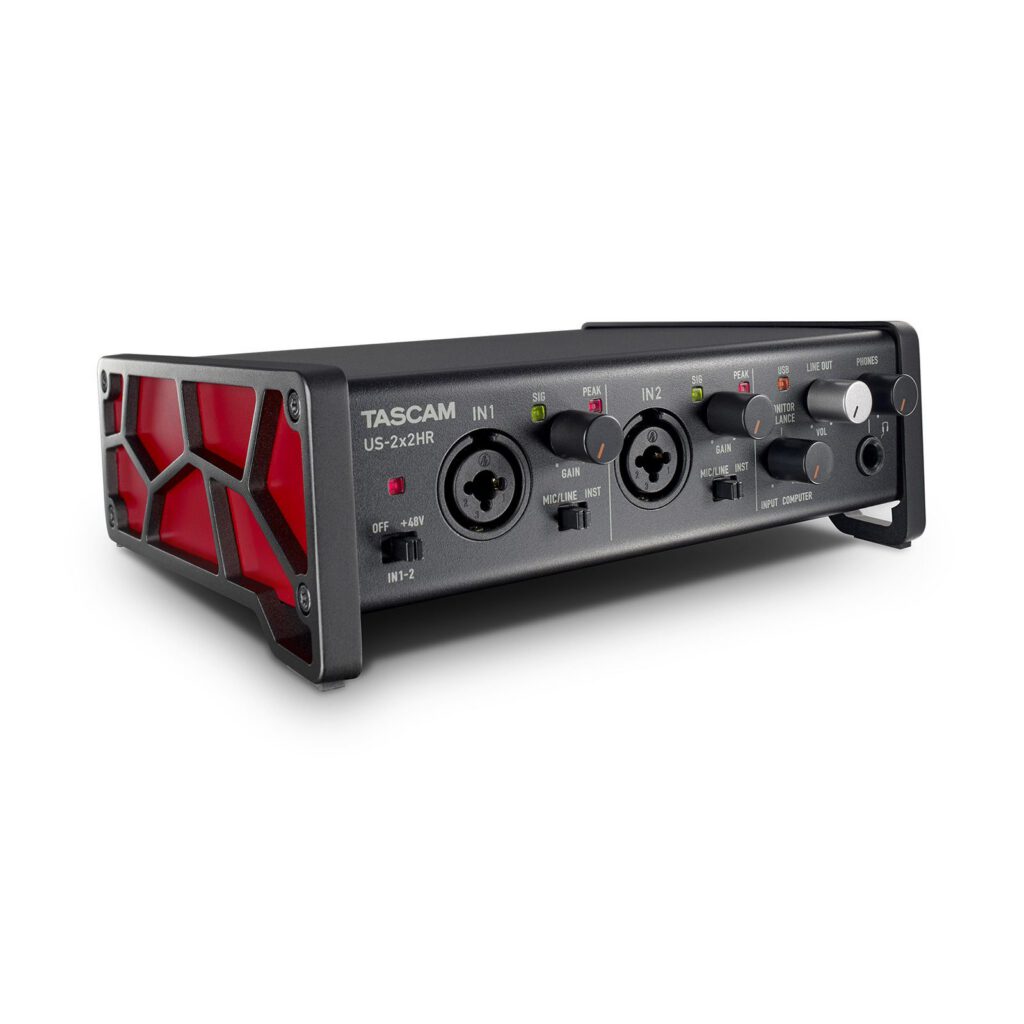

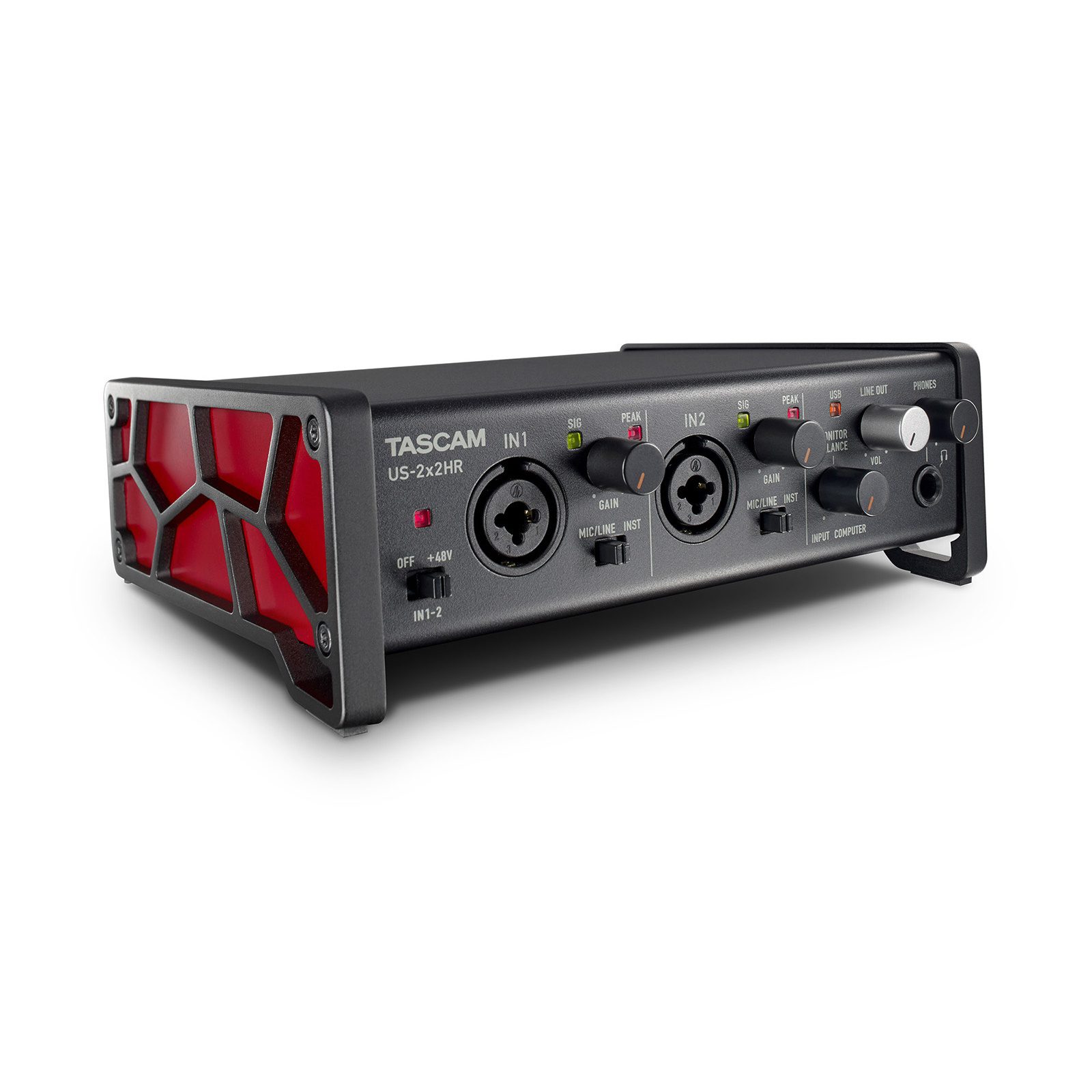

2 combo jack mic/line inputs with guitar input support audio interface with implemented MIDI IN/OUT ports. Equipped loopback function and OBS support make this interface applicable for podcasts and live streaming. The new US-2x2HR offers simple and intuitive operation plus sophisticated looks, a rich assortment of software bundles, and improved audio performance with 192 kHz support, thanks to the newly improved audio circuit.

US-1x2HR US-2x2HR US-4x4HR
USB audio I/F 2 in / 2 out 2 in / 2 out 4 in / 4 out
Mic-preamp 1 2 4
MIDI I/O N/A Available Available
Bus Power Available Available Available *

* 48V phantom power requires PC power supply via USB-C connection.

The optimal interface for music/multimedia creators

The US-2x2HR is equipped with 2 mic/line inputs with guitar input support that can be used in various music/multi-media production environments such as vocal/guitar simultaneous recordings, as wells as high-quality sound recordings for video production. The unit is also equipped with a USB-C port easily powered by USB bus power.

Natural, crisp & clear sound quality thanks to the implemented Ultra HDDA Mic Preamp with 192 kHz support

High-resolution reproduction in the US-HR series has been pursued based on TASCAM’s policy to recreate the sound as close to the original as possible. Therefore, the in-house developed Ultra HDDA mic preamp combined with a newly improved audio circuit delivers enhanced audio performance with the most transparent and low-noise sound.

Zero-latency direct monitoring function

Direct monitoring will diverge signals before sending them to the computer, resulting in smooth, in-time monitoring without any sound delay during both recording and performance.

Create quality content with bundled software

The US-HR models come bundled with world-renowned software that will enhance the user’s production workflow. At the core of music production, Steinberg’s Cubase LE/Cubasis LE 3 DAW is included, along IK Multimedia’s Sample Tank SE, which comes free of charge with a massive 30 GB sound library encompassing more than 2,000 different musical instruments.

US-HR models also come with a free 3-month subscription to Auto-Tune Unlimited, a comprehensive suite of industry-standard pitch correction and vocal effects.

Note: About the number of days remaining displayed in Sample Tank 4 SE

The “XXX days left” message shown on Sample Tank 4 SE Project Manager refers to the download deadline of the sound library, and not the expiration time of usage. The sound library available in the IK Multimedia user area has a 180-day expiration date, so we recommend downloading it before the expiration date.

Please contact IK Multimedia for more information and support regarding Sample Tank 4 SE.

Interface for podcasts and live streaming

The US-2x2HR can be used with computers or smartphones to easily create podcasts or live streams. The audio can be switched between stereo/mono, and the loopback function allows the audio from the computer to be returned to the streaming software for playback during live streams. US-2x2HR also supports OBS, which is popular and used worldwide.

Equipped with MIDI IN/OUT

The MIDI IN/OUT terminals enable other MIDI external devices such as keyboards, drum machines, controllers, etc. to be synchronized and controlled.

Compatible with iPad and other iOS devices

The US-2x2HR can be used as an interface for iPad and other iOS devices.

New audio interface engine

Capitalizing on our experience being one of the pioneers in manufacturing USB audio interfaces, we achieved further stability in our native driver. The audio buffer size can be set starting from 4 samples (Windows only) to give the best performance to every different environment; maximizing the capability of the computer in use while creating a low-latency environment.

Robust metal casing

The US-HR models share a solid and practical design intended to withstand long hours of hard use. Its robust metal jacket not only improves its durability but, combined with dye-cast aluminum side panels, provides a sleek and eye-catching design. In addition, all models have just the right weight, so they won’t move when cables are connected or disconnected.

Features at a glance

  • 2-in/2-out USB audio interface
  • Improved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability (Windows: TASCAM native driver)
  • Supports up to 24-bit/192 kHz audio formats
  • 2 Combo (XLR) combo inputs equipped with Ultra HDDA mic preamps and +48V phantom power
  • 2 Combo (TRS) line inputs with guitar input support
  • TRS line output 1-2
  • Headphone output
  • Equipped with MIDI IN/OUT terminals
  • USB Type-C connection (USB Type-A to Type-C cable included)
  • Powered by USB bus power
  • Zero-latency direct monitoring
  • Compatible with iPad and other iOS devices
  • An extensive line-up of bundled software
    • Steinberg Cubase LE, Cubasis LE 3
    • IK Multimedia Sample Tank 4 SE
    • Antares AUTO-TUNE UNLIMITED (available free of charge for up to 3 months)
  • Compatible with mainstream DAW software (Pro Tools, Live, Cubase, Studio One, GarageBand, Logic Pro)
  • Stereo/mono selectable loopback function (Windows, Mac, iOS, iPad OS)
  • OBS support

Included items

  • US-2x2HR
  • USB cable (Type-A to Type-C)
  • DAW software installation guide
  • DAW plug-in software installation guide set
  • Owner’s manual(warranty card included)


Sampling frequency 44.1k/48k/88.2k/96k/176.4k/192k Hz
Quantization bit rate 24bit
Analog audio inputs
MIC IN IN 1 / IN 2
Connector XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
Input impedance 2.2k ohms
Maximum input level
+9dBu (2.183Vrms)
Gain 56dB
Connector 6.3mm(1/4″)TS-jack(T:HOT, S:GND), UNBALANCED
(When set to “INST” at MIC/LINE INST switch)
Input impedance 1M ohms or more
Maximum input level
Gain 56dB
Connector 6.3mm(1/4″)TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
(When set to “MIC/LINE” at MIC/LINE INST switch)
Input impedance 10k ohms
Maximum input level
Gain 56dB
Analog audio outputs
Connector 6.3mm(1/4″)TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
Output impedance 210 ohms
Nominal output level +4dBu (1.228Vrms)
Maximum output level +20dBu (7.746Vrms)
Connector 6.3mm(1/4″) stereo phone jack
Maximum output level 18mW+18mW or more
(THD+N 0.1% or less, 32ohms loaded)
Output impedance 66ohms
Working impedance 16ohms to 250ohms
Connector Din 5-pin
Format Standard MIDI format
Connector USB Type-C
Format USB2.0 HIGH SPEED (480Mbps)
When connected PC USB bus powered
AC Adapter (TASCAM PS-P520E, sold separately)
When connected iOS/iPadOS AC Adapter (TASCAM PS-P520E, sold separately)
Power consumption 1.75W
Dimensions 186(W) × 65(H) × 160(D)mm (including protrusions)
Weight 2.43lb (1.1kg)
Operating temperature 5 to 35°C
Accessories USB cable (Type-A to Type-C), Set of DAW software installation guides, Set of DAW plug-in software installation guides, Owner’s Manual (including warranty)

Audio performance

Mic amp EIN (equivalent input noise) -128dBu or lower
Frequency response
44.1k/48k Hz 20Hz to 20kHz, +0dB/-0.4dB(JEITA)
88.2k/96k Hz 20Hz to 40kHz, +0dB/-0.4dB(JEITA)
44.1k/48k Hz 20Hz to 40kHz, +0.2dB/-0.1dB(JEITA)
88.2k/96k Hz 20Hz to 40kHz, +0.2dB/-0.4dB(JEITA)
THD + N 0.0013% (MIC IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF)
0.0011% (LINE IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF)
0.0012% (LINE OUT, 1kHz sine wave, -4dBFS input, MONITOR knob at maximum, 20kHz SPCL LPF)
S/N ratio 110dB (MIC IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight)
108dB (LINE IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight))
110dB (LINE OUT, MONITOR knob at maximum, 20kHz SPCL LPF+A-Weight)
Crosstalk 95dB or more (MIC/LINE IN to LINE OUT, 1kHz sine wave, GAIN knob at minimum)

Computer system requirements

Compatible computers Windows computer with a USB 2.0 (or higher) port
CPU type/speed 2GHz or faster dual-core processor (x86)
Memory 2GB or more
Compatible computers Mac with a USB 2.0 (or higher) port
CPU type/speed 2GHz or faster dual core processor
Memory 2GB or more
Driver Core Audio, Core MIDI

* Verified with Intel and Apple Silicon (M1 and M2) hardware

iOS/iPadOS divice
Driver Core Audio

* To connect an iOS device that has a Lightning connector, a genuine Apple Lightning to USB Camera Adapter (sold separately) is necessary.

Supported OS’


Windows 10 2022 Update (Version 22H2) New, Windows 11 2022 Update (Version 22H2) New, Windows 11, Windows 10 (November 2021 Update) , Windows 10 (May 2021 Update), Windows 10 (October 2020 Update), Windows 8.1, Windows 7


macOS Ventura New , macOS Monterey , macOS Big Sur , macOS Catalina , macOS Mojave , macOS High Sierra (10.13)


iPadOS 16 New, iOS 15, iPadOS 15, iPadOS 14, iOS 14, iPadOS 13, iOS 13, iOS 12
