Description

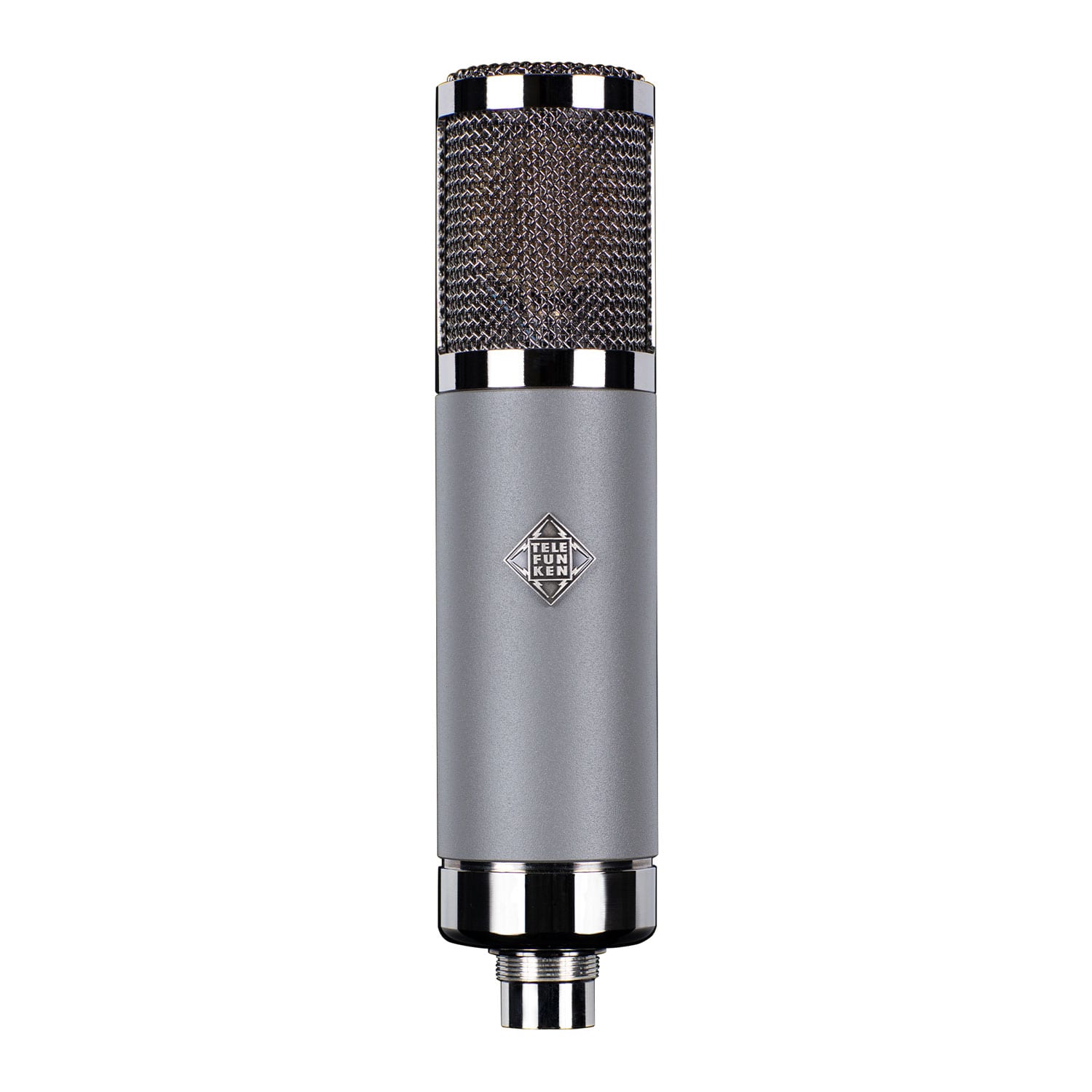

Telefunken TF51
The TF51 is a fresh take on the “Austrian” microphone sound associated with the TELEFUNKEN ELA M 251E and C12. The TF51 continues this legacy, exhibiting a smooth midrange and airy top end, capturing every nuance in pleasant detail. This is a reliable first choice for stand out vocals, acoustic instruments, and percussion.
Circuit Design
This lifelike fidelity is created with high-quality components based on these inspirations. The 6072A vacuum tube (also found in our ELA M 251E and C12) is mated with an edge-terminated style capsule similar to the historic CK12. The output transformer is a custom German-made Haufe transformer, the original manufacturer for TELEFUNKEN. This attention to detail gives the TF51 a beautifully open and smooth sonic profile.
Key Features
- Open and detailed frequency response
- Airy and smooth top end, reminiscent of the ELA M 251E
- Balanced low-end and natural mid-range
- Hand assembled in the USA
- CK12-style capsule and Haufe transformer, similar to the C12 and 251E
Applications
- Female vocals, Pop vocals
- Acoustic guitar
- Drum overheads
- Violin
- Mandolin
- Grand piano
Audio Comparison
Listen to the distinct voices of the Alchemy Microphone Series; the “Copperhead” sound of the TF29 and TF39, the “German” voiced TF47, and the “Austrian” voiced TF51. Compare the sonic characteristics of each voice on classic studio applications like drum overheads, guitar cabinets, and vocals.
Accessories
Every TF51 microphone system comes with a multi-pattern M 903 Power Supply, M 803 Tube Microphone Cable, ZC03 Shell Case, M 703 Shock Mount, M 782 Stand Mount, and Microphone Sleeve.
Technical Specifications
Type: Vacuum Tube Condenser
Polar Pattern: Cardioid, Omnidirectional, Figure-8
Frequency Range: 20 Hz – 20 kHz, ±3 dB
Power Source: External Power Supply
Capsule: TK51 Edge Terminated Large Diaphragm
Tube: TELEFUNKEN Elektroakustik 6072a
Transformer: Haufe T31
Sensitivity: 19 mV/Pa, ±1 dB
THD at 1kHZ at 1Pa (Amplifier): < 0.4%
Output Impedance: < 300 Ω
Maximum SPL (for 1% THD): 128 dB
S/N Ratio: 86 dBA
Self Noise (Amplifier): 8 dBA
Dimensions: 200 mm L x 46 mm Dia
Weight: 615 g
Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Stand Mount, Mic Sleeve, Carrying Case
