Digital Audio Labs Livemix AD-24

24 Channel Analog Input Unit

Description

Digital Audio Labs Livemix AD-24

If you have an analog-based system, the Digital Audio Labs Livemix AD-24 Analog Input Rack Unit takes your analog signals and converts them to digital, for use in the Livemix system. It will most likely be installed near the analog source. If this is your mixer’s Direct Outs or Inserts, then the AD-24 will be near the mixer. If you use a snake with mic preamps, it might be near the snake.

The AD-24 receives your input signal via TRS or DB-25. The inputs pass through, so you can send your audio to the AD-24 via DB-25, and back out through the TRS if required.

The front panel interface indicates input signal levels by LED and allows the selection of -10 dBV or +4 dBu line levels, which are in stereo pairs.

24 Balanced/Unbalanced Inputs

With 24 inputs, the Livemix personal monitor system is the perfect balance of a number of channels and simplicity of use. The AD-24 can receive analog audio via TRS or DB25. The processed audio is sent to the MIX-16 or MIX-32 over a single shielded CAT5 or CAT6 cable.

1/4“ & DB-25 Connectors

Connect 24 analog inputs via TRS or DB25 for analog input into the Livemix personal monitor system. The dual format inputs provide a pass-through connection so you can insert the AD-24 into your signal chain with no loss.

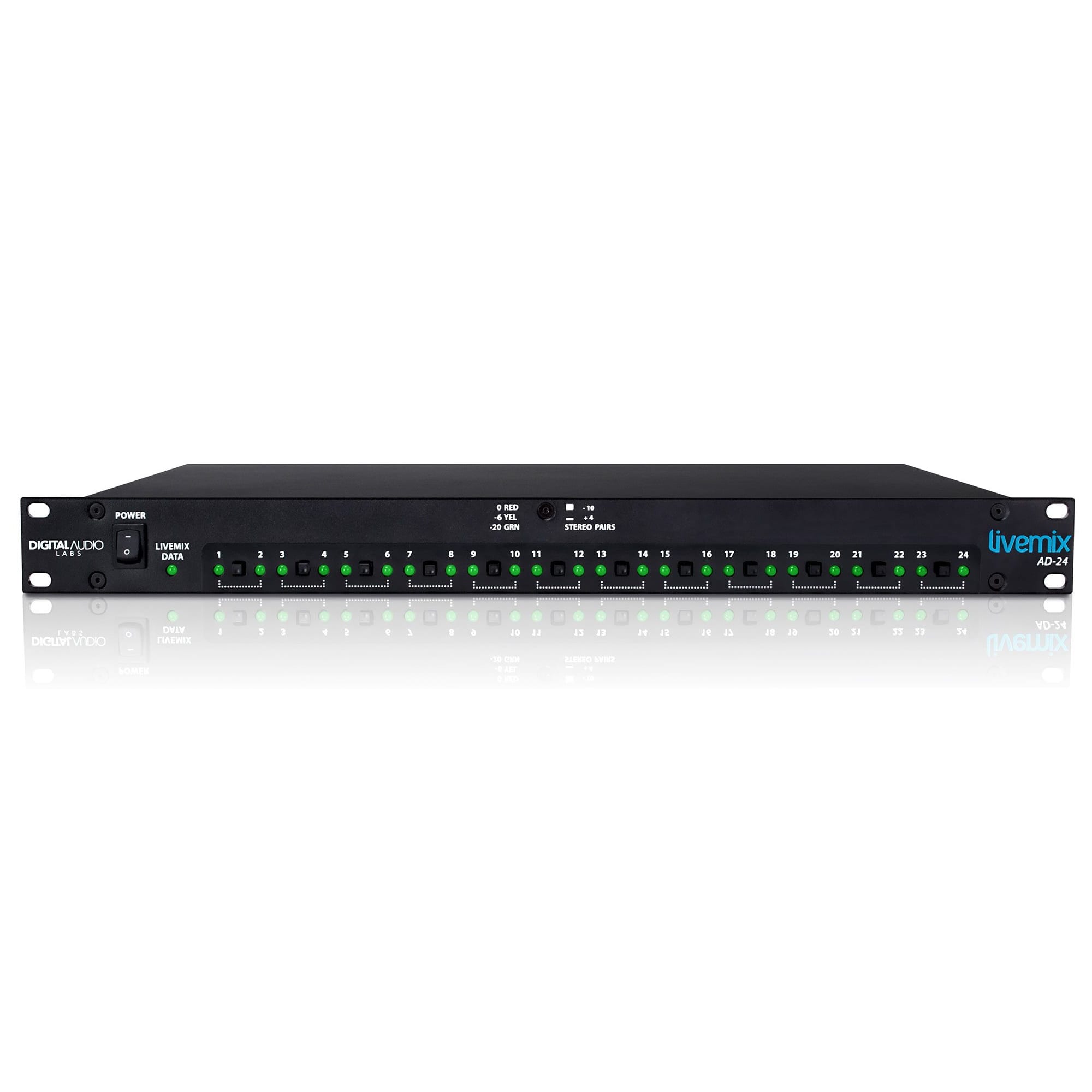

Front Panel VU

LEDs on the front panel of the AD-24 give a clear indication of when a signal is overloading making it easy to check and adjust the gain structure.

Front panel +4dBu/-10dBV switches

You can configure the inputs on the AD-24 to accept either an a-10dbV signal (common in consumer-level products) or a +4dBu signal (common in pro audio devices). Front panel switches allow easy switching between line levels for input pairs.

High-Quality Audio Conversion

With high-quality audio conversion, the AD-24 ensures that the audio you are mixing is of the best possible quality. Clean and “tight” audio signals make it much easier to mix than audio that is not defined and smears across frequencies.

External Power Supply

An external power supply ensures clean audio paths and minimal power interference.


Specifications

LIVEMIX AD-24
THD+N .001%
S/N Ratio 111 dB
Frequency Response 20 Hz – 22KHz ± .5dB
Crosstalk -92 dB
Maximum Input Level +24 dBu (minor distortion above 23.5 dBu, hard clip at +24 dBu)
Input Impedance 20KΩ Balanced, 10KΩ Unbalanced
Max cable length to MIX-16/MIX32 100m CAT5e cable (shielded required)
