Description

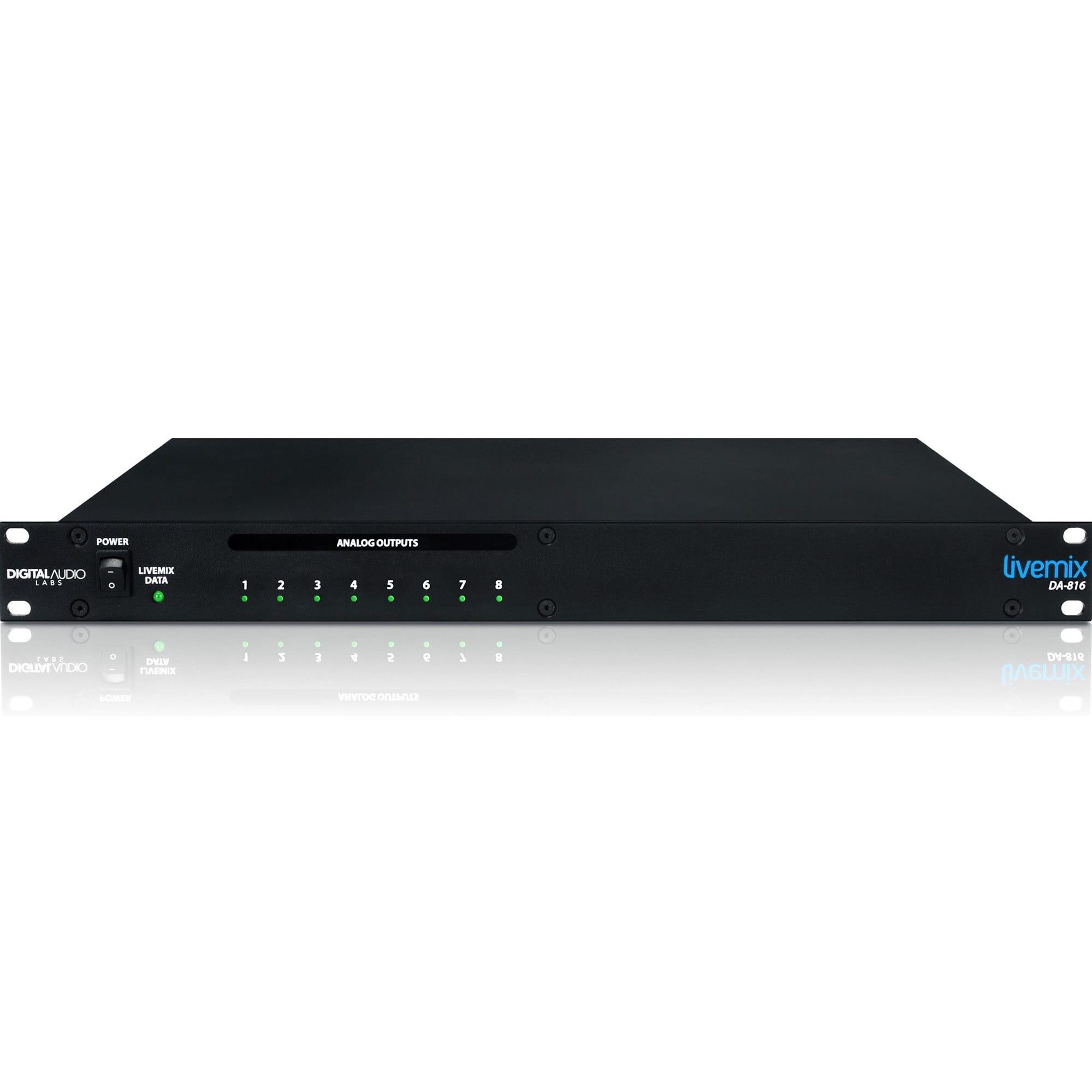

The Digital Audio Labs Livemix DA-816 output rack unit is for connecting to wireless in-ear transmitters, powered monitors, or powered house speakers. The DA-816 connects to the MIX-16 or MIX-32 via a shielded CAT5e network cable. Each DA-816 provides eight stereo TRS outputs. The DA-816 provides stereo balanced outputs for 8 personal mixes. Flexible SoftRouteâ„¢ mix assignments and test tone capabilities make for quick setup. Front panel LEDs indicate a personal mix is assigned to one or more of the outputs. When the Output ID feature is enabled and output is selected, the front panel LED illuminates and a test tone is sent to the output.
FEATURES
16 balanced TRS outputs in stereo pairs
The 16 balanced TRS outputs on the DA-816 provide stereo outputs for up to 8 Livemix mixes.
Easy setup from CS-DUO personal mixer with SoftRoute
Seamlessly assign mixes to wireless in-ear monitors using SoftRouteâ„¢ on the Livemix CS-DUO or CS-SOLO personal mixers.
Output ID with Indicator LED
The Output ID makes it easy to identify devices connected to DA-816 outputs. When engaged, a front panel LED flashes and a test tone is sent through the selected output. No more digging behind the rack to find out what output is connected to what transmitter.
Option Card Slot
For future compatibility, an option card slot is included on the back of the DA-816. This insures that the Livemix system always stays current with new technologies.
CURRENT FIRMWARE VERSION
|
CS-SOLO/CS-DUO
|
2.15
|
|
MIX-16/MIX-32
|
2.19
|
|
DA-816
|
1.11
|
|
LM-DANTE-EXP (only)
|
18.2.7.116
|
|
LM-DANTE-EXP2
(no update needed at this time)
|
18.3.13.127
|
| LIVEMIX DA-816 |
| THD+N |
.0019% |
| S/N Ratio |
104 dB |
| Full Scale Output |
+4 dBu/19 dB peak |
| Output Impedance |
300Ω |
| Max cable length to MIX-16/MIX32 |
100m CAT5e cable (shielded required) |
AccessoriesÂ
MT-1 DUAL POSITION MOUNT
The Livemix MT-1 microphone stands mount is a dual position mount for Livemix personal mixers. The MT-1 mounts on top of a microphone stand (with included brass locking nut), or using the built-in clamp, secure mount to microphone or music stand.
The FP-2 is a multi-function foot pedal allowing hands-free control of key CS-SOLO and CS-DUO features. The FP-2 allows musicians and performers to make channel selections and mix adjustments without taking their hands off their instruments or microphones.
The LM-MICPRE is a mic preamp that allows you to use an external dynamic microphone as your intercom mic. This frees up channels on the mixer as well as gives MDs and Techs a clear and direct line of communication to the team!
Shielded CAT6 cables for connecting Livemix personal monitor system components. The shielding adds extra protection from other signals like wireless microphones and wi-fi connections. Note: Shielded CAT5e cables are perfectly acceptable to use with the Livemix Personal Monitor System.
Snake cables in various configurations provide connections from your analog gear to the Livemix AD-24.
