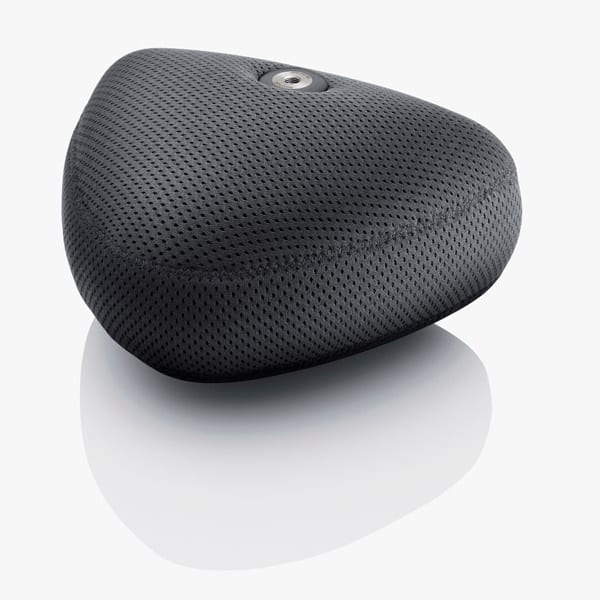

DPA 5100 Mobile 5.1 Surround Microphone

Description

DPA 5100 Mobile 5.1 Surround Microphone

Plug-and-play surround sound

• Plug-and-play solution
• Compact, lightweight, and portable
• Rich, smooth, and fully enveloping sound
• Discrete 5.1 analog output – no processing needed

The DPA 5100 Mobile Surround Microphone is a completely self-contained plug-and-play solution for 5.1 audio capture. It brings engaging surrounding ambiance to sports events, documentaries, and other HDTV productions. This microphone is versatile and can be mounted in many ways: via a microphone stand, suspended from the ceiling, or via a handgrip. It is lightweight and portable. It can also withstand inclement weather conditions due to its robust nature.

The 5100 includes:

• Outdoor Cover – OC5100
• Lemo Multipin to 6x XLR-M cable
• The 5100 Mobile Surround Microphone uses five miniature pressure transducers. These transducers have low sensitivity to wind and mechanical noise, low distortion, and low-frequency response. They also have a large dynamic range. The three front microphones in this system are time-aligned to eliminate comb filtering. This also ensures frequency consistency when downmixing to stereo or mono. In contrast, the rear microphones, with standard omnidirectional patterns, are optimally spaced from both each other and the front array to simulate the most natural time arrival differences. The end result of DPA’s innovative design approach is a surrounding atmosphere that is rich, smooth, and fully enveloping, great in its coherence, channel separation, and localization accuracy. The 5100 Mobile Surround Microphone requires no external signal processing.

This solution is targeted at surround sound recording for film, live, broadcast, and studio applications. Using full surround sound is an amazing way to record a symphony. Most orchestras are self-balancing phenomena – each instrumental part can be heard without the need for additional miking. As well, acoustic reflections and a sense of acoustic space are important aspects of the sound of an orchestra – just as much as the instruments themselves.

For sports applications, the 5100 is easy to set up. It is a no-worry, 5.1-ambiance solution that is placed centrally to cover the main camera shot and backed up by the usual spot mics for additional effects.

The 5.1 output of the microphone runs through a multipin Lemo connector. This connector carries all six electronically-balanced channels.

The microphone comes with:

• • A five-meter (16 ft), six-pair Mogami cable that breaks out to six Neutrik XLR-M connectors.
  • An Outdoor Cover (OC5100) that protects the 5100 against rain and reduces wind noise.
