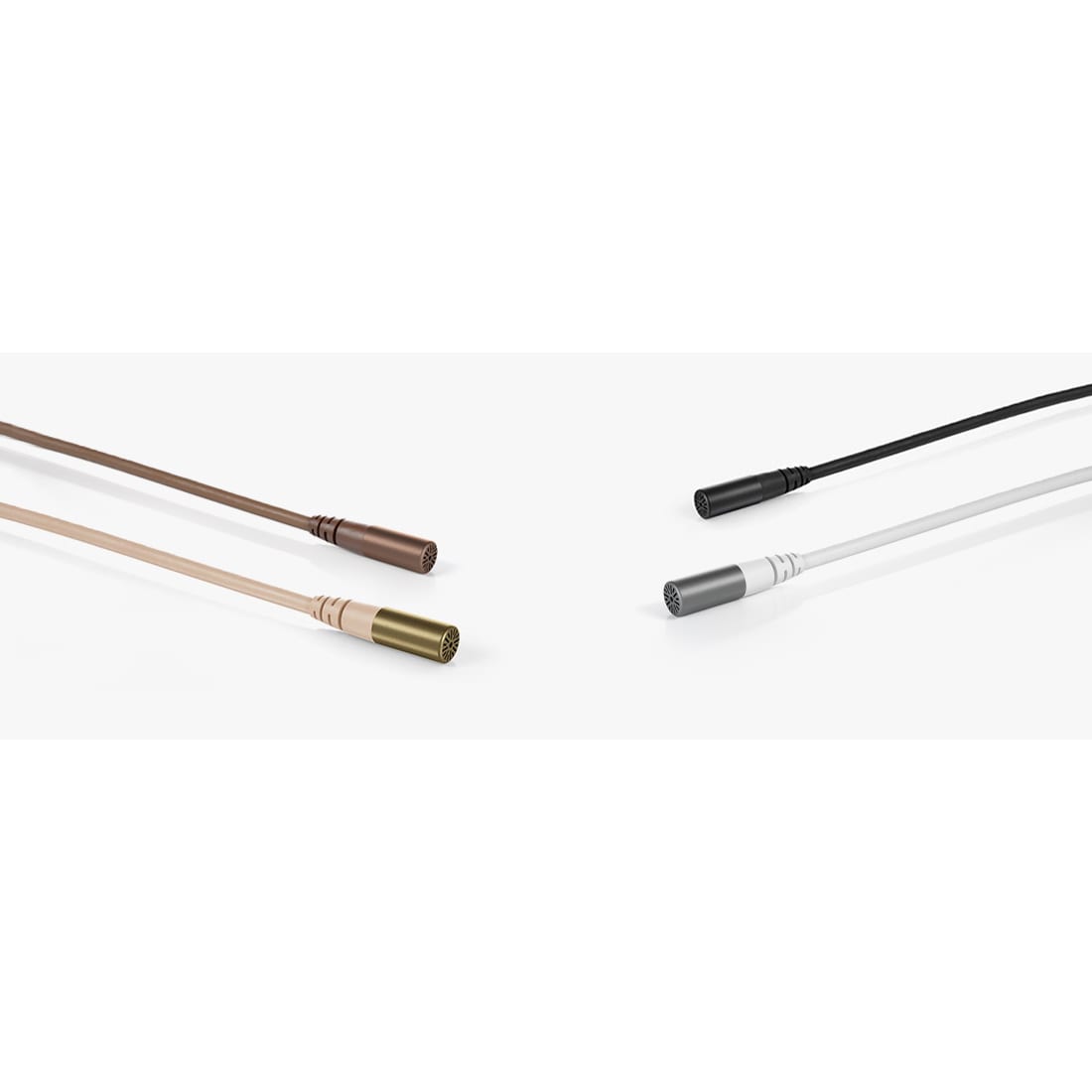

DPA 6060 Series Subminiature Microphone

Description

6060 CORE Subminiature Microphones are just 3 mm (0.12 in) in size but pack the audio power of our larger,  award-winning DPA mics. What they lack in size, they more than make up for in clarity, consistency, and durability – three qualities that really matter. By shrinking CORE by DPA technology, we ensure you don’t have to compromise on sound to focus on aesthetics.

  • Amazing 3 mm CORE capsule technology
  • Renowned DPA sound in a 60% smaller package
  • Stainless steel, PVD-coated mic housing
  • Modular adapter system fits most professional wireless systems

Specifications

FOR NORMAL SPL

  • Directional pattern – Omnidirectional
  • Principle of operation – Pressure
  • Cartridge type – Pre-polarized condenser
  • Effective frequency response – 20 Hz – 20 kHz
  • Frequency range, ±2 dB – 40 Hz – 20 kHz with 4 dB soft boost at 8 – 20 kHz
  • Sensitivity, nominal, ±3 dB at 1 kHz – 20 mV/Pa; -34 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted – Typ. 24 dB(A) re. 20 μPa (max. 26 dB(A))
  • Distortion, THD < 1% – 123 dB SPL RMS, 126 dB SPL peak
  • Dynamic range – Typ. 102 dB
  • Max. SPL, THD 10% – 134 dB SPL peak
  • Rated output impedance – From MicroDot: 30 – 40 Ω. From DAD6001-BC: 100 Ω
  • Cable drive capability – Up to 300 m (984 ft) with DAD6001-BC XLR adapter
  • Power supply (for full performance) – Min. 5 V to max. 10 V through DPA adapter for wireless systems. With DAD6001-BC: 48 V phantom power ±4 V for full performance. Works from 12V
  • Connector – MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
  • Color – Black or beige
  • Weight – 8 g (0.29 oz) incl. Cable and MicroDot connector
  • Microphone head size (h x w x d) – 3.4 / 14.4 mm (0.13 / 0.57 in)
  • Capsule diameter – 3 mm (0.12 in)
  • Cable length – 1.8 m (5.9 ft)
  • Polarity – Positively increasing sound pressure produces positive going voltage on MicroDot pin
  • Temperature range – -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH) – Up to 90%

FOR LOUD SPL

Directional pattern – Omnidirectional
  • Principle of operation – Pressure
  • Cartridge type – Pre-polarized condenser
  • Effective frequency response – 20 Hz – 20 kHz
  • Frequency range, ±2 dB – 40 Hz – 20 kHz with 4 dB soft boost at 8 – 20 kHz
  • Sensitivity, nominal, ±3 dB at 1 kHz – 6 mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted – Typ. 26 dB(A) re. 20 μPa (max. 28 dB(A))
  • Distortion, THD < 1% – 125 dB SPL RMS, 128 dB SPL peak
  • Dynamic range – Typ. 102 dB
  • Max. SPL, THD 10% – 144 dB SPL peak
  • Rated output impedance – From MicroDot: 30 – 40 Ω. From DAD6001-BC: 100 Ω
  • Cable drive capability – Up to 300 m (984 ft) with DAD6001-BC XLR adapter
  • Power supply (for full performance) – Min. 5 V to max. 10 V through DPA adapter for wireless systems. With DAD6001-BC: 48 V phantom power ±4 V for full performance. Works from 12V
  • Connector – MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
  • Color – Black or beige
  • Weight – 8 g (0.29 oz) incl. Cable and MicroDot connector
  • Microphone head size (h x w x d) – 3.4 / 14.4 mm (0.13 / 0.57 in)
  • Capsule diameter – 3 mm (0.12 in)
  • Cable length – 1.8 m (5.9 ft)
  • Polarity – Positively increasing sound pressure produces positive going voltage on MicroDot pin
  • Temperature range – -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH) – Up to 90%
