Radial Cab-Link

Passive Speaker Cabinet Merger


The Radial Cab-Link provides a simple and compact solution for players who have a single speaker output on their amplifier but want to connect to two cabinets simultaneously.

  • Connect one amplifier output to two speaker cabinets
  • Can use in series or parallel configuration
  • Compact and completely passive, no need for power
  • Additional line output with level control

The simple way to connect two cabinets to your amp

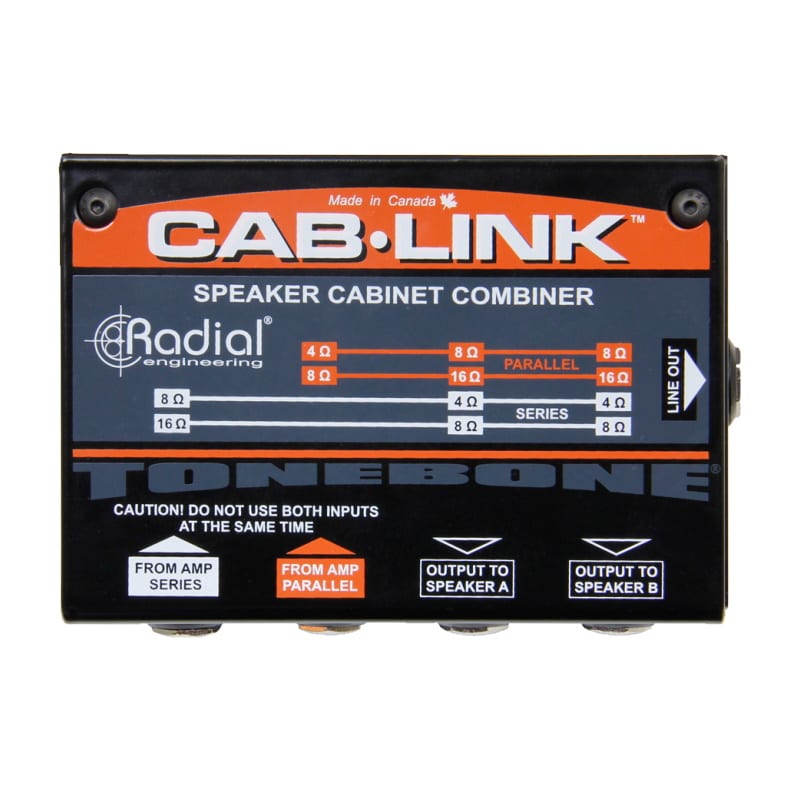

Whether you want to wire up your cabinets in series or in a parallel configuration, the Cab-Link makes things easy. Simply connect two speaker cables from the Cab-Link outputs to each of your cabinets, and a third speaker cable from the output of the amp head to either the series or the parallel input. The Cab-Link reconfigures automatically depending on which input is used, and a handy guide on the top of the unit lets you know which input should be used to best match the impedance between your amp and the cabinets. A line output with a level control provides additional functionality and can be used to feed the input of another amplifier or an effects unit.

The Cab-Link is a completely passive audio merger that allows you to connect a single amp head with two speaker cabinets. It has a maximum power rating of 400 Watts and can be operated in series or parallel configuration depending on the impedance ratings of the amplifier and cabinets. 14 gauge steel construction and high-quality components ensure the Cab-Link will last for years, and a ¼” line output with variable level control provides additional flexibility for signal routing.

Audio circuit type: 100% passive
Maximum Power Rating: 400W
Level Control
Input Connectors: 1/4″ Series or Parallel
Output Connectors: 1/4″ Speaker A, Speaker B, Line Out
Extras: Trim Control for Line Out
Construction: 14-gauge steel chassis & outer shell
Size (L x W x D): 4.63″ x 3.25″ x 1.38″ (11.8cm x 8.3cm x 3.5cm)
Weight: 1.16lb (0.52kg)
Shipping size (L x W x D): 6.25″ x 4.25″ x 3″ (15.9cm x 10.8xm x 7.6cm)
Shipping weight: 1.46lb (0.7kg)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
