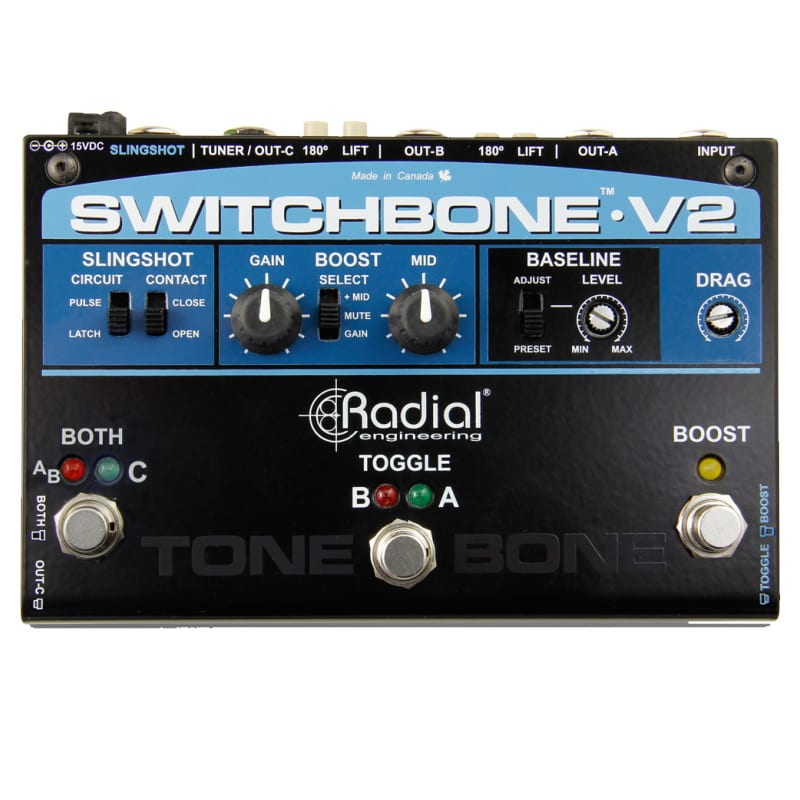

Radial Switchbone V2

Amp Selector & Boost Pedal

Description

The Switchbone V2™ gives you the ultimate control over your two or three-amp setup, with the ability to switch between amplifiers silently, eliminate buzz and hum, and activate a high-powered clean boost for soloing.

  • 100% discrete Class-A signal path for exceptional audio
  • Drag™ control load correction for natural tone
  • Opto-coupler for noiseless switching
  • Transformer isolated to eliminate buzz and hum

Control your amps, retain your tone

The Switchbone V2 may well be the ultimate guitar amp switcher. This device lets you switch and combine up to three guitar amplifiers without introducing distortion, switching noise, or hum into the signal path. Most importantly, it will retain the natural tone and feel of your instrument so that your natural playing style shines through. The Switchbone V2 may be used as a standard ABY switcher with both A and B outputs used separately or together, or the tuner output can be repurposed to feed the third amplifier. A built-in power booster at the output delivers up to +18db of ultra-clean boost with the option to add mid-boost for extra sustain when playing the lead.

Specifications
Audio circuit type:Discrete Class-A
Gain:Unity to +12dB (Baseline gain)
Input Impedance:Variable with drag control
Output Impedance:10k Ohm
Noise:-111dB
Features
180° polarity reverse, Ground lift, Boost
Input Connectors:1/4″ input
Output Connectors:4 1/4″ outputs
General
Construction:14-gauge steel chassis & outer shell
Size (L x W x D):6.62″ x 4.5″ x 2″ (168 x 114 x 51mm)
Weight:2.35lb (1.07kg)
Shipping size (L x W x D):10.75″ x 4.75″ x 2.5″ (273 x 120 x 64mm)
Shipping weight:3.35lbs (1.5kg)
Power:15VDC 400mA, center pole positive
Conditions:For use in dry locations only between 5°C and 40°C
Warranty:Radial 3-year, transferable
