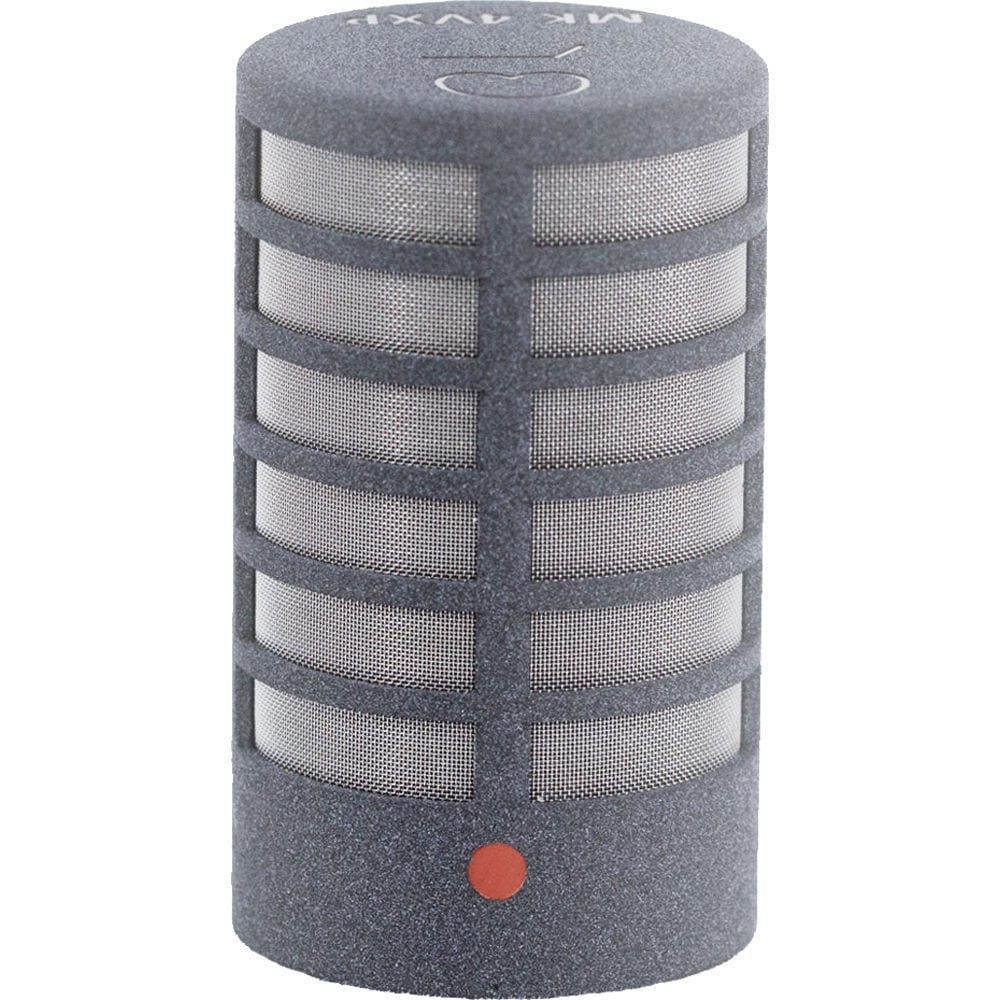

Schoeps MK 4VXP

Microphone capsule for close pickup

Description

This cardioid Schoeps MK 4VXP capsule is designed for the very closest speech pickup, i.e. directly in front of the speaker’s mouth.

Its low-frequency roll-off is compensated by the proximity effect. Thus it has (up to the point of its high-frequency emphasis) a flat frequency response for the speaker’s voice while showing a roll-off at low frequencies for all sound that originates from a greater distance. As a result, background sounds are picked up less strongly than the person speaking.

FEATURES

  • Cardioid, side-addressed for very close speech pickup (<10 cm)
  • Low-frequency response roll off (-10 dB at 100 Hz)
  • Polar diagram identical to the MK 4V
  • Preferred applications: close speech pickup, also available in the HSC 4VXP headset

TECHNICAL SPECIFICATIONS

Pickup pattern Cardioid
Frequency range  40 Hz – 19 kHz with CMC 6 / CMR,

40 Hz – 39 kHz with CMC 6xt

Sensitivity -38,5 dB (V/Pa), 12 mV/Pa with CMC 6
Equivalent noise level (A-weighted) 14 dB with CMC 6
Equivalent noise level (CCIR) 24 dB with CMC 6
Signal-to-noise ratio (A-weighted) 80 dB with CMC 6
Maximum sound pressure level (THD < 0.5 %) 133 dB-SPL with CMC 6
Length 34 mm
Diameter 20 mm
Weight 18 g
Surface finish matte gray
custom color:
nickel, chromagreen

VARIANTS & OPTIONS

No. 191102 custom color: nickel, chromagreen, other custom colors on request
No. 191201 custom engraving
